Left Side View
7
Part No.
MBSB80-225-43
8
- NEMA 1, Surface-Mount (UL Listed).
Enclosure
Box/Trim
- 12-Gauge painted steel, trim held with adjustable clamps; Door equiped
with one 3x5 directory cardholder and Corbin type 15767 Snaplock.
Finish
- Beige polyester powdercoat on all surfaces, treated with sealer.
- Cutler-Hammer thermal-magnetic type, 225A frame, 3-pole, trip settings as
Breakers
9
shown, supplied with (1) #4-4/0 terminal lug per phase.
Weight
- Approximately 190 lbs total.
10
NOTES
1) This drawing is for illustration purposes only and is subject to change without notice. TIC
is not responsible for any errors or omissions.
C
D
30.1"
Front View
UPS
UPS Output
Breaker
Voltage
KVA
Amp Rating
Type
150
180
FD
480/600
E
F
225 Amp M.L.O.
w/ (1) #6-250kcmil
Lug per Phase (typ)
225 Amp Box-
Mounted Neutral w/
(2) #6-250kcmil Lugs
0.5" Dia.
Mounting Hole (4)
kAIC rating at
480/600V
25/14
TOSHIBA
Drawn by
EO
Date 07/07/04
INTERNATIONAL CORPORATION
Approved by
Houston Texas, USA
JIS
Date 07/07/04
THIS MATERIAL IS THE EXCLUSIVE PROPERTY OF
TOSHIBA INTERNATIONAL CORPORATION AND SHALL NOT
BE REPRODUCED, USED, OR DISCLOSED TO OTHERS
UNLESS PRIOR WRITTEN AUTHORIZATION IS OBTAINED.
G
H
27.0"
Utility Feed
A
B
C
52C
UPS Bypass
Input Breaker
N
52M
Maintenance
Bypass Breaker
52L
UPS Output
Breaker
To Critical Load
Front View
(Door Removed)
Feed From Utility
B
A
C
52C
225AT
A
B
N
C
ST
52M
225AT
52L
225AT
A
B
C
A
B
C
Feed To Critical Load

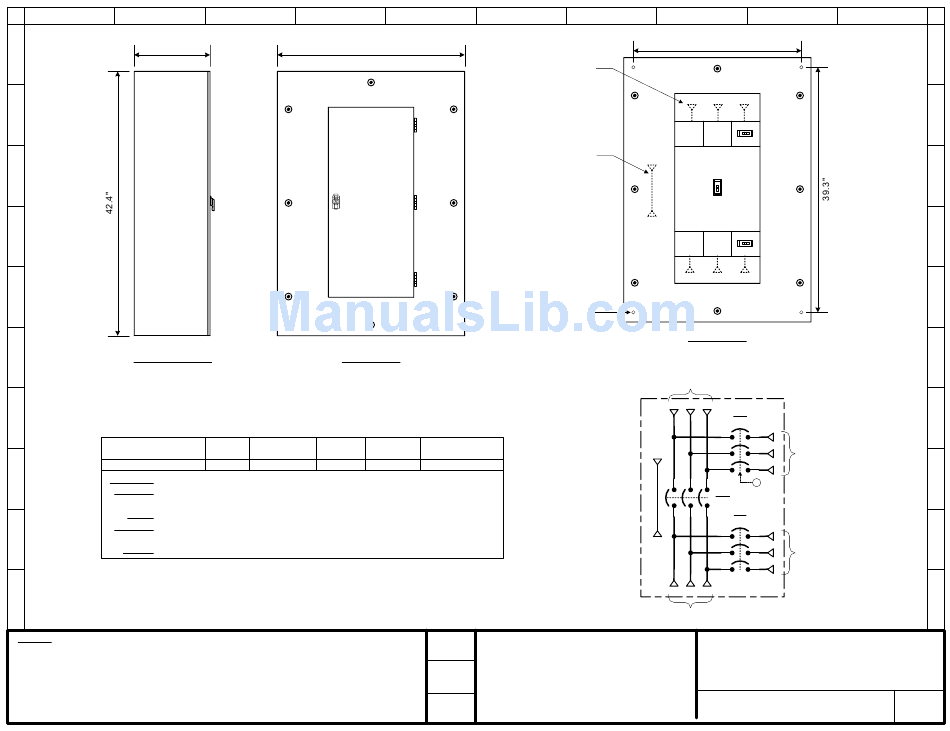

TITLE
150kVA G8000 Series UPS
3-Breaker Maintenance Bypass Panel
DRAWING NO.
MBSB80-225-43
I
J
1
2
3
4
5
6
7
Feed to
UPS
Input
8
Feed
9
from
UPS
Output
10
REV.
1.0
