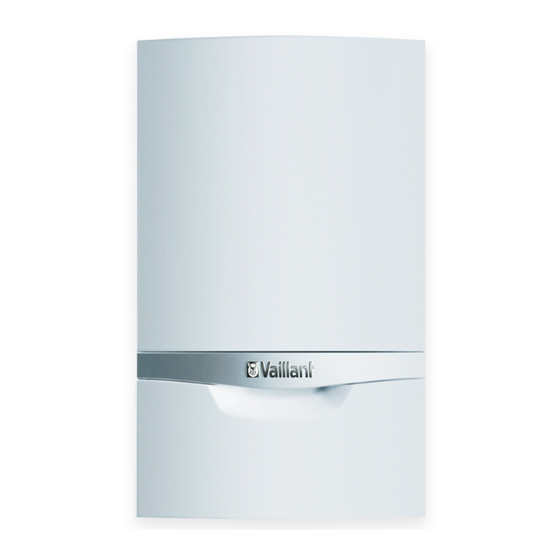

Installation manual
ecoTEC
ecoBLOCK
VC/VM/VU 466/4, VC/VM/VU 656/4
VC/VM/VU 806/5, VC/VM/VU 1006/5,
VC/VM/VU 1206/5
INT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ecoTEC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vaillant ecoTEC Series

Summary of Contents for Vaillant ecoTEC Series

  • Page 1 Installation manual ecoTEC ecoBLOCK VC/VM/VU 466/4, VC/VM/VU 656/4 VC/VM/VU 806/5, VC/VM/VU 1006/5, VC/VM/VU 1206/5...

  • Page 2: Table Of Contents

    PL - Wskazówki ..............8 PT - Indicações ..............9 Artikelnummern ohne Setangabe verweisen auf andere RS - Napomene ..............10 Vaillant Produkte. Bauteile ohne Artikelnummern müssen bauseits gestellt werden. RU - Указания ............... 10 Die Ziffern oben links in jeder Zeichnung geben die Reihenfolge der Arbeitsschritte an.

  • Page 3: Be Fr , Ch Fr , Fr - Consignes

    > Conformez-vous aux lois, normes et directives nationales Les références d‘articles sans référence à un kit renvoient à d‘autres produits Vaillant. Les composants sans référence et internationales en vigueur lors de l‘installation des d‘article sont des composants non fournis (à prévoir sur bâtis, des appareils de chauffage, régulateurs et du...

  • Page 4: Pokyny

    Alleen een erkend installateur mag de elektrische installatie Výrobní čísla bez uvedení sady odkazují na jiné výrobky uitvoeren. Vaillant. Součásti bez výrobních čísel musí být zajištěny ze > Neem alle veiligheidsvoorschriften in de strany stavby. installatiehandleidingen van componenten van de Číslice vlevo nahoře v obrázku udávají...

  • Page 5: Indicaciones

    > Monte en la instalación los dispositivos de seguridad Las referencias de los artículos sin indicación del número de juego aluden a otros productos de Vaillant. Los necesarios. > Informe al usuario sobre cuál es la función y en qué...

  • Page 6: Information

    Brojevi artikla bez podatka o kompletu ukazuju na neke > Observe all safety information in the installation druge Vaillant proizvode. Sastavne dijelove bez brojeva instructions for components of the heating installation. artikla mora nabaviti kupac. > Switch off the power supply before commencing the Znamenke gore lijevo na svakom crtežu navode redoslijed...

  • Page 7: Útmutatók

    > Mindig vegye figyelembe a készülékekhez melléklet Az olyan cikkszámok, amikhez nincs megadva készlet szerelési előírásokat és utasításokat. cikkszám, egyéb Vaillant termékekre utalnak. A cikkszám , IT - Avvertenze nélküli alkatrészeket épületoldalról kell biztosítani. Az ábrák bal felső sarkában található számok a Queste istruzioni mostrano il montaggio e l‘installazione di...

  • Page 8: Wskazówki

    I numeri di articolo senza indicazione del kit si riferiscono PL - Wskazówki ad altri prodotti Vaillant. Le parti senza numero di articolo vanno ordinate in loco. Niniejsza instrukcja opisuje montaż i instalację układów Le cifre in alto a sinistra di ogni disegno indicano l‘ordine kaskadowych urządzeń...

  • Page 9: Indicações

    > Respeite igualmente as prescrições e indicações de Os números de artigo sem indicação do jogo referem-se a outros produtos Vaillant. Os componentes sem número de instalação fornecidas juntamente com os aparelhos. artigo têm de ser disponibilizados pelo cliente.

  • Page 10: Rs - Napomene

    Brojevi artikla bez podataka o kompletu ukazuju na druge VU OE 1006/5-5 или VU OE 1206/5-5. Числовые данные на следующих чертежах представляют собой Vaillant proizvode. Delovi bez brojeva artikla moraju se артикулы компонентов. Числа в квадратных скобках указывают staviti na raspolaganje na objektu.

  • Page 11: Navodila

    Tento návod predstavuje montáž a inštaláciu kaskád s Številke artiklov brez navedene strani se nanašajo na druge vykurovacími zariadeniami ecoTEC plus VU INT 466/4-5, izdelke Vaillant. Sestavne dele brez številk artiklov je VU INT 656/4-5, VU INT 806/5-5, VU INT 1006/5-5 alebo potrebno namestiti na mestu vgradnje.

  • Page 12: Tr - Notlar

    Čísla výrobkov bez údajov o súprave poukazujú na iné Bu kılavuz ecoTEC plus VU TR 466/4-5, VU TR 656/4-5, výrobky Vaillant. Konštrukčné diely bez čísiel výrobkov sa VU TR 806/5-5, VU TR 1006/5-5 veya VU TR 1206/5-5 ısıtıcı musia prichystať zo strany stavebníka.

  • Page 13: Ua - Вказівки

    комплекті 1. постачаються разом з приладами. Артикульні номери, для яких не вказаний комплект, позначають інші вироби Vaillant. Деталі без артикульних номерів надаються замовником на місці встановлення. Цифри, вказані вгорі зліва на кожному кресленні, позначають послідовність етапів робіт. Додана буква, наприклад, „a“ - позначає...
  • Page 14 0020149478_05...
  • Page 15 1210 1210 H [mm] J [mm] D [mm] Ø 130 Ø 160 Ø 200 Ø 250 Ø 130 Ø 160 Ø 200 Ø 250 1284 ~ 2112 ~ 2129 1864 ~ 2133 ~ 2152 ~ 2174 2444 ~ 2158 ~ 2197 ~ 2222 3024 ~ 2246 3604 ~ 2268 A [mm] B [mm] C [mm] 0020137070 0020137071 0020137072 0020137073 0020137074 L [mm] 0020149478_05...
  • Page 16 0020149478_05...
  • Page 17 1333 1333 52,4 52,4 1210 1210 H [mm] J [mm] D [mm] Ø 130 Ø 160 Ø 200 Ø 250 Ø 130 Ø 160 Ø 200 Ø 250 1284 ~ 2112 ~ 2129 1864 ~ 2133 ~ 2152 ~ 2174 2444 ~ 2158 ~ 2197 ~ 2222 3024 ~ 2246 3604 ~ 2268 A [mm] B [mm] C [mm] 0020137070 0020137071 0020137072 0020137073 0020137074 L [mm] 0020149478_05...
  • Page 18 0020149478_05...
  • Page 19 400,5 164,9 (480) H [mm] J [mm] K [mm] X / Y D [mm] E [mm] F [mm] G [mm] Ø 130 Ø 200 Ø 250 Ø 130 Ø 200 Ø 250 Ø 130 Ø 200 Ø 250 2148 2459 2313 2792 ~2257 ~2292 ~2317 2727 3039 2313 2792 ~2347 3307 3619 2313 2792 ~2377 2148 2459 2891 3371...
  • Page 20 0020149478_05...
  • Page 21 400,5 164,9 (480) H [mm] J [mm] K [mm] X / Y D [mm] E [mm] F [mm] G [mm] Ø 130 Ø 200 Ø 250 Ø 130 Ø 200 Ø 250 Ø 130 Ø 200 Ø 250 2148 2459 2580 3060 ~2244 ~2279 ~2304 2727 3039 2580 3060 ~2325 3307 3619 2580 3060 ~2356 2148 2459 3160 3640...
  • Page 22 1, ¬ 4, ¬ 2, ¬ 5, ¬ ..3, ¬ 6, ¬ 0020149478_05...
  • Page 23 .... 7, ¬ 10, ¬ .... 8, ¬ 11, ¬ 9, ¬ 0020149478_05...
  • Page 24 1.1a 1.1b 0020140011 [1] 0020140011 [1] M8 x 75 M8 x 75 0020139991 [11] 071935 [11] 0020139991 [11] 071935 [11] 80 - 120 kW 80 - 120 kW 1.2a 1.2b 0020139988 [9] 0020140011 [9] 0020139999 [10] 0020140011 [10] 0020140000 [10] M8 x 75 M8 x 75 0020139989 [9]...
  • Page 25 1.2c 45 - 65 kW 1.2d 45 - 65 kW 0020139988 [9] 0020140011 [9] 0020139999 [10] 0020140011 [10] M8 x 75 M8 x 75 0020140000 [10] 0020139989 [9] 0020139991 [11] 0020139991 [11] 1.3a 1.3b 0020141317 [1/9/10] 0020141317 [1/9] M8 x 65 M8 x 65 80 - 120 kW 80 - 120 kW...
  • Page 26 1.4c 45- 65 kW 1.4d 45 - 65 kW 1 x 2 x M8x65 M8 x 65 2 x 2 x M8x65 M8 x 65 1.5a 1.5b 0020139994 [9] 0020140001 [10] 0020149478_05...
  • Page 27 1.7a 1.7b 1.8a 1.8b 1.8c 0020149478_05...
  • Page 28 VC/VM/VU 80 - 120 kW 0020138349 0020106070 0020106060 0020106189 VC/VM/VU 80 - 120 kW 1.10 80 - 120 kW 45 - 65 kW 1.11a 1.11b 0020106418 303960 0020149478_05...
  • Page 29 2.1a 2.1b 0020140011 [1] 0020140011 [1] 0020139991 [11] M8 x 75 M8 x 75 DN65: 0020140010 [12] DN65: 0020140010 [12] DN100: 0020139990 [13] 071935 [11] DN100: 0020139990 [13] 071935 [11] 0020149478_05...
  • Page 30 2.2a 80 - 120 kW 2.2b 80 - 120 kW 0020139988 [9] 0020139999 [10] M8 x 75 M8 x 75 0020139991 [11] 0020139991 [11] 0020139989 [9] 0020140000 [10] DN65: 0020140010 [14] DN65: 0020140010 [16] DN100: 0020139990 [15] DN100: 0020139990 [17] 0020140011 [9] 0020140011 [10] 45 - 65 kW...
  • Page 31 2.3c 45 - 65 kW 2.3d 45 - 65 kW 0020139988 [9] 0020139999 [10] M8 x 75 M8 x 75 0020139991 [11] 0020139991 [11] 0020139989 [9] 0020140000 [10] DN65: 0020140010 [14] DN65: 0020140010 [16] DN100: 0020139990 [15] 0020140011 [9] DN100: 0020139990 [17] 0020140011 [10] 2.4a 2.4b...
  • Page 32 2.5a 2.5b 0020139994 [9] 0020140001 [10] 2.5c 2.5d 0020139994 [9] 0020140001 [10] 2.6a 2.6b 0020139992 [86] 0020139992 [86] 0020149478_05...
  • Page 33 2.6c ST4,2[86] 2.7a 2.7b DN65: 0020151873 [12] DN65: 0020151873 [12] DN100: 0020151875 [13] DN100: 0020151875 [13] 0020012770 [12/13] DN65: M12 x 70 DN65: M12 x 70 DN100: M16 x 70 DN100: M16 x 70 DN65: 0020140035 [12] DN65: 0020160343 [134] DN100: 0020139995 [13] DN100: 0020160344 [135] 2.7c...
  • Page 34 2.7e 2.7f DN100: 0020141170 [32] DN100: 0020151875 [32] DN100: 0020151875 [17] DN100: 0020140003 [17] 2.8a 2.8b DN65: 0020151873 [14] DN100: 0020151875 [15] DN65: 0020151873 [16] DN100: 0020151875 [17] DN65: 0020139982 [14] DN65: 0020140005 [16] DN100: 0020139974 [15] DN100: 0020140003 [17] DN100: 0020151875 [17] DN100: 0020140003 [17] 0020149478_05...
  • Page 35 2.10 DN100: 0020151875 [13] 0020012770 [13] DN100: 0020139995 [13] 80 - 120 45 - 65 2.11a 2.11b M8 x 65 2 x 6 x M8x65 2 x 2 x M8x65 M8 x 65 2.12 0020149478_05...
  • Page 36 2.13a 2.13b 2.13c 0020149478_05...
  • Page 37 3.1a 3.1b DN65: M12 x 70 DN50: 0020151872 [35] DN50: 0020151872 [35] DN100: M16 x 70 DN80: 0020151874 [38] DN80: 0020151874 [38] DN50 DE: 0020140031 [124] DN50 DE: 0020140030 [125] DN80 DE: 0020139977 [126] DN80 DE: 0020139980 [127] DN50: 0020153178 [33] DN50: 0020153173 [34] DN50: 0020140045 [35] DN50: 0020140045 [35]...
  • Page 38 3.2a 3.2b DN50 DE: 0020151872 [124] DN50 DE: 0020151872 [125] DN80 DE: 0020151874 [126] DN80 DE: 0020151874 [127] DN50: 0020151872 [33] DN50: 0020151872 [34] DN80: 0020151874 [36] DN80: 0020151874 [37] DN50 DE: 0020140031 [124] DN50 DE: 0020140030 [125] DN80 DE: 0020139977 [126] DN80 DE: 0020139980 [127] DN50: 0020153178 [33] DN50: 0020153173 [34]...
  • Page 39 3.5a 3.5b 3.5c 3.5d 3.5e 3.5f 0020149478_05...
  • Page 40 4.1a 4.1b 80/100/120kW: 0020151892 [43] 80/100/120kW: 0020159162 [40] 45kW: 0020140027 [44] 45kW: 0020159160 [41] 65kW: 0020139997 [45] 65kW: 0020139998 [42] 0020160335 [43] 0020160337 [44/45] 0020151893 [43/44/45] 4.1c 80/100/120kW: 0020160275 [128] 45kW: 0020160276 [129] 65kW: 0020160277 [130] 0020149478_05...
  • Page 41 4.2a 4.2b 80/100/120kW: 0020140028 [49] 45kW: 0020159161 [50] 65kW: 0020153253 [51] 0020151893 [49/50/51] 0020151891 [49/50/51] 4.2c 4.2d 80/100/120kW: 0020140024 [46] 80/100/120kW: 0020160278 [131] 45kW: 0020153080 [47] 45kW: 0020160279 [132] 65kW: 0020140029 [48] 65kW: 0020160280 [133] 0020151959 0020151959 [46/47/48/131/132/133] [46/47/48/131/132/133] 0020160336 0020160336 [46/47/48/131/132/133] [46/47/48/131/132/133]...
  • Page 42 0020149478_05...
  • Page 43 0020149478_05...
  • Page 44 VC/VM/VU 80 - 120 kW 0020138349 0020106070 0020106060 0020106189 230V eBUS 0020149478_05...
  • Page 45 VC/VM/VU 80 - 120 kW VC/VM/VU 45 - 65 kW 5.3a 5.3b 0020106418 303960 0020149478_05...
  • Page 46 ..6.1a 6.1b DN65: 0020151873 [12/134] DN100: 0020151875 [13/135] DN65: 0020151873 [14] DN65: M12 x 70 DN100: 0020151875 [15] DN100: M16 x 70 DN65: 0020140036 [12/134] DN65: 0020139983 [14] DN100: 0020139996 [13/135] DN100: 0020139971 [15] 6.1c DN65: 0020151873 [16] DN100: 0020151875 [17] DN65: 0020140004 [16] DN100: 0020140002 [17]...
  • Page 47 6.2a 6.2b DN65: 0020151873 [14] DN65: 0020151873 [16] DN100: 0020151875 [15] DN100: 0020151875 [17] DN65: 0020139983 [14] DN65: 0020140004 [16] DN100: 0020139971 [15] DN100: 0020140002 [17] DN100: 0020141170 [32] DN100: 0020151875 [17] DN100: 0020151875 [17] DN100: 0020140002 [17] 0020149478_05...
  • Page 48 DN100: 0020151875 [13] DN100: 0020139996 [13] 0020149478_05...
  • Page 49 ..7.1a 7.1b 7.1c 7.1d 0020149478_05...
  • Page 50 7.3a 7.3b 7.3c 7.3d 0020149478_05...
  • Page 51 7.4a 7.4b 7.4c 7.5a 7.5b 0020149478_05...
  • Page 52 7.5c 7.5d 7.6a 7.6b 7.6c 0020149478_05...
  • Page 53 ..0020059560 [58] 0020112159 [57] 8.2a 8.2b 0020151878 [14/15] 0020151878 [16/17] 0020151882 [14/15] 0020151882 [16/17] 0020160274 [14/15] 0020151877 [14/15] 0020160274 [16/17] 0020151877 [16/17] 0020149478_05...
  • Page 54 8.2c 8.2d 0020151881 0020151881 [21/22/23/27/28/29] [21/22/23/27/28/29] 0020140043 0020140043 [21/22/23/27/28/29] [21/22/23/27/28/29] 0020151877 [18/19/20/24/25/26] 80-120kW: 0020139984 [18] 45kW: 0020140055 [19] 65kW: 0020140051 [20] 80-120kW IT: 0020140048 [24] 45kW IT: 0020141322 [25] 65kW IT: 0020141318 [26] 0020151877 [18/19/20/24/25/26] 80-120kW: 0020139985 [18] 45kW: 0020140056 [19] 65kW: 0020140052 [20] 80-120kW IT: 0020140049 [24] 45kW IT: 0020141323 [25]...
  • Page 55 0020151877 [21/22/23/27/28/29] 80-120kW: 0020140019 [21] 45kW: 0020140057 [22] 65kW: 0020140053 [23] 80-120kW IT: 0020140047 [27] 45kW IT: 0020141324 [28] 65kW IT: 0020141320 [29] 0020151877 [21/22/23/27/28/29] 80-120kW: 0020140014 [21] 45kW: 0020140058 [22] 65kW: 0020140054 [23] 80-120kW IT: 0020140050 [27] 45kW IT: 0020141325 [28] 65kW IT: 0020141321 [29] 0020149478_05...
  • Page 56 9.1a 9.1b DN65: 0020140026 [69] DN65: 0020151873 [69] DN65: 0020140022 [71] DN65: 0020151873 [71] DN100: 0020140041 [70] DN100: 0020151875 [70] DN100: 0020140017 [72] DN100: 0020151875 [72] DN65: 0020151873 [71] DN65: 0020151873 [69] DN80: 0020151874 [72] DN80: 0020151874 [70] 0020137070 [64] 0020137070 [64] 0020137071 [65] 0020137071 [65]...
  • Page 57 ..10.1 0020140039 [61] M8 x 65 [61] 10.2 0020149478_05...
  • Page 58 10.3 0020175220 [61] 10.4a 10.4b 0020140038 [61] 0020140015 [61] 0020140015 [61] 0020140040 [61] 0020151894 [61] 0020140038 [61] 10.5 45 kW Ø130 65 kW Ø160 80 kW Ø200 120 kw Ø250 0020149478_05...
  • Page 59 10.6a 10.6b Ø160: 0020106412 Ø160: 0020106413 Ø200: 0020106428 Ø200: 0020106429 Ø250: 0020106553 Ø250: 0020106554 VC/VM/VU 80 - 120 kW VC/VM/VU 80 - 120 kW 10.7a 10.7b Ø160: 0020106414 Ø160: 0020106415 Ø200: 0020106430 Ø200: 0020106431 Ø250: 0020106555 Ø250: 0020106556 VC/VM/VU 80 - 120 kW VC/VM/VU 80 - 120 kW 10.8a 10.8b...
  • Page 60 10.8c Ø130: 0020042909 VC/VM/VU 45 - 65 kW 10.9 10.10 [61] [61] 0020149478_05...
  • Page 61 10.11 0020149478_05...
  • Page 62 ..11.1a 11.1b 0020141331 [73] 0020141331 [73] 11.1c 0020141331 [73] 0020149478_05...
  • Page 63 11.2a 11.2b 0020141332 [73] 0020141332 [73] 11.2c 0020141332 [73] 11.3a 11.3b 0020141329 [73] 0020141336 [76] 0020149478_05...
  • Page 64 11.3c 0020141329 [73] 11.4a 11.4b 0020141337 [73] 0020141337 [73] 0020141338 [73] 0020141338 [73] 11.5 0020109883 0020149478_05...
  • Page 65 11.6 0020141339 [73] 11.7a 11.7b 0020140059 [74] 0020140012 [74] 0020141328 [73] 0020140032 [74] 11.7c 11.7d 0020141333 [76] 0020141328 [73] 0020149478_05...
  • Page 66 11.7e 0020140059 [74] 0020140012 [74] 0020140032 [74] 11.8 11.9a 11.9b DN 100 0020141327 [75] 0020141330 [74] 0020141326 [75] 0020149478_05...
  • Page 67 11.9c 0020141327 [75] 0020141326 [75] 0020149478_05...
