CCTV | How to Demo FlexiDome
CCTV | How to demo Dinion HD 1080p and FlexiDome HD 1080p cameras
DN
IP Cameras

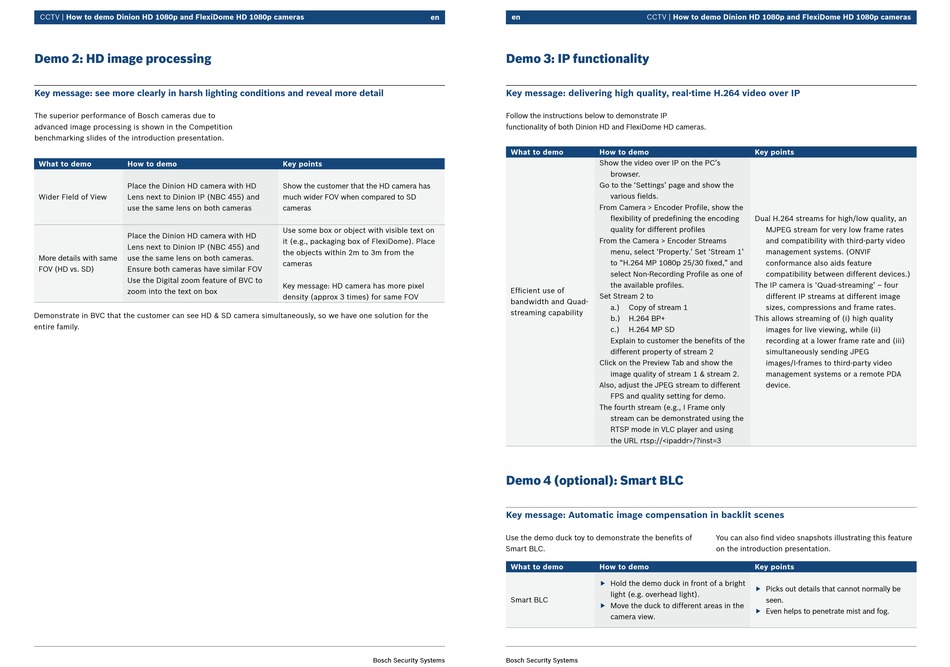

Demo 2: HD image processing
Key message: see more clearly in harsh lighting conditions and reveal more detail
The superior performance of Bosch cameras due to
advanced image processing is shown in the Competition
benchmarking slides of the introduction presentation.
What to demo
How to demo
Place the Dinion HD camera with HD
Wider Field of View
Lens next to Dinion IP (NBC 455) and
use the same lens on both cameras
Place the Dinion HD camera with HD
Lens next to Dinion IP (NBC 455) and
More details with same
use the same lens on both cameras.
FOV (HD vs. SD)
Ensure both cameras have similar FOV
Use the Digital zoom feature of BVC to
zoom into the text on box
Demonstrate in BVC that the customer can see HD & SD camera simultaneously, so we have one solution for the
entire family.
en
en
Key points
Show the customer that the HD camera has
much wider FOV when compared to SD
cameras
Use some box or object with visible text on
it (e.g., packaging box of FlexiDome). Place
the objects within 2m to 3m from the
cameras
Key message: HD camera has more pixel
density (approx 3 times) for same FOV
Bosch Security Systems
Bosch Security Systems
en
en
CCTV | How to demo Dinion HD 1080p and FlexiDome HD 1080p cameras
Demo 3: IP functionality
Key message: delivering high quality, real-time H.264 video over IP
Follow the instructions below to demonstrate IP
functionality of both Dinion HD and FlexiDome HD cameras.
What to demo
How to demo
Show the video over IP on the PC's
browser.
Go to the 'Settings' page and show the
various fields.
From Camera > Encoder Profile, show the
flexibility of predefining the encoding
quality for different profiles
From the Camera > Encoder Streams
menu, select 'Property.' Set 'Stream 1'
to "H.264 MP 1080p 25/30 fixed," and
select Non-Recording Profile as one of
the available profiles.
Efficient use of
Set Stream 2 to
bandwidth and Quad-
a.)
Copy of stream 1
streaming capability
b.)
H.264 BP+
c.)
H.264 MP SD
Explain to customer the benefits of the
different property of stream 2
Click on the Preview Tab and show the
image quality of stream 1 & stream 2.
Also, adjust the JPEG stream to different
FPS and quality setting for demo.
The fourth stream (e.g., I Frame only
stream can be demonstrated using the
RTSP mode in VLC player and using
the URL rtsp://<ipaddr>/?inst=3
Demo 4 (optional): Smart BLC
Key message: Automatic image compensation in backlit scenes
Use the demo duck toy to demonstrate the benefits of
Smart BLC.
What to demo
How to demo
Hold the demo duck in front of a bright
light (e.g. overhead light).
Smart BLC
Move the duck to different areas in the
camera view.
Bosch Security Systems
Bosch Security Systems
CCTV | How to Demo FlexiDome
DN
IP Cameras
Key points
Dual H.264 streams for high/low quality, an
MJPEG stream for very low frame rates
and compatibility with third-party video
management systems. (ONVIF
conformance also aids feature
compatibility between different devices.)
The IP camera is 'Quad-streaming' – four
different IP streams at different image
sizes, compressions and frame rates.
This allows streaming of (i) high quality
images for live viewing, while (ii)
recording at a lower frame rate and (iii)
simultaneously sending JPEG
images/I-frames to third-party video
management systems or a remote PDA
device.
You can also find video snapshots illustrating this feature
on the introduction presentation.
Key points
Picks out details that cannot normally be
seen.
Even helps to penetrate mist and fog.
