QUICK REFERENCE GUIDE
2
1
10
9

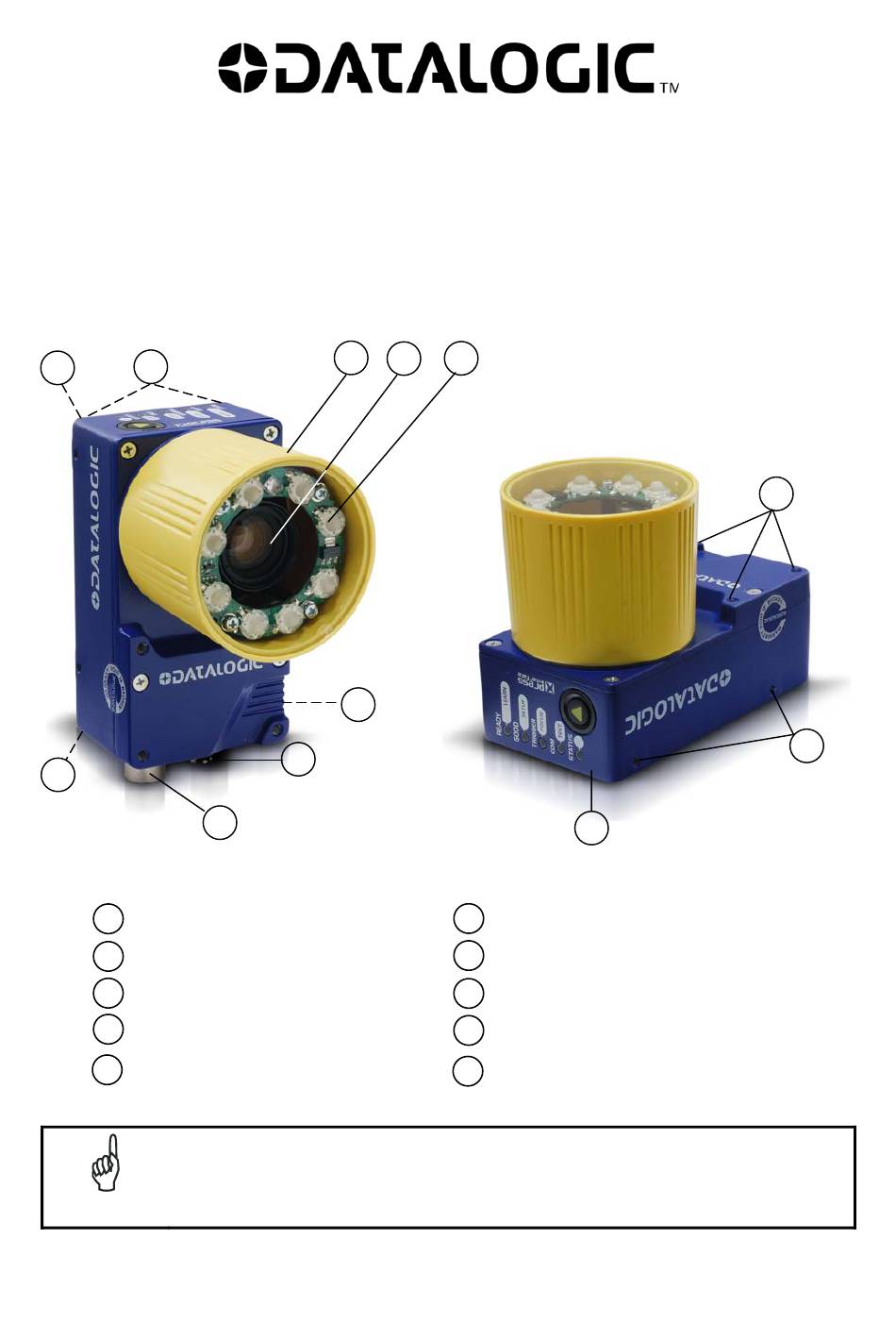

Device Class Label
1
2
Mounting Holes (12)
Lens Cover
3
Lens
4
(separate accessory)
Internal Illuminator
5
This manual illustrates a Stand Alone application. For other types of installations, such as
ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete reader configuration using
the VisiSet™ configuration program, refer to the Matrix 410™ Reference Manual available on the
CD and also downloadable from the Web at www.automation.datalogic.com.
NOTE
Matrix 410™
3
4
7
8
Figure A
(separate accessory)
821001830
5
6
HMI X-PRESS™ Interface
6
"POWER ON" LED
7
Power - Serial Interfaces - I/O Connector
8
Ethernet Connector
9
Ethernet Connection LED
10
(Ethernet Models Only)
2
2
(Ethernet Models Only)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Matrix 410 and is the answer not in the manual?

Questions and answers

Related Manuals for Datalogic Matrix 410

Summary of Contents for Datalogic Matrix 410

  • Page 1 This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Pass-Through, Multiplexer Layout, etc. and for a complete reader configuration using the VisiSet™ configuration program, refer to the Matrix 410™ Reference Manual available on the CD and also downloadable from the Web at www.automation.datalogic.com.

  • Page 2: Services And Support

    - Material Return Authorization LEGAL NOTICES © 2007 – 2010 Datalogic Automation S.r.l.  ALL RIGHTS RESERVED.  Protected to the fullest extent under U.S. and international laws. Copying, or altering of this document is prohibited without express written consent from Datalogic Automation S.r.l.

  • Page 3: Step 1 - Assemble The Reader

    STEP 1 – ASSEMBLE THE READER The first step to perform is to assemble the accessories that make up the Matrix 410™ reader. The lens and either an internal or an external illuminator must be used. This procedure shows an internal illuminator.

  • Page 4: Step 2 - Connect The System

    MATRIX 410™ QUICK GUIDE REQUIRED ACCESSORIES The following table shows the correct lens/illuminator combinations to be used for Matrix 410™ imager assembly. Lenses Internal Illuminators 93ACC1793 LNS-1006 6 mm C-Mount Lens 93A401020 LT-002 Red Wide Angle (only for Matrix 410 600-0x0 models)
  • Page 5 19-pin Connector Pinout for Matrix 410™ The table below gives the pinout of the 19-pin M16 male connector for connection to the power supply and input/output signals. Use this pinout when the Matrix 410™ reader is connected by means of the 19-pin connector:...

  • Page 6: Step 3 - Mount And Position The Reader

    STEP 3 – MOUNT AND POSITION THE READER To mount the Matrix 410™, use the mounting brackets to obtain the most suitable position for the reader. Two of the most common mounting configurations are shown in the figures below. Other mounting solutions are provided in the Matrix 410™...

  • Page 7: Step 4 - Focus The Reader

    MATRIX 410™ QUICK GUIDE STEP 4 – FOCUS THE READER Matrix 410™ provides a built-in tool called Blue Diamonds™ to aid focusing the reader. The Blue Diamonds™ are accessed through the X-PRESS™ Interface. Remove the lens cover in order to focus the reader.

  • Page 8: Step 5 - Calibrate Image Density

    MATRIX 410™ QUICK GUIDE STEP 5 – CALIBRATE IMAGE DENSITY In order to function correctly to the fullest extent of its capabilities, Matrix 410™ must acquire information regarding image density or PPI (pixels per inch). This calibration takes place through the X-PRESS™ Interface and the Grade A Barcode Test Chart included in the package.

  • Page 9: Step 6 - X-Press™ Configuration

    MATRIX 410™ QUICK GUIDE STEP 6 – X-PRESS™ CONFIGURATION Once Matrix 410™ has calibrated image density, you can configure it for optimal code reading relative to your application. This configuration can be performed either through the X-PRESS™ Interface or the VisiSet™...

  • Page 10: Step 7 - Installing Visiset™ Configuration Program

    "Default Set" is shown on the display. STEP 7 – INSTALLING VISISET™ CONFIGURATION PROGRAM ™ VisiSet is a Datalogic reader configuration tool providing several important advantages:  Setup Wizard for rapid configuration and new users;  Defined configuration directly stored in the reader;...

  • Page 11: Step 8 - Configuration Using Setup Wizard

    MATRIX 410™ QUICK GUIDE Figure 16 - VisiSet™ Main Window After Connection STEP 8 – CONFIGURATION USING SETUP WIZARD The Setup Wizard option is advised for rapid configuration or for new users. It allows reader configuration in a few easy steps.
  • Page 12 MATRIX 410™ QUICK GUIDE Press the "Positioning" button. The reader continuously acquires images and gives visual feedback in the view image window. Select the largest code from the chart that completely fits into the view image window. Move the reader (or code) to center it. The code must be aligned across the X-axis reference line at the center of the FOV.
  • Page 13 MATRIX 410™ QUICK GUIDE Press the "Fine Focusing" button to activate the Fine Focusing Tool. The reader continuously acquires images and gives visual feedback on the focusing quality in the Focusing Tool window. Rotate the Focusing ring on the lens. The Current Focus Quality Bar (green) together with the vertical optimal focus line (green) increase together until the optimal focus is reached;...
  • Page 14 MATRIX 410™ QUICK GUIDE Rotate the Focusing ring in the opposite direction. The Current Focus Quality Bar (green) increases towards the vertical optimal focus line (green) until the optimal focus is reached; the Current Focus Quality Bar touches the vertical optimal focus line (indicating the best focus).
  • Page 15 MATRIX 410™ QUICK GUIDE Place the application specific code in front of the reader at the same reading distance and repeat steps 3, 4, and 6. Setup Result Select a Saving Options choice and press the "Save" button. Close the Setup Wizard.

  • Page 16: Step 9 - Test Mode

    MATRIX 410™ QUICK GUIDE STEP 9 – TEST MODE Use a code suitable to your application to test the reading performance of the system. Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.

  • Page 17: Advanced Reader Configuration

    Procedure Using Programming Barcodes" printable from the CD-ROM. CODE QUALITY VERIFICATION Matrix 410™ can be used as a Code Quality Verifier according to the ISO/IEC 15415, ISO/IEC 15416, AS9132, and AIM DPM Standards. For more details see the Matrix 410™ Code Quality Verifier Solution manual on the...
  • Page 18 MATRIX 410™ QUICK GUIDE APPENDIX X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance. Status and diagnostic information are clearly presented by means of the five colored LEDs, whereas the single push button gives immediate access to the following relevant functions: ...
  • Page 19 Figure 20 – Reading Distance References Example: The FOV for a Matrix 410 600-0x0 base using the 16 mm lens at a focus distance of 200 mm is: = 2 [(200 mm + 35 mm) tan (24°/2)] = 100 mm...
  • Page 20 MATRIX 410™ QUICK GUIDE TECHNICAL FEATURES ELECTRICAL FEATURES Power Supply Voltage 10 to 30 Vdc Consumption 0.8 to 0.27 A, 8 W max.; 0.5 to 0.17 A, 5 W typical Communication Interfaces Main - RS232 2400 to 115200 bit/s - RS485 full-duplex...
  • Page 21 MATRIX 410™ QUICK GUIDE SOFTWARE FEATURES Readable Code Symbologies 1-D and stacked POSTAL  PDF417 Standard and Micro  Data Matrix ECC 200  Australia Post  Royal Mail 4 State Customer PDF417 (Standard, GS1 and Direct Marking)  Code 128 (EAN 128) ...
  • Page 22 MATRIX 410™ QUICK GUIDE MECHANICAL DIMENSIONS [2.38] [0.71] 41.5 [1.63] [3.41] [in] Ø65 [Ø2.54] Figure 21 – Matrix 410™ Overall Dimensions [2.40] [1.97] 12.5 12.5 [0.49] [0.49] [0.17] [0.12] [1.57] [in] [0.17] [0.17] [0.28] [0.16] N°7 Figure 22 – Mounting Brackets Overall Dimensions...
  • Page 23 FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
  • Page 24 MATRIX 410™ QUICK GUIDE SERIAL NUMBER REFERENCES Place the replicate, lens, illuminator and filter serial number labels here for reference. Some of this information can also be written in the Reader Information configuration parameters in the Miscellaneous folder in VisiSet™.
