Summary of Contents for Philips VR420CAT

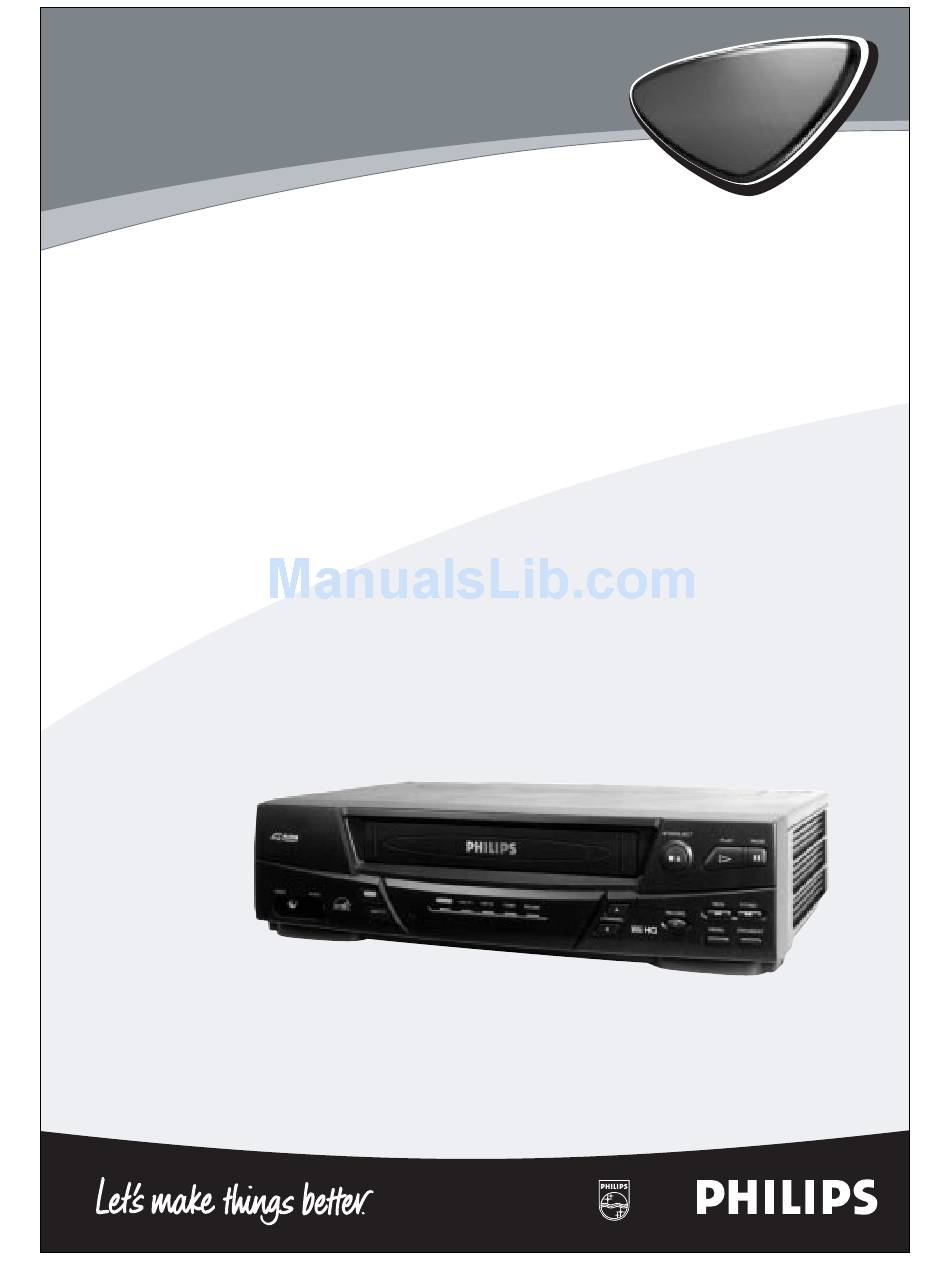

- Page 1 VR420CAT Video Cassette Recorder Owner’s Manual...
- Page 2 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS product. So complete and return the Warranty Registration Card enclosed with your purchase at once.
-
Page 3: Introduction 3
This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording; Playing; Additional Features; and Information You May Need. The instructions explain all of the VCR’s fea- tures, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax. Features •... -
Page 4: Table Of Contents
Before Using Your VCR ........ -
Page 5: Before Using Your Vcr 5
Remove batteries when the unit will not be used for a long time. Using the Remote Control Point the remote control at the VCR, then press the VCR but- ton, before using the remote control to operate the VCR. Point the remote control at the TV, then press the TV button before using the remote control to operate the TV. -
Page 6: Hookups Without A Cable Box/Direct Broadcast System
Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR. Disconnect the antenna or cable from your TV. - Page 7 Connect the supplied black RF coaxial cable to the OUT Jack on the back of the VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on type (supplied) or screw-on type of coaxial cable, whichever you prefer.)
-
Page 8: Hookups With A Cable Box/Direct Broadcast System
You may not program channels at the VCR. You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch on the back of the VCR to the same channel. -
Page 9: Hookups With A Cable Box/Direct Broadcast System
Connect a Cable signal to the VCR’s ANT(enna) IN Jack. Use the supplied black RF coaxial cable to connect the OUT Jack on the VCR to the IN Jack on the Cable Box/DBS. Use a second RF coaxial cable to connect the OUT Jack on the Cable Box/DBS to the ANTENNA IN Jack on the TV. -
Page 10: Hookups With A Stereo Tv
VCR. Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV. Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. -
Page 11: Turning On Your Vcr 11
You can not program channels if you are using a Cable Box or a Direct Broadcast System. Press the VCR button, then press the POWER button. The VCR/TV light and the POWER light will appear on the VCR display panel. Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCR. -
Page 12: Automatic Channel Setup
PLEASE WAIT START FINISH Wait for a few minutes while the VCR sets up the chan- nels. When this is complete, CHANNELS ARE SET will appear on the screen. Then the programming of the lowest channel number placed in the VCR’s memory will appear on the screen. Now when you press the CH(annel) o/p buttons, you will scan only through channels you receive. -
Page 13: Adding/Deleting Channels
If your channel lineup changes, you may want to add newly avail- able channels or remove channels that are no longer available in your area. To add or delete channels from the VCR’s memory, follow these steps. Press the VCR button, then press the MENU button. -
Page 14: Automatic Channel Setup
14 Automatic Channel Setup (cont’d) Reviewing Memorized Channels Press the VCR button, then press the MENU button. SELECT op CHOOSE B PROGRAM VCR SET UP TUNER SET UP SET CLOCK TO END PUSH EXIT Press the PLAY/o button or the STOP/p button to select TUNER SET UP, then press the F.FWD/B button. -
Page 15: Setting The Clock 15
Follow the steps below to set your VCR’s clock. Make sure: The VCR is on and the VCR/TV light appears on the display panel. (If it does not, press the VCR/TV button once.) You make each entry within 60 seconds of the previous entry. -
Page 16: Daylight-Savings Time
16 Daylight-Savings Time You may program the VCR so its clock will automatically move forward one hour in April and turn back one hour in October. Daylight-Savings Time is ON when you receive your VCR. Turn Daylight-Savings Time ON or OFF by following the steps below. -
Page 17: Language Selection 17
Follow the steps below to change the language of the on-screen displays and menus. Press the VCR button, then press the MENU button. SELECT op CHOOSE B PROGRAM VCR SET UP TUNER SET UP SET CLOCK TO END PUSH EXIT Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button. -
Page 18: Setting The Remote To Operate A Tv
TV. PHILCO ....14 PHILIPS ....01 PHILIPS MAGNAVOX. .01, 02, 03 QUASAR . -
Page 19: Setting The Remote To Operate A Cable Box/Direct Broadcast System 19
Setting the Remote to Operate a Cable Box/Direct Broadcast System 19 Your VCR remote control may operate your Cable Box or Direct Broadcast System (DBS). If the remote control doesn’t operate your Cable Box or DBS now, follow the steps below. -
Page 20: Remote Control Buttons
Or, press during tape playback to freeze the picture. Press again to resume • Press the VCR button before pressing VCR feature buttons; press the TV button before pressing TV feature buttons; press the CBL/DBS button before pressing Cable Box/Direct Broadcast System feature buttons. -
Page 21: Remote Control Buttons
TV channel will not be clear, because you are in VCR position.) • Press the VCR button before pressing VCR feature buttons; press the TV button before pressing TV feature buttons; press the CBL/DBS button before pressing Cable Box/Direct Broadcast System feature buttons. -
Page 22: On-Screen Status Displays
The status display will not appear when you press function but- tons. You must press the STATUS/EXIT button to see the status display. Press the VCR button, then press the MENU button. Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button. -
Page 23: Vcr Display Panel 23
VCR. It flashes when all timer recordings or One- Touch Recordings are finished. CST.IN (Cassette Inside) Light This light appears when there is a tape in the VCR. VCR Display Panel 23 STOP/EJECT PLAY PAUSE F.FWD... -
Page 24: Front Panel
CST.IN TIMER RECORD CHANNEL (p/o) Buttons Press to change channels at the VCR. Or, press to adjust the tracking of a tape during normal playback or slow motion playback. Also, press to remove vertical jitter in a Still picture. RECORD Button Press once to start a recording. -
Page 25: Rear Panel 25
VIDEO OUT Jack Connect a video cable going to the VIDEO IN Jack of a camcorder, another VCR, or an audio-visual system (monitor, laser disc play- er, digital video disc player, etc.) here. Details are on page 34. VIDEO IN Jack... -
Page 26: Playing
Read and follow the steps below to play a tape. Turn on the TV and set it to channel 3 or 4, whichever channel the CH3/CH4 switch on the back of the VCR is set to. Insert a tape in the VCR. The POWER, VCR/TV and CST. IN lights will appear on the display panel. -
Page 27: Recording 27
If playback begins, press the VCR button, then press the STOP/p button to stop the tape. If the VCR/TV light appears on the display panel, go to step 4. If the VCR/TV light does not appear, press the VCR button, then press the VCR/TV button once. -
Page 28: Recording One Channel/Watching Another
Press the TV button, then press the CH(annel) o/p or Number buttons to select the channel you want to watch at the TV. (If the VCR remote control doesn’t work your TV, use the TV remote control to select the channel.) -
Page 29: One-Touch Recording 29
Set up the channels at the VCR. Select a recording speed (SP, SLP) with the SPEED button. Put a tape in the VCR. Make sure the tape’s record tab is intact and the tape is long enough to record the program(s). If the end of a tape is reached during an OTR, the VCR will eject the tape and turn itself off. -
Page 30: Timer Recording
Set up the channels at the VCR. Details are on page 12. Set the clock. Details are on page 15. Put a tape in the VCR. Make sure the tape’s record tab is intact and the tape is long enough to record the program(s). - Page 31 SPEED TIME SEARCH ENTER SLOW Helpful Hints • Entries that do not match the VCR’s clock or calendar will cause a ques- tion mark to appear on the screen. • If you are recording from line input, connect the audio and video cables to the AUDIO IN and VIDEO IN jacks on the back of the VCR.
-
Page 32: The Vcr
VCR. If the timer recording will take place several hours or days from now, you may use the VCR until time for the recording. Turn off the VCR a few minutes before the recording starts. If you forget to turn... - Page 33 Checking or Cancelling Timer Recordings With the VCR on and in VCR position (the VCR/TV light will appear on the display panel), press the VCR button, then press the MENU button. Press the PLAY/o button or the STOP/p button to select PROGRAM, then press the F.FWD/B button.
-
Page 34: Rerecording (Tape Duplication)
VCR 1 will play your tape. Put a prerecorded tape in VCR 1. VCR 2 will record your tape. Insert a blank tape in VCR 2. The VCR must be in VCR position. (The VCR/TV light will appear on the display panel. -
Page 35: Repeat Play 35
Follow the steps below to make the VCR play a tape over and over. Press the VCR button, then press the MENU button. SELECT op CHOOSE B PROGRAM VCR SET UP TUNER SET UP SET CLOCK TO END PUSH EXIT Press the PLAY/o button or the STOP/p button to select VCR SET UP, then press the F.FWD/B button. -
Page 36: Real-Time Counter Memory
Follow the steps below to reset the real-time counter to zero at a tape location you want to refer to later. Press the VCR button. Play, fast forward, or rewind a tape to the location that you would like to refer to later. Press the STOP/p button to stop the tape. -
Page 37: Time Search 37
Follow the steps below to program the VCR to search forward or backward on a tape a specific length of time. There must be a tape in the VCR. Press the VCR button, then press the TIME SEARCH but- ton. -
Page 38: Special Effects Playback
Super High Speed Searching (LP/SLP) During tape playback, press the F.FWD/B button or the REW(ind)/{ button, then press again. The VCR will now search in super high speed. Press the F.FWD/B button or the REW(ind)/{ button repeatedly to switch between regular search- ing and super high speed searching. -
Page 39: Automatic Operation Features 39
If a timer recording is set, the power will not come on automati- cally when you insert a tape with the record tab intact. If a timer recording is set and the VCR power is off, the VCR will eject the tape if the record tab is missing. -
Page 40: Blue Background
TV program- ming. The channel number will not appear on the screen when you select a weak channel, and you can not access the VCR’s sta- tus display. To set BLUE BACKGROUND to ON or OFF, follow these steps. -
Page 41: Glossary / Specifications 41
If you use the AUDIO and VIDEO In jacks on the front of the VCR, select channel 002 (AV FRONT). If you use the AUDIO and VIDEO IN jacks on the back of the VCR, select 001 (AV REAR). If you accidentally enter Line Input mode, press the CH(annel) o/p buttons or use the Number buttons to select another channel. -
Page 42: Helpful Hints
• Make sure you set the recording start and stop times correctly. Details are on pages 30-33. • Make sure a tape is in the VCR and the tape has a record tab (page five). If, after programming a timer recording, you turn off the VCR power without putting a tape in the VCR, the TIMER light will blink. -
Page 43: Helpful Hints
TV to channel 03 or 04, then make your channel selections at the DBS. • If you use audio and video cables to connect your DBS, VCR, and TV, you may have to put your VCR in Line Input mode (channel 001 or 002). -
Page 44: Limited Warranty
90 days thereafter, you may exchange the defective product for a new product at the store from which it was purchased or through Philips. This exchange is made at no cost to you. From 91 days to one year from the date of purchase, you must follow the exchange procedures set out on the next page. -
Page 45: Limited Warranty
After 12 months from the day of original purchase, contact Philips Service Solutions Group at 1-800-531-0039 for information regarding out-of-warranty exchange. • If you do not have your original sales receipt, or if you have any questions, call Philips Service Solutions Group at 1-800-531-0039. To obtain a replacement product from Philips: 1. -
Page 46: Index
...21, 24, 39 clear button...21, 36 clock setting ...15 connections ...6-10 contents, table of ...4 controls remote ...20-21 vcr ...23-25 copyright protection ...34, 43 counter only mode...22 cst.in light...23 daylight-savings time...16 display panel...23 duplication ...34 eject button...20 enter button...18-19, 21... -
Page 48: Accessories
UPPLIED The following items are supplied with your VCR; they are provided to help you use or set up your VCR. Remote Control 4835 218 37309 Two AA Batteries 4835 138 17012 PTIONAL The following additional items are not provided with your VCR, but they are designed for use with your new VCR.
