Harman JBL CINEMA SB400 Service Manual
  1. Manuals
  2. Brands
  3. Harman Manuals
  4. Speaker System
  5. JBL CINEMA SB400
  6. Service manual

Harman JBL CINEMA SB400 Service Manual

Powered sound bar with powered, wireless 8” subwoofer
Hide thumbs Also See for JBL CINEMA SB400:

Advertisement

Table of Contents

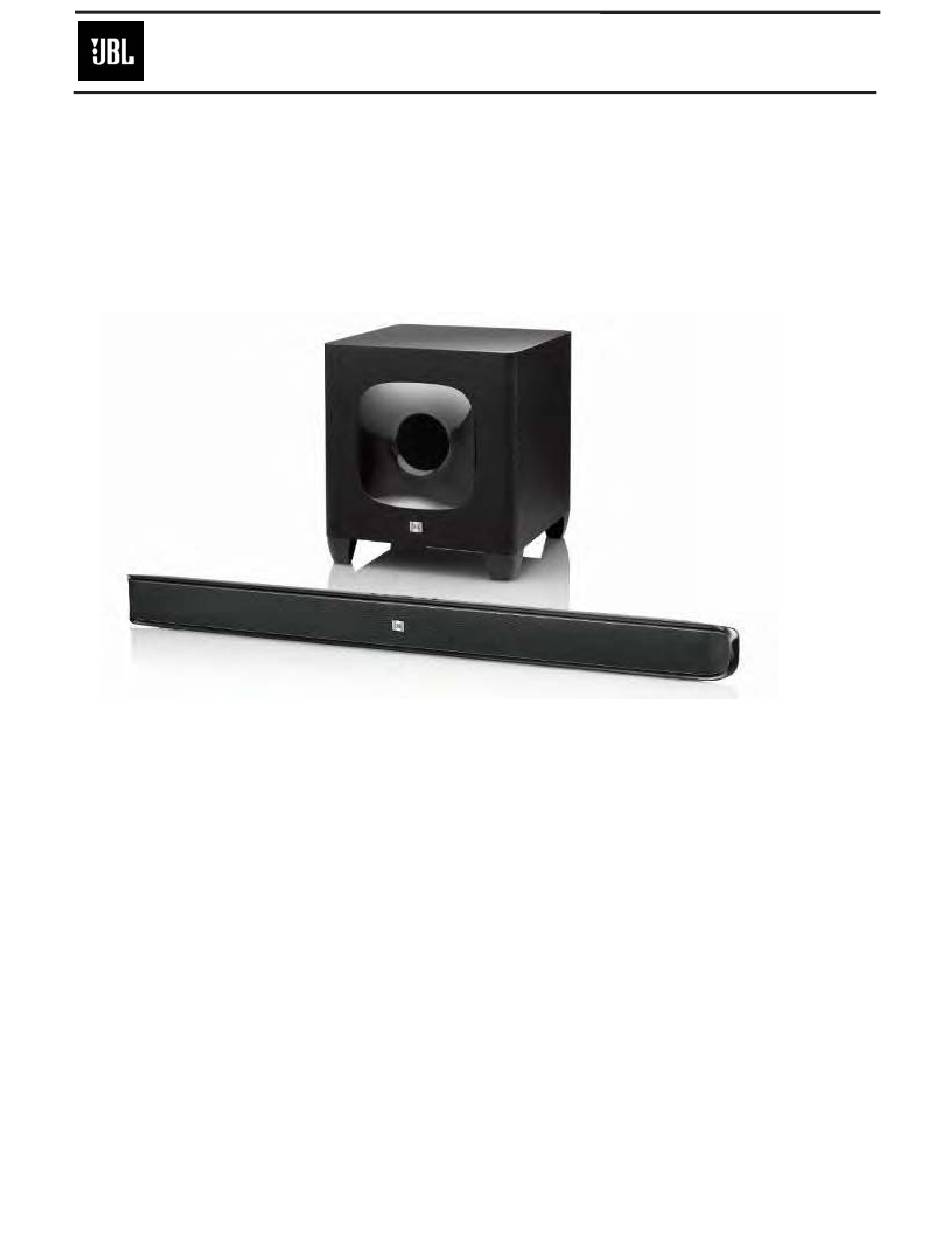

CINEMA SB400
Powered sound bar with powered, wireless 8" Subwoofer.
Released 2013
Discontinued XXXX
CONTENTS
2
3
4
5
9
12
13
Harman International
8500 Balboa Blvd.
Northridge, CA. 91329
Service Manual
14
15
16
22
30
31
Rev0 5/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL CINEMA SB400 and is the answer not in the manual?

Questions and answers

Craig bennett
February 17, 2025

My SB400 has stopped working ie no sound ? Neither with the TV or Bluetooth

0
1 comments:
Mr. Anderson
February 17, 2025

Your Harman JBL CINEMA SB400 is not producing sound with the TV due to possible connection or pairing issues. Based on the context:

1. TV Connection Issues: The soundbar may not be properly connected to the TV, or the TV settings may not be configured to output audio through the soundbar. Resetting the TV to factory settings restored TV speaker sound but caused issues when reconnecting the SB400.

2. Bluetooth Pairing Issues: The SB400 was able to stream audio from an Android phone, indicating that Bluetooth is functioning. However, if the soundbar and subwoofer are not paired correctly, the subwoofer may not work. Ensure both units are within the 50-foot wireless range and press the Wireless Pairing buttons on both within 30 seconds to sync them.

3. HDMI or Input Detection Problems: If the soundbar is connected via HDMI, ensure the correct input is selected. The OSD may display messages if the HDMI connection is not detected.

4. Remote or Volume Settings: Check if the soundbar is muted or if the volume is too low. Follow the manual instructions to sync the TV remote with the soundbar.

Try rechecking connections, pairing the units, and ensuring the correct input is selected. If the problem persists, a hardware issue may be present.

This answer is automatically generated

0

Related Manuals for Harman JBL CINEMA SB400

Summary of Contents for Harman JBL CINEMA SB400

  • Page 1: Table Of Contents

    SUBWOOFER EXPLODED VIEW ESD WARNING PARTS AND ACCESORIES LEAKAGE TESTING PCB DRAWINGS CONTROLS AND CONNECTIONS SEMICONDUCTOR PINOUTS SETUP AND OPERATION BLOCK DIAGRAM SPECIFICATIONS SCHEMATICS CENTER EXPLODED VIEW Harman International Released 2013 8500 Balboa Blvd. Discontinued XXXX Northridge, CA. 91329 Rev0 5/2013...

  • Page 2: Safety Info

    Contact your local waste management officials for information NOTE: Changes or modifications not expressly approved regarding the environmentally sound collection, recycling and by Harman could void the user’s authority to operate the disposal of used batteries. equipment. To remove the batteries from your equipment or remote...

  • Page 3: Esd Warning

    CINEMA SB400 Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

  • Page 4: Leakage Testing

    CINEMA SB400 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Measure leakage current to a known earth ground (water pipe, conduit, etc.) by connecting a leakage current tester between the earth ground and all exposed metal parts of the appliance (input/output terminals, screwheads, metal overlays, control shaft, etc.).

  • Page 5: Controls And Connections

    Display Surround processing on and off. The Surround button indicator has an optical digital output, use the included optical cable to connect turns amber when HARMAN Display Surround is active, and turns white it here. when HARMAN Display Surround is not active (normal stereo sound).
  • Page 6 CINEMA SB400 Bluetooth button (soundbar only): Press this button to play the audio stream from a paired Bluetooth device through the soundbar. (The Bluetooth Source Indicator LED will illuminate when a paired Bluetooth device is the active source.) Press and hold this button to force the soundbar into the Bluetooth pairing mode.
  • Page 7 CINEMA SB400 SOUNDBAR PLACEMENT IMPORTANT: Do NOT plug the soundbar’s power cord into an AC outlet at this time. PLACING THE SOUNDBAR ON A TABLE If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen.
  • Page 8 CINEMA SB400 CONNECTIONS Aux In and Optical In connections: If your TV and source devices do not have HDMI connections, you can use the supplied audio cable SOUNDBAR AUDIO/VIDEO CONNECTIONS and optical cable to connect your TV and one source device to the soundbar’s Aux In and Optical In connectors, respectively.

  • Page 9: Setup And Operation

    CINEMA SB400 USING YOUR SOUNDBAR SYSTEM ON-SCREEN INFORMATION DISPLAY The soundbar’s on-screen information display (OSD) will appear on the TURNING THE SOUNDBAR ON AND OFF screen of a TV connected to the HDMI ARC TV Out connector to verify Set the soundbar’s Power switcn to the “On” position. Press the Power operating status.
  • Page 10 Stop command and the Bluetooth device will stop streaming. the sound between normal stereo (the Surround Mode indicator lights white and the OSD displays “Music” as the sound mode) and HARMAN SWITCHING SOURCES Display Surround (the Surround Mode indicator lights amber and the OSD displays “Movie”...
  • Page 11 CINEMA SB400 BOOSTING THE BASS SUBWOOFER PHASE SWITCH Press the remote’s Bass Boost button to enhance low-frequency PHASE performance, resulting in bass with more impact, which you may prefer while watching movies or listening to music. The OSD will display “Bass On”...

  • Page 12: Specifications

    CINEMA SB400 SPECIFICATIONS A) Hold Down Soundbar’s Volume + Button CINEMA SB400 SYSTEM Frequency response: 38Hz – 20kHz (–6dB) CINEMA SB400 POWERED SOUNDBAR SPEAKER Midrange transducers: Two 2-1/4" (57mm) cones per channel High-frequency transducer: One 1" (25mm) dome per channel B) Press TV Remote’s Volume Up Button Amplifier power:...

  • Page 13: Center Exploded View

    CINEMA SB400...

  • Page 14: Subwoofer Exploded View

    CINEMA SB400...

  • Page 15: Parts And Accesories

    CINEMA SB400 SB400 Part list(US) NO.referred to Part Number USAGE Part Name DESCRIPTION the expd dwg SB400SUB ZJ0050011010 foot for SUB HIPS V0) black 510200 06658 Subwoofer Transducer 8ohm 100W ETSMO9026BW0N Power Supply Input 100V-240V,Out±24VDC/+3.3VDC,Standby Power<0.5W ZZ0007005010 Column spacing Column spacing NL66(94V-2) 5~11 ASA1SB4003010 amplifier system...

  • Page 16: Pcb Drawings

    CINEMA SB400...
  • Page 17 CINEMA SB400...
  • Page 18 CINEMA SB400...
  • Page 19 CINEMA SB400...
  • Page 20 CINEMA SB400...
  • Page 21 CINEMA SB400...
  • Page 23 INSENG ODULE ATASHEET IGITAL IRELESS UDIO OLUTION FOR ENERAL PPLICATIONS 2.3 P INOUT ATEGORY ETAILS Power: 3.3v supply pins are provided on either side of the module. These pins are all internally connected inside of the SiP and are provided for convenience so that Ginseng can be powered from either the left or right sides to make routing a PCB convenient for various applications.
  • Page 24 Product Specification Pin Configurations PIN NO. NAME TYPE FUNCTION RE-MARK AIO1 Bi-directional Programmable input/output line AIO0 Bi-directional Programmable input/output line RESET CMOS input with Reset if low. Input debounced so must be low for >5ms to weak internal pull-up cause a reset Ground PIO9 Bi-directional...
  • Page 25 Product Specification Recommended Layout patterns: Spec-BM153-V4.3 Page 4 of 7 www.sunitec.com.tw...
  • Page 26 STM32F105xx, STM32F107xx Pinouts and pin description Pinouts and pin description Figure 2. STM32F105xxx and STM32F107xxx connectivity line LQFP100 pinout VDD_2 VSS_2 PA 13 PA 12 VBAT PA 11 PC13-TAMPER-RTC PA 10 PC14-OSC32_IN PA 9 PC15-OSC32_OUT PA 8 VSS_5 VDD_5 OSC_IN LQFP100 OSC_OUT NRST...
  • Page 27 Pinouts and pin description STM32F105xx, STM32F107xx Figure 3. STM32F105xxx and STM32F107xxx connectivity line LQFP64 pinout 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 DD_2 PC13-TAMPER-RTC SS_2 PC14-OSC32_IN PA13 PC15-OSC32_OUT PA12 PA11 PD0 OSC_IN PD1 OSC_OUT PA10 NRST...
  • Page 28 TPA3116D2 SLOS708 FEBRUARY 2012 www.ti.com These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. TERMINAL ASSIGNMENT The TPA3116D2 is available in the thermally enhanced package: 32-PIN HTSSOP PACKAGE (DAD) PACKAGE (TOP VIEW)
  • Page 29 TPA3116D2 www.ti.com SLOS708 FEBRUARY 2012 Terminal Functions (continued) TYPE DESCRIPTION NAME AM Avoidance Frequency Selection AM Avoidance Frequency Selection SYNC Clock input/output for synchronizing multiple class-D devices. Direction determined by GAIN/SLV terminal. Input signal not to exceed GVDD (7 V). AVCC Analog Supply PVCC...

  • Page 30: Block Diagram

    CINEMA SB400 SPI Flash SST25VF040B L_Woofer 8 Ohm HDMI IN 1 HDMI OUT L_Woofer L_W CH Class D HDMI 8 Ohm Power amp DSP I2S SIL9573 HDMI IN 1 L_T CH TPA3116D2 SPIF SPI-DA01-LRCK SPI-DA01-SCLK L_Tweeter SPI-DA01-DO/HPS D/AC HDMI IN 1 4 Ohm CS42528(3/3) SIL-SCLK...

  • Page 31: Schematics

    CINEMA SB400...
  • Page 32 C692 C610 R631 R601 R606 R630 C697 R602 VCC3V3 Q601 R603 Title 2N7002 SB310 HDMI PCB Board SCH Sparta_RST_H R604 C683 Size Number Revision 100P VCC3V3 R605 VER 1.4 R627 VCC3V3_OUT Date: 31-Jul-2012 Sheet of File: D:\MODEL\Harman SoundBar\2012\SB3110_Worck\sch&pcb\SB310(RFQ)1.DDB Drawn By:...
  • Page 33 Drawing: L804 BK_VCC_5V Size Number Revision C666 Checker: Dated: MCU-3V3 C814 LED KEY - PCB Board R383 R382 R381 R380 R379 R362 R366 VER 1.5 Approval: Dated: Date: 31-Jul-2012 Sheet of Standardition: Dated: File: D:\MODEL\Harman SoundBar\2012\SB3110_Worck\sch&pcb\SB310(RFQ)1.DDB Drawn By: Zou WanYong...
