SIMATIC RF1000
SIMATIC Ident
RFID systems
SIMATIC RF1000
Operating Instructions
02/2020
C79000-G8976-C432-07
Introduction
Description
Installation
Connecting
Commissioning
Programming
The demo application
Technical specifications
Dimension drawing
Appendix
Service & Support
1
2
3
4
5
6
7
8
9
A
B

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC RF1000

Summary of Contents for Siemens SIMATIC RF1000

  • Page 1 SIMATIC RF1000 Introduction Description Installation SIMATIC Ident Connecting RFID systems SIMATIC RF1000 Commissioning Programming Operating Instructions The demo application Technical specifications Dimension drawing Appendix Service & Support 02/2020 C79000-G8976-C432-07...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    .......................... 43 6.3.2.2 syscmd_get_info ........................44 6.3.2.3 syscmd_get_boot_status ......................45 6.3.2.4 syscmd_set_port ........................46 6.3.2.5 vhl_select ..........................47 6.3.2.6 vhl_get_snr ..........................48 6.3.2.7 vhl_is_selected ........................49 6.3.2.8 vhl_read ..........................50 6.3.2.9 vhl_write ..........................51 SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 4 Dimension drawing ..........................69 Appendix .............................. 71 Certificates & approvals ......................71 A.1.1 Country-specific approvals ..................... 71 A.1.2 Using the reader in hazardous areas ..................73 Ordering data ......................... 75 Service & Support ..........................77 SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 5: Introduction

    Do not dispose of the products at public disposal sites. For environmentally compliant recycling and disposal of your electronic waste, please contact a company certified for the disposal of electronic waste or your Siemens representative. Note the different country-specific regulations.
  • Page 6 Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers’...

  • Page 7: Description

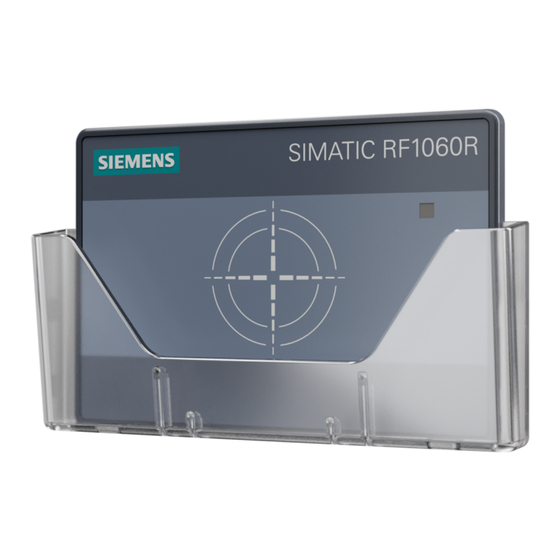

    Product photos of the SIMATIC RF1000 reader Reader-specific differences The SIMATIC RF1000 readers are designed for connection to a Windows computer. Alternatively, they can also be operated on a Linux-based system. The connection is via a USB interface of the computer. SIMATIC RF1040R and RF1070R readers can also be connected via the RS232 interface.
  • Page 8 Description 2.1 Description of the readers Interface-specific programming The Siemens support site "Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/109741590)" provides access functions for the readers in the form of DLL files for Windows, as well as a demo application. With operation via the USB interface on a PC (Windows), you can implement user identification for access to your own applications quickly and simply with the help of the DLL file.

  • Page 9: Connection Options And Supported Transponders

    MDS D1xx, D3xx, E6xx ✓ ✓ ✓ MDS D2xx ✓ ✓ ✓ MDS D4xx, D5xx ✓ ✓ ✓: Reading the serial number as well as reading and writing the user memory area Only for read-only access SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 10 (LF, 125 kHz) are generally supported by the readers. If you cannot find the card type that you use in the table, you can ask Siemens Customer Support about the functionality. Note that serial numbers (UIDs) of transponders that begin with the byte "0x08" are always newly generated by the transponder.

  • Page 11: Installation

    ② 4. Mount the cover plate on the rear of the reader with the 4 Torx screws (max. 1.5 Nm) ③ 5. Attach the reader by tightening the 4x stud screws (≃ 0.5 Nm) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 12 Installation Figure 3-1 Mounting the SIMATIC RF1000 reader WARNING Using the reader in hazardous areas • When the reader is operated in a hazardous area, the connecting cable (USB or RS232) must be secured with the supplied cable ties and the adhesive socket.
  • Page 13 Do not try to repair the reader in case of a problem. Repair and maintenance work must only be carried out by qualified personnel. Contact Siemens Support in case of repair or maintenance problems. For more information, refer to the section "Service & Support".
  • Page 14 Installation SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 15: Connecting

    ● For communication via the RS232 interface with a SIMATIC Ident communication module, the connecting cable (6GT2891-4UH20) ● For communication via the RS232 interface with any serial module, the connecting cable with open ends (6GT2891-2UH30) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 16 The procedure for connecting the reader depends on the interface over which the reader is being operated. Connection via USB interface Proceed as follows to connect the SIMATIC RF1000 reader via the USB interface: 1. Connect the reader to the PC or Panel using the USB cable. Connection via RS232 interface...
  • Page 17 Connecting When connecting the SIMATIC RF1000 reader to a serial communications module, ensure that you wire the devices as illustrated below. ① ③ Brown ② ④ Black Orange Figure 4-2 Connection diagram: Connecting the reader to a serial communications module...
  • Page 18 Connecting SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 19: Commissioning

    Commissioning via the USB interface Windows operating systems Proceed as follows to commission the SIMATIC RF1000 reader via the USB interface 1. Connect the reader to the PC or Panel using the USB cable. Reaction: The message "A USB device was installed successfully." appears.
  • Page 20 Identification card for LEGIC systems When using encrypted LEGIC systems/cards, you need an identification card to transfer reader configurations to the reader. For this purpose, contact the project owner or the original project supplier. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 21: Programming

    Programming Depending on the interface over which the SIMATIC RF1000 readers are being operated, programming must take place either over the USB or the RS232 interface. Typical applications Below you will find typical applications for using the SIMATIC RF1000 readers. The applications are shown as an example using the DLL functions.

  • Page 22: Programming Via Usb/Rs232 Interface (Using Dll Functions)

    Functions of the USB/RS232 interface for Windows You can program the reader using access functions. You can find the "RF1000R.zip" file on the Siemens support page "Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/109741590)". It includes the DLL files ("BrpDriver_x64" and "BrpDriver_x86"), the DLL functions as well as a demo application which demonstrates the use of the DLL functions.

  • Page 23: Brp_Open_Usb_Session

    "BRP_OK" is returned. ProductID 0x00 Return value BRP_OK • BRP_ERR_BUSY • BRP_ERR_GENERAL_IO • BRP_ERR_BUFFER_OVERFLOW • BRP_ERR_NO_MORE_HANDLES • BRP_ERR_INSUFFICIENT_MEM • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 24: Brp_Open_Serial_Session

    Handle Session key initialized by this function. The session key is valid as soon as "BRP_OK" is returned. com_port Number of the COM port Possible values: 0x00: COM1 • 0x01: COM2 • • SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 25 0x01: ser_par_odd • 0x02: ser_par_even • Return value BRP_OK • BRP_ERR_BUSY • BRP_ERR_GENERAL_IO • BRP_ERR_BUFFER_OVERFLOW • BRP_ERR_NO_MORE_HANDLES • BRP_ERR_INSUFFICIENT_MEM • You will find more information on return values in the section "Return values (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 26: Brp_Set_Checksum

    0x00: BRP_CECKSUM_NONE (Default) • 0x01: BRP_CECKSUM_BCC8 • 0x02: BRP_CECKSUM_CRC16 • 0x03: BRP_CECKSUM_BCC16 • Return value BRP_OK • BRP_ERR_BUSY • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 27: Brp_Set_Bufsize

    RF1060R: max. 512 bytes (data length 506 bytes) • RF1040R/RF1070R: max. 1024 bytes (data length 1018 bytes) • Return value BRP_OK • BRP_ERR_BUSY • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 28: Brp_Close_Session

    This function call restarts the reader. Handle The session key returned by the "brp_open_usb_session" or "brp_open_serial_session" function. Status Return value BRP_OK • You will find more information on return values in the section "Return values (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 29: Syscmd_Get_Info

    Version (major release, minor release, build ID) dd/dd/dd Date of the version ssssssss Serial number of the reader Status Return value BRP_OK • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 30: Syscmd_Get_Boot_Status

    You will find more information on return values in the section "Return val- ues (Page 40)". Note Value of boot status not equal to "0" If the function returns a value not equal to "0", please contact "Service & Support". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 31: Syscmd_Set_Port

    Acoustic signal (only for RF1040R/RF1070R) 0x0005 Acoustic signal (only for RF1040R/RF1070R) and LED lit green 0x0006 Acoustic signal (only for RF1040R/RF1070R) and LED lit red 0x0007 Acoustic signal (only for RF1040R/RF1070R) and LED lit orange SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 32: Vhl_Select

    The returned value indicates the card type (see following table). Status • NOTAG_ERR • HF_ERR • HW_ERR • CONFCARD_READ • You can find more information on the reader status in the section "Status codes (Page 55)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 33 0x0080 (Bit 8) 0x8X (only with RF1040R) EM4100/EM4102, HITAG 1/2/S, HID Prox/ioProx, Keri 0x0200 (Bit 10) 0xAX (only with RF1040R) SecuraKey 0x0800 (bit 12) 0xCX LEGIC Prime (only for RF1070R) 0xFFFF 0xFF All card families SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 34: Vhl_Get_Snr

    You will find more information on the reader status in the section "Status codes (Page 55)". Return value BRP_OK • CARD_NOT_SELECTED_ERR • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 35: Vhl_Is_Selected

    You will find more information on the reader status in the section "Status codes (Page 55)". Return value BRP_OK • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 36: Vhl_Read

    You will find more information on the reader status in the section "Status codes (Page 55)". Return value BRP_OK • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 37: Vhl_Write

    You will find more information on the reader status in the section "Status codes (Page 55)". Return value BRP_OK • You will find more information on return values in the section "Return val- ues (Page 40)". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 38: Autoread_Setmode (Called Via "Exec_Comand")

    0x02: The "Autoread" functionality is executed once as soon as a card • enters the antenna field. This is followed by a switch to VHL mode. The card identification is executed one more time with another call using the parameter value 0x02. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 39: Autoread_Getmessage(Called Via "Exec_Comand")

    This function call reads data from the transponder located in the antenna field. Handle The session key returned by the "brp_open_usb_session" or "brp_open_serial_session" function. devcode 0x05 cmdcode 0x01 param param_len 0x00 timeout Time in [ms] until the action is aborted (100 is the recommended value). SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 40: Return Values

    There is no free session key. 0x0A BRP_ERR_INSUFFICIENT_MEM There is not enough memory to generate a new session key. 0x0B BRP_ERR_WRONG_HANDLE The specified session key does not exist. 0x0C BRP_ERR_WRONG_PARAMETERS The parameters of a function are incorrect. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 41: Functions Of The Usb Interface For Linux

    Functions of the USB interface for Linux The programming in Linux is made via an API and Software Development Kit. For additional information, contact the Siemens Industry Online Support (Page 77). Alternatively, you can program the USB interface in Linux based on the serial telegrams.

  • Page 42: Implementation Of The Commands

    Application example The following link shows an application example for connecting the RF1040R/RF1070R readers via an RF170C communication module. Application example (https://support.industry.siemens.com/cs/ww/en/view/109770535) 6.3.1 Implementation of the commands The different jobs are described in more detail below. Note that you must wait for the respective response telegram (reader response time) before you can send new request telegrams.

  • Page 43: Commands

    DevCode of the command set containing the command to be called. 0x03 CmdCode of the command to be called. 3 ... 4 0x00 Parameter length (0 bytes) 0xC2 Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 44: Syscmd_Get_Info

    5 ... 45 0x01 ... Firmware version of the reader, date of manufacture as ASCII value Example: 1100 IDE Z 1.02.00 09/18/18 43025112 0xXX Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 45: Syscmd_Get_Boot_Status

    CmdCode of the command to be called. 0x04 Parameter length (4 bytes) 0x00 5 ... 8 0x00 Boot status = 0x00 (OK) 0x48 Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 46: Syscmd_Set_Port

    DevCode of the command set containing the command to be called. 0x07 CmdCode of the command to be called. 0x00 Parameter length (0 bytes) 0x00 0xC6 Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 47: Vhl_Select

    Value Description 0x8C Without checksum 0x9C With checksum 0x01 DevCode of the command set containing the command to be called. 0x00 CmdCode of the command to be called. 0x01 Parameter length (1 byte) 0x00 SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 48: Vhl_Get_Snr

    Parameter length, depending on card type (e.g. 4 bytes) 0x00 0x11 Serial number of the card, depending on card type 0x22 0x33 0x44 0xXX Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 49: Vhl_Is_Selected

    Table 6- 37 Response telegram with errors Byte Value Description 0x8C Without checksum 0x9C With checksum 0x01 DevCode of the command set containing the command to be called. 0x04 CmdCode of the command to be called. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 50: Vhl_Read

    CmdCode of the command to be called. 0x08 Parameter length (e.g. 8 bytes) 0x00 5 ... 12 0xCC Read data (e.g. 0xCC) 0xXX Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 51: Vhl_Write

    Number of the VHL function (e.g. 0xFF [factory setting for ISO 15693]) 0x00 Address (e.g. 0x42) 0x42 0x00 Length (e.g. 0x08) 0x08 10 ... 17 0x33 Data to be written (e.g. 0x33) 0xXX Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 52 Status Possible status codes: 0x02: CARD_NOT_SELECTED_ERR • 0x03: HF_ERR • 0x05: AUTH_ERR • 0x06: READ_ERR • 0x08: CONFCARD_READ • 0x0C: HW_ERR • 0x9C Optional checksum (when the value "0x9C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 53: Autoread_Setmode

    DevCode of the command set containing the command to be called. 0x00 CmdCode of the command to be called. 3 ... 4 0x00 Parameter length (0 bytes) 0xC4 Optional checksum (when the value "0x1C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 54: Autoread_Getmessage

    CmdCode of the command to be called. 0x01 Parameter length (1 byte) 0x00 0x01 Status Possible status codes: 0x01: NO_MESSAGE_ERR • 0x10: AR_DISABLED_ERR • 0xDC Optional checksum (when the value "0x9C" is set in byte 0) SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 55: Status Codes

    0x0502 0x02 SCRIPT_RUNTIME_ERR Runtime error detected during script execu- tion. 0x0503 0x03 SCRIPT_SYNTAX_ERR Syntax error in the script 0x0504 0x04 SCRIPT_NOT_IMPL_ERR Scripts does not exist. 0x0510 0x10 AR_DISABLED_ERR "Autoread" function is switched off. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 56 TIMEOUT_ERR The reader is currently in timeout. 0x82 FRAME_ERR Invalid command from host. 0x83 AME_OVERFLOW_ERR The length of the response exceeds the maximum per- missible length. 0x84 CHK_ERR Invalid checksum in the host command. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 57: The Demo Application

    The demo application The demo application contained in the file "RF1000R.exe" helps you to understand the available functions. You will find the file on the Siemens "Industry Online Support (https://support.industry.siemens.com/cs/ww/en/view/109741590)" page. The available software package contains a demo application based on "Windows .NET 3.5"...

  • Page 58: User Interface Of The Demo Application

    Terminates the USB connection to the reader. LED Color Switches the LED color and activates the acoustic signal. Clear Emptying the top display area. Read Data Manual reading of the transponder data. Write Data Manual writing of the transponder data. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 59 Configcard Transferring the configuration from the configuration card in the antenna field to the reader. Note the the connection is terminated after the transfer ("Stop") and must be reestablished ("Start"). SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 60: Creating A Custom Application

    – The application signals that the transponder with the serial number "x" is no longer recognized. 3. Terminate the connection to the reader ("brp_close_session"). The source code of the demo application can serve as an example for your own application. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 61 The demo application 7.2 Creating a custom application Figure 7-2 "Read serial number" flow diagram SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 62 – Read out the transponder data ("Autoread_GetMessage" / "exec_command", devcode = 0x05, cmdcode = 0x01) The source code of the demo application can serve as an example for your own application. Figure 7-3 "Autonomous reading" flow diagram SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 63 – You can write data to the memory area with the "vhl_write" function. 3. Terminate the connection to the reader ("brp_close_session"). The source code of the demo application can serve as an example for your own application. Figure 7-4 "Read/write memory area" flow diagram SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 64 3. Terminate the connection to the reader ("brp_close_session"). 4. Establish the connection to the reader again ("brp_open_usb_session"). The source code of the demo application can serve as an example for your own application. Figure 7-5 "Transfer reader configuration" flow diagram SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 65: Technical Specifications

    Interface to the communications module USB 2.0 • RS232 (115.2 kBd; no parity) • Antenna integrated Supply voltage, current consumption, power loss Power supply 4.6 to 5.25 V DC Current consumption typically 150 mA; max. 300 mA SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 66 The minimum distance can be lowered if, from an application point of view, it is permissible that a transponder can also be read by an adjacent reader. Only in conjunction with the SIMATIC RF1060R readers as of product version "AS: B" and SIMATIC RF1070R as of product version "AS: C". SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 67 • During storage -25 … +60 °C • • Degree of protection according to EN 60529 IP67 Design, dimensions and weight Dimensions (D × W × H) 86 × 54 × 0.8 mm Weight SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 68 Technical specifications SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 69: Dimension Drawing

    Dimension drawing ① Figure 9-1 Dimension drawing SIMATIC RF1000 with optional card holder All dimensions in mm SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 70 Dimension drawing SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 71: Appendix

    "This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and • (2) this device must accept any interference received, including • interference that may cause undesired operation." SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
  • Page 72 SIMATIC RF1060R: RCPSIRF16-2053 • SIMATIC RF1070R: RCPSIRF18-2240 • South Korea (KCC) (only SIMATIC RF1060R/RF1070R) Korea Communications Commission Certificate of Broadcasting and Communication Equipments Republic of Korea SIMATIC RF1060R: MSP-CRM-RF5-RF1060R • SIMATIC RF1070R: R-C-RF5-RF1070R • SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 73: Using The Reader In Hazardous Areas

    Device-specific validity of the directive Please note that the directive and marking described in this section are valid only for the SIMATIC RF1000 readers with the following product versions: • SIMATIC RF1060R as of product version "AS: B" • SIMATIC RF1070R as of product version "AS: C"...
  • Page 74 • EPL Gc: It has to be guaranteed that the transient protection is set to a value that does not exceed 140% of the measured peak voltage value at the USB/RS232 cable of the housing. SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...

  • Page 75: Ordering Data

    5 V / 3 A Optional USB connecting cable 0.5 m 6GT2891-0UE50 RS232 connecting cable 2.0 m 6GT2891-4UH20 for connection to RF170C M12 ↔ PicoBlade RS232 connecting cable 3.0 m 6GT2891-2UH30 Open cable end ↔ PicoBlade SIMATIC RF1000 Operating Instructions, 02/2020, C79000-G8976-C432-07...
