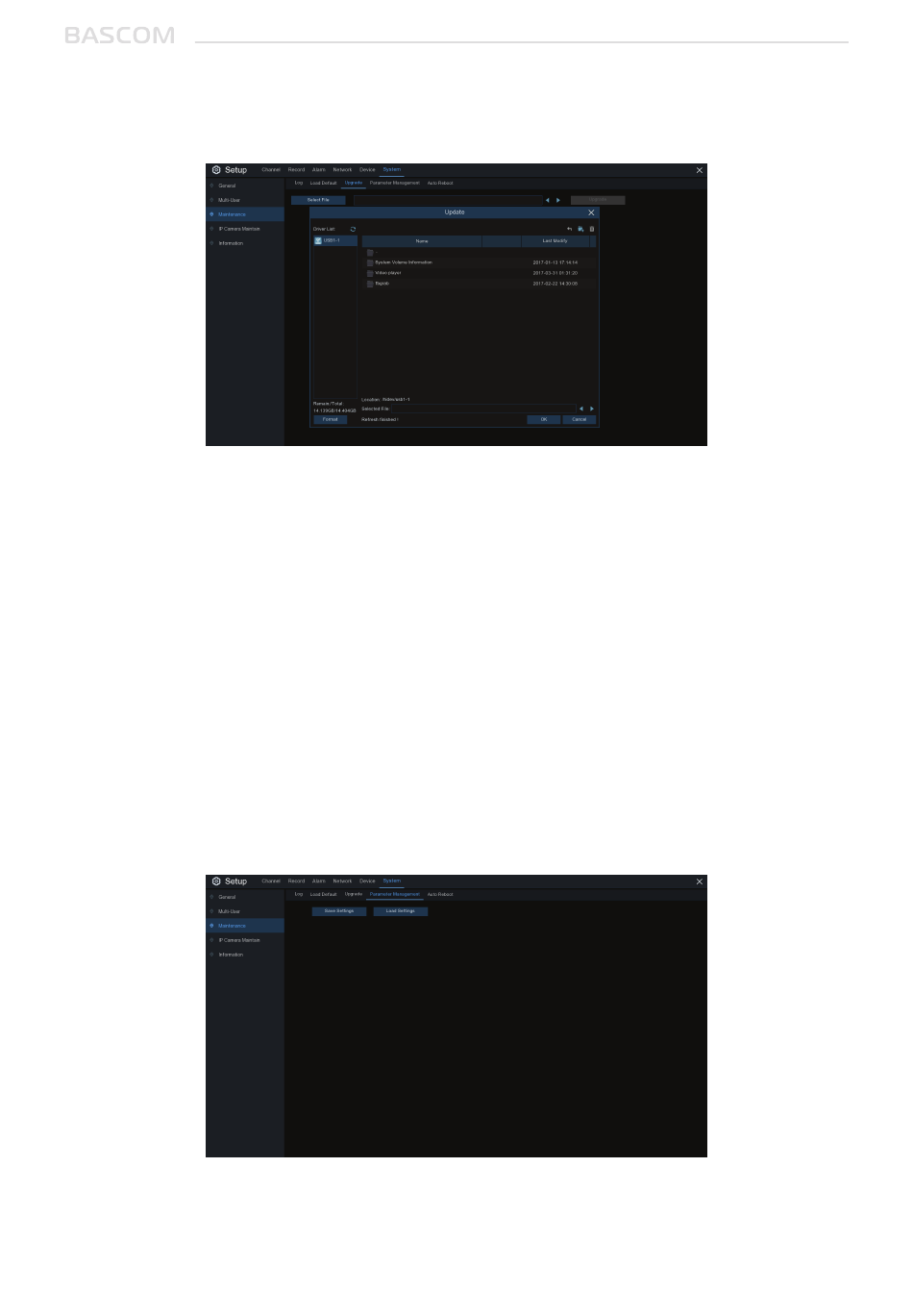

3.6.4.3 Upgrade

1. Copy the firmware file (.sw file) to your USB drive, and insert the USB flash drive into the front USB
port.
2. Click Select File button to choose the firmware file in your USB flash drive, then Click OK.
3. Click Upgrade button to start system upgrade. The system upgrade will last around 5-10 minutes,
please do NOT power off the system or remove the USB flash drive during firmware upgrade.
3.6.4.4 Settings Backup
You can export the main menu settings you have configured to a USB flash drive, or import an exported
setting file from USB flash drive.
Save Settings: Click to save the current system settings to the USB device. You will be required to
input the Admin password to authenticate.
