TM
INSTRUCTION MANUAL
GAIN ACCESS TO SIX CLASSES ON THE ECHELON
™
APP
THROUGH THE APP STORE OR GOOGLE PLAY
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google Inc.
READ MANUAL BEFORE OPERATING
Requires 2 AA batteries (included)
Do not mix old and new batteries;
Do not mix alkaline, standard (carbon-zinc), or rechargeable (NiCd, Ni-Mh, etc) batteries.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fitnation Flex Bike Ultra
Summary of Contents for Fitnation Flex Bike Ultra
-

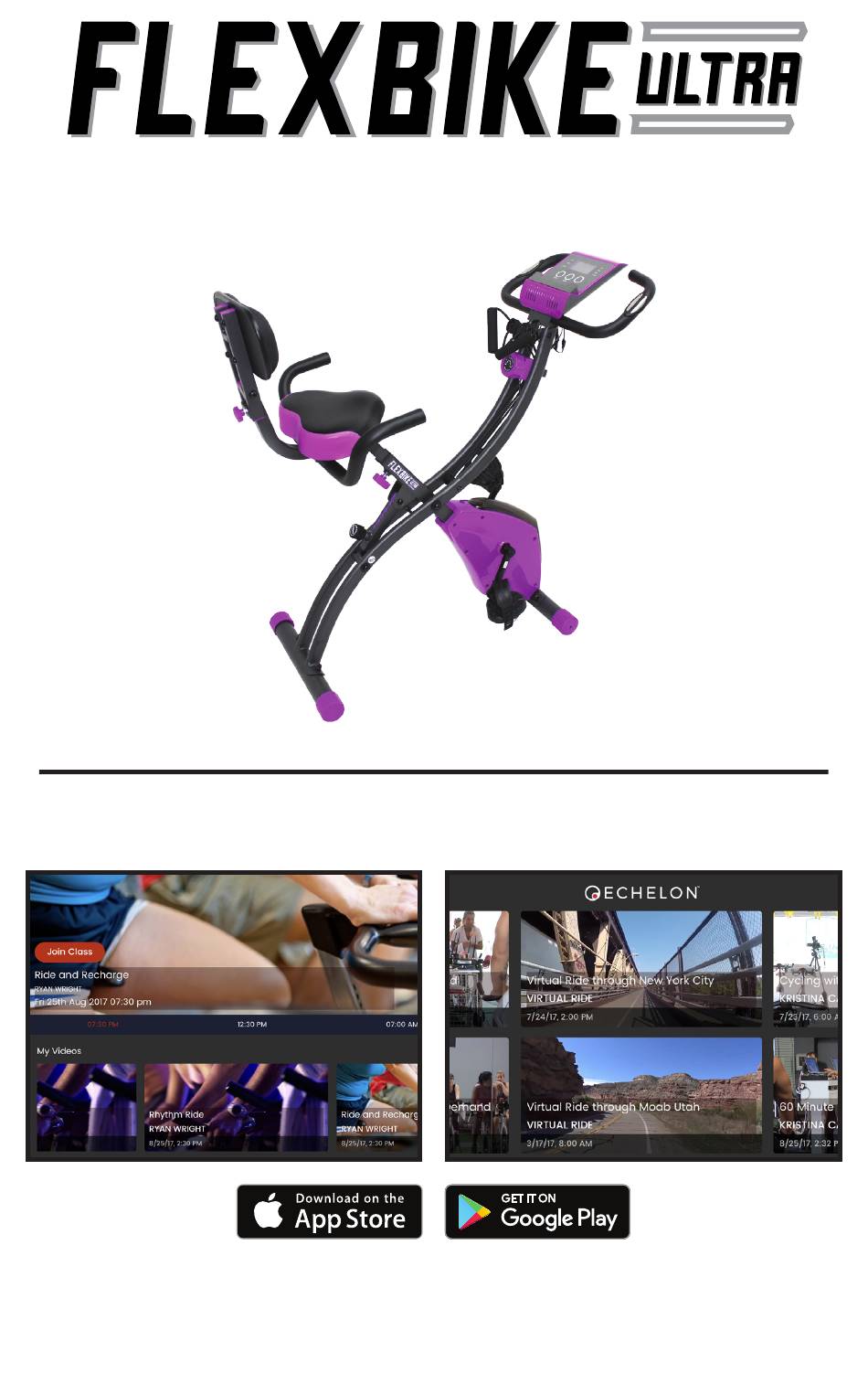

Page 1: Instruction Manual
INSTRUCTION MANUAL GAIN ACCESS TO SIX CLASSES ON THE ECHELON ™ THROUGH THE APP STORE OR GOOGLE PLAY Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google Inc. - Page 2 ALWAYS read the user’s manual fully and follow all instructions, this ensures your safety. ALWAYS use the Flex Bike Ultra™ on solid, level ground and in a well lit and ventilated area. Check that the seat and handlebars are securely fastened before use.
- Page 3 NEVER use Flex Bike Ultra™ when sick or fatigued. NEVER exceed the weight limit for this bike. The weight limit for this bike is 300 pounds. Do not use the Flex Bike Ultra™ if your body weight is in excess of 300 pounds.
- Page 4 Please ensure that the Flex Bike Ultra™ is wiped down after each use to keep it sanitary. If any problems arise affecting the performance of the Flex Bike Ultra™, please contact the manufacturer immediately.
-
Page 5: Before You Start
Welcome to the Flex Bike Ultra Revolution! BEFORE YOU START ™ Prior to leaving the factory, your Flex Bike Ultra was inspected and thoroughly tested for proper operation. In order to minimize damage through shipping, the bike was examined and carefully packaged. -
Page 6: Parts List
PARTS LIST 1. Main frame 12. Washers and screws · 2 washers for seat handles 2. Seat post · 2 screws for seat handles 3. Rear foot · 4 screws for backrest 4. Front foot with rollers (Other screws, washers, and nuts come installed in parts. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Loosen circular knob on main Take both nuts and washers off frame and pull outward to adjust of rear foot. recline angle to 1 (lowest setting). Place the nuts and washers to Install rear foot into rear main the side for now. - Page 8 ASSEMBLY INSTRUCTIONS Tighten nut onto screw with Take both nuts and washers off included wrench. Repeat on of front foot with rollers. other side. Place the nuts and washers to Install front foot onto front main the side for now. frame leg.
- Page 9 ASSEMBLY INSTRUCTIONS Tighten nut onto screw with Take nuts and washers off of the included wrench. Repeat on other seat cushion. side. Place the nuts and washers to the Fit seat post onto seat cushion side for now. screws. Place the washers over the Finger tighten each nut onto screws from seat cushion.
- Page 10 ASSEMBLY INSTRUCTIONS Tighten nut onto screw with Loosen triangular knob and included wrench. Repeat on remove from the main frame. other two nuts. Insert seat post into main frame. Secure knob back into place at desired height. Remove screw, nut, and washer Place the screw, nut, and washer from the backrest support.
- Page 11 ASSEMBLY INSTRUCTIONS Align backrest support with hole Insert screw through hole in in the seat post. backrest support. Place washer onto the screw. Place nut on screw and finger tighten. If difficult to tighten, nut may be upside-down. Tighten the nut with the included Place washers onto screws wrench.
- Page 12 ASSEMBLY INSTRUCTIONS Align the seat handles with holes on Place screws into holes and the bottom of the backrest support. finger tighten. Tighten down screws with included Align backrest against backrest large hex key/screwdriver tool. support. Insert screws and finger tighten (see parts diagram).
- Page 13 ASSEMBLY INSTRUCTIONS Remove screws from handle bar. Place screws to the side for now. Feed handle bar posts into the slots Place screws into holes and on the top of the main frame. finger tighten. Tighten down screws with included Remove screws from the back small hex key tool.
- Page 14 ASSEMBLY INSTRUCTIONS Starting with the largest Place control panel onto the connector, feed each of the three handle bar bracket. wires through the hole in the center of handle bar bracket. Insert screws and finger tighten. Tighten screws with included large hex key/screwdriver tool.
- Page 15 ASSEMBLY INSTRUCTIONS READ THIS SECTION CAREFULLY Connect the right pedal to the Hold the right pedal with one hand right crank arm. Both parts are and screw the pedal bolt onto the marked R. crank arm with the other hand in a standard clockwise motion.
-
Page 16: Control Panel
CONTROL PANEL BATTERY INSTALLATION Requires 2 AA batteries (included) Do not mix old and new batteries; Do not mix alkaline, standard (carbon-zinc), or rechargeable (NiCd, Ni-Mh, etc) batteries. 1. Open battery compartment 2. Note the diagram inside door on the back of the Flex the compartment that Bike Ultra’s control panel. - Page 17 CONTROL PANEL BUTTONS: clears data from RESET selected mode. • To reset all stored information from previous workout, press SCAN DIST for 3 seconds. • Does not clear total exercise TIME miles (ODO). SPEED PULSE Selects mode. MODE • To reset all stored information from previous workout, press for 3 seconds.

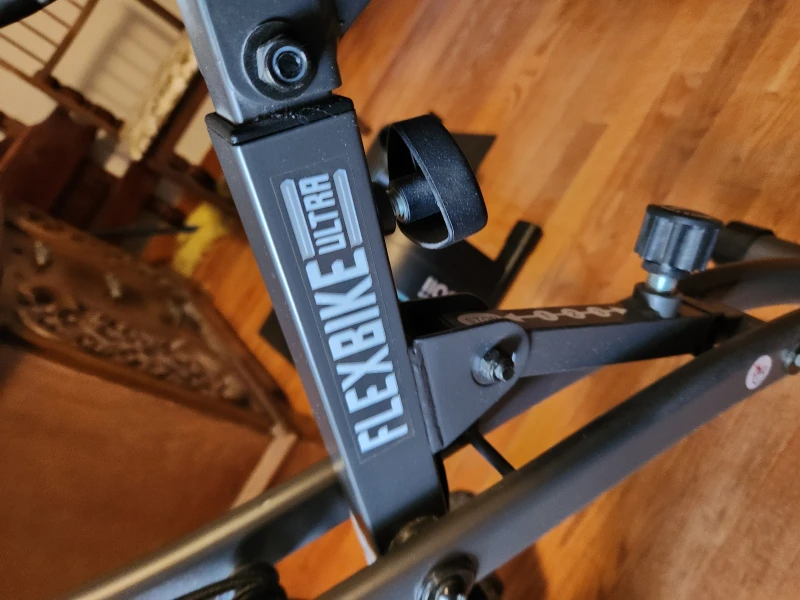

- Page 18 ADJUSTING RECLINE ANGLE Twist circular knob on main frame to the left to loosen the bolt (do not fully remove). While stepping on the rear foot, lift up on the bike while pulling the knob to adjust angle. Level 1 Level 2 Level 3...
- Page 19 ADJUSTING SEAT HEIGHT Level 1: Seat is lowered as far as the seat post will go. Unscrew and remove triangular knob. Pull up on seat to move levels. Screw knob back into place at desired level. Level 1 Level 2 Level 3 Level 4...
- Page 20 INSTALLING PHONE CLIP Pull smaller clip apart and Insert phone into bigger Adjust phone to your slide around handlebars. clip and work into desired orientation. small groves. Compatible with most smart phones with thin cases. ADJUSTING PEDAL TENSION Turn the tension control knob to adjust pedal tension from 1 to 8. ADJUSTING RESISTANCE BANDS SHORTEN BANDS LENGTHEN BANDS...
- Page 21 USING FLEX BIKE ULTRA Lean back against backrest and grab handles attached under seat. Keeping your back straight, pedal at desired pace. Lean forward and grab onto handlebars where the heart rate monitor grips are located. Keeping your back straight, pedal at desired pace.
- Page 22 USING FLEX BIKE ULTRA Lean back against backrest and grab both resistance band handles. Keeping your back straight and elbows close to torso, pull the right handle towards right shoulder. Repeat with left arm. Lean back against backrest and grab both resistance band handles.
- Page 23 USING FLEX BIKE ULTRA Keeping your back straight and arms locked out straight, grab the resistance band handles and pull to shoulder height. Lower slowly and repeat.
- Page 24 QUESTIONS? CONTACT CUSTOMER SERVICE 1-888-784-2835 For customer service call 888.784.2835 (+1.423.402.9010 for outside the United States) or visit us online at viatekproducts.com Pour le service a la clientele appelez le 888.784.2835 (+1.423.402.9010 a l’extérieur des États-Unis) ou visitez viatekproducts.com Para servicio al consumidor llame al 888.784.2835 (fuera de Estados Unidos marque +1.423.402.9010) o visite viatekproducts.com 121217 Read Instructions MADE IN...
Need help?
Do you have a question about the Flex Bike Ultra and is the answer not in the manual?
Questions and answers
Having a problem adjusting the angle.
To adjust the angle on the Fitnation Flex Bike Ultra:
1. Loosen the circular knob on the main frame.
2. Pull outward to change the recline angle to the desired position (e.g., setting 1 for the lowest).
3. Once the angle is set, tighten the knob to secure the position.
This answer is automatically generated
Can I replace right hand arm Assembly with foot pedal
Yes, the right-hand arm assembly can be replaced with a foot pedal on the Fitnation Flex Bike Ultra. The instructions describe connecting the right pedal (marked R) to the crank arm by screwing it in clockwise, which indicates it is designed to accept a foot pedal.
This answer is automatically generated
What is wrong when all I get is 0.00 no #s for reset, miles, time, speed I replaced batteries and I still don't get any numbers
If the Fitnation Flex Bike Ultra displays 0.00 for reset, miles, time, and speed after replacing the batteries, possible issues could include:
1. Incorrect Battery Installation – Ensure the 2 AA batteries are installed according to the correct polarity as indicated inside the battery compartment.
2. Battery Connection Issue – Check if the battery contacts are clean and properly aligned.
3. Need for Reset – Press the [RESET] button to clear previous data and ensure the display updates.
4. Auto-Off Feature – The display turns off after 4 minutes of inactivity. Try pressing a button or pedaling to wake the system.
5. Faulty Batteries – If using old or mixed battery types, replace both with new, matching AA batteries.
If the issue persists, there may be a hardware malfunction.
This answer is automatically generated
how to replace resistance bands
To replace the resistance bands on the Fitnation Flex Bike Ultra, follow these steps:
1. Shorten or Lengthen Bands (Adjust Resistance):
- Push the band up into the band locking compartment to shorten (increase resistance).
- Push the band down on one side of the handle into the locking compartment to lengthen (decrease resistance).
- If the band cannot be pushed from one side, try pulling from the other side.
2. Removing the Band:
- Hold the band underneath the handle and pull it out from the locking compartment.
- Pull the band out from the other side of the locking compartment.
3. Installing a New Band:
- Insert the new band into the locking compartment.
- Adjust the band to the desired length and resistance.
- Grab the band on either side of the locking compartment and pull tight to lock it in place.
- Ensure the band is secured tightly to prevent slipping during workouts.
If the band slips, it may need to be pulled more tightly for a secure fit.
This answer is automatically generated

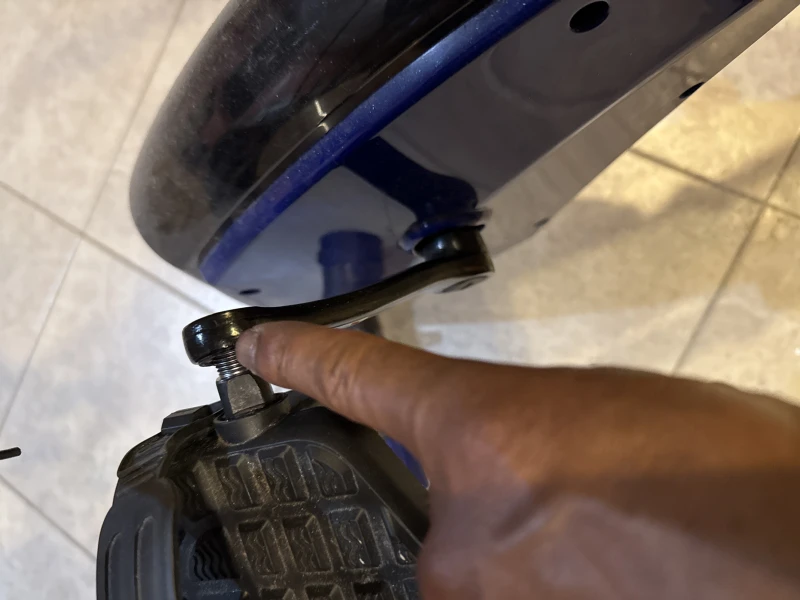

How ca we order a left crank arm and pedal
@Collin Dixon

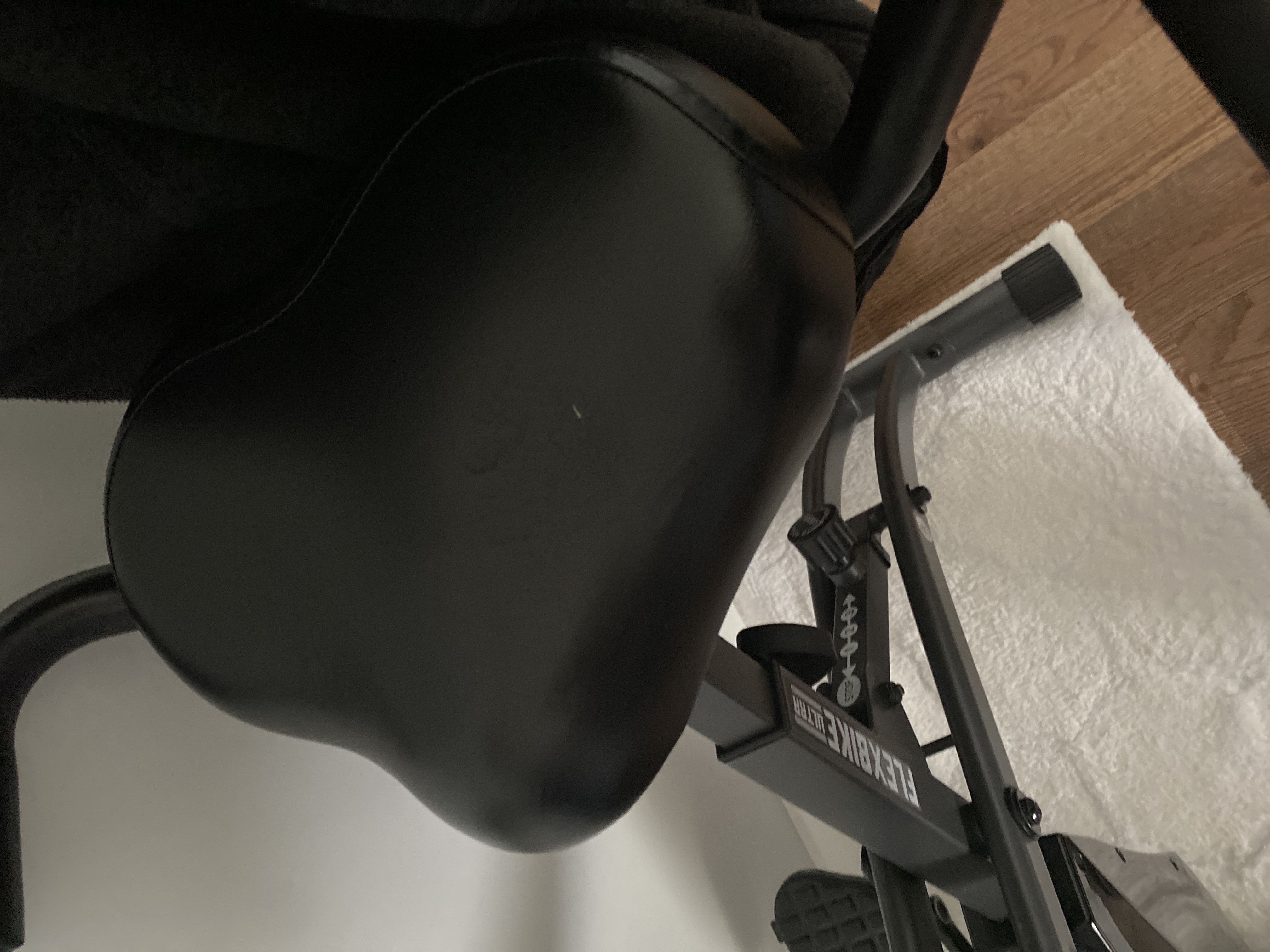

Where can you purchase a replacement seat for a flexible ultra
