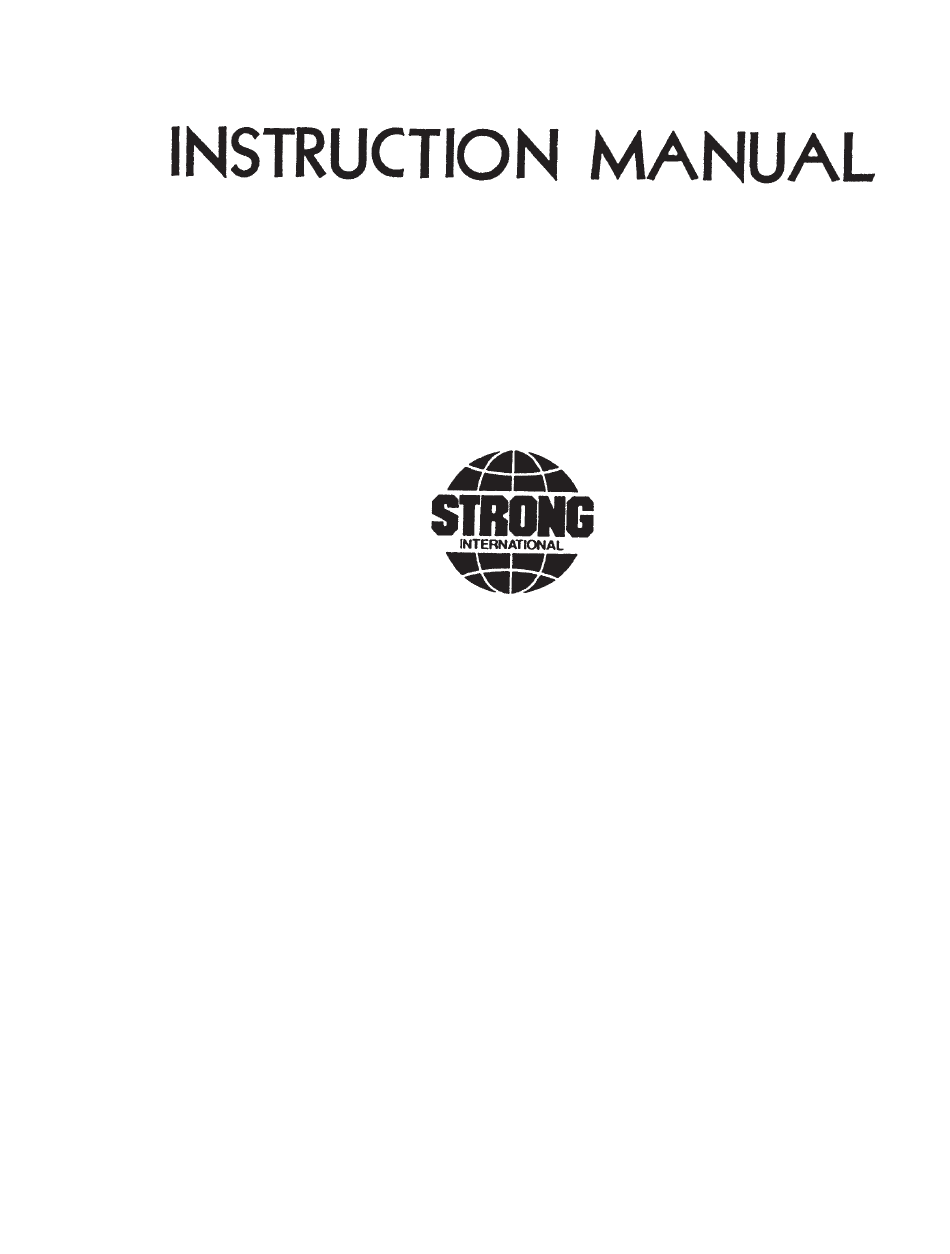

Strong International Super Trouper II Instruction Manual

Xenon follow spotlight
Hide thumbs Also See for Super Trouper II:

Advertisement

Quick Links

Download this manual
SUPER TROUPER II
Xenon Follow Spotlight
24000-5 (2 kW)
24000-6 (1, 1.6 kW)
Rev. January 2003
STRONG
INTERNATIONAL
a division of Ballantyne of Omaha, Inc.
4350 McKinley Street
Omaha, Nebraska 68112 USA
Tel 402/453-4444 • Fax 402/453-7238

Advertisement

loading
Need help?

Need help?

Do you have a question about the Super Trouper II and is the answer not in the manual?

Questions and answers

Related Manuals for Strong International Super Trouper II

Summary of Contents for Strong International Super Trouper II

  • Page 1 SUPER TROUPER II Xenon Follow Spotlight 24000-5 (2 kW) 24000-6 (1, 1.6 kW) Rev. January 2003 STRONG INTERNATIONAL a division of Ballantyne of Omaha, Inc. 4350 McKinley Street Omaha, Nebraska 68112 USA Tel 402/453-4444 • Fax 402/453-7238...
  • Page 3 An air flow switch at the rear lamphouse blower prevents operation of the xenon lamp if the blower is not operating, or if the airflow is inadequate. The Super Trouper II lamphouse, when using a factory-approved, ozone-free xenon bulb, requires no external exhaust system.
  • Page 4 Strong spotlights are urged to study the section following in this manual entitled OPERATION OF THE OPTICAL SYSTEM and to practice the operation of the Super Trouper II prior their first performance. The spot size control (“trombone”) handle is drawn back to “spot” and pushed forward to “flood,”...
  • Page 5 1. Cover, Lamphouse Compartment 9. Mounting Bracket, Leveling Foot 2. Fade-Out Control Lever 10. “T” Bolt, Folding Leg 3. Masking Blade Control Lever 11 Horizontal Swing Friction Adjust 4. Iris Control Lever 12. Horizontal Tilt Friction Adjust 5. Cover, Optical System 13.
  • Page 6 LAMPHOUSE - POWER SUPPLY Interconnection Diagram LAMPHOUSE (Connections Pre-wired) MS CONNECTOR Wire No, Conduit Remote - Auto Sustained 5 Amp. Grnd Dry Contact (by Installer as req’d.) Lamphouse Cable Assembly SYSTEM MUST BE GROUNDED All wiring must conform to local codes; shield lamphouse cable in conduit if required.
  • Page 7 Equipment Type 62-80106. If installing the Super Trouper II with an older model or type Strong xenon power supply, a ground wire must be connected to the power supply’s MS connector Pin M. Operation of the Super Trouper II with a xenon power supply other than a Strong 62-80106 will void UL compliance. ST2/005...

  • Page 8: Safety Procedures

    SAFETY PROCEDURES THE XENON BULB is highly pressurized. When ignited, the normal operating temperature of the bulb increases the pressure to a level at which the bulb may explode if not handled in strict accordance to the manufacturer’s operating instructions. The bulb is stable at room temperature, but may still explode if dropped or otherwise mishandled.

  • Page 9: Bulb Installation

    WHEN ORDERED for 1000 or 1600 watt operation, the adapters required to install either of these smaller bulbs in the Super Trouper II lamphouse are supplied in the accessory kit. The front bulb support for the 1000 and 1600 watt lamphouses is a cast yoke (65117) which holds the stem of the cathode adapter. A retainer plate (65151) and two thumb screws (65152) clamp the stem of the cathode adapter into the yoke.
  • Page 10 XENON BULB INSTALLATION REFLECTOR NEGATIVE CONTACT XENON BULB CLAMP POSITIVE CONTACT HEAT FILTER CLAMP NO ADAPTERS REQUIRED FOR 2000 WATT TYPE “HS” BULB See Parts List, Figure 2 for 2000 Watt Bulb Mounting ST2/008...
  • Page 11 1000, 1600 Watt Bulb Installation ASSEMBLE THE REQUIRED ADAPTERS to the 1000 or 1600 watt bulb as illustrated prior to inserting the bulb into the lamphouse. Be very careful not to apply any mechanical strain to the quartz envelope when installing adapters. Note the (2) different anode adapters; the longer anode adapter (24271) is for the 1000 watt Hanovia XH1000HS bulb only.
  • Page 12 2000 Watt Bulb Installation (continued) NOTE THE TWO NOTCHES at the center hole of the reflector. These notches allow addi- tional clearance between the grounded reflector and the energized bulb trigger wire. Rotate the bulb to align the trigger wire with one of these two notches to prevent the trigger wire from arcing to the grounded reflector. INSERT THE ANODE (+) PIN of the bulb into the rear support collet.
  • Page 13 BULB ALIGNMENT & LAMPHOUSE OPERATION PRIOR TO OPERATING THE SPOTLIGHT, verify the following conditions: The plastic protective cover has been removed from the xenon bulb. The strip heat filter is installed with the coated surface facing the bulb. The lamphouse access cover is in place and secured using all (3) phillips head screws;...
  • Page 14 THE TWO LARGE THUMB SCREWS to the left and right of the focusing control secure the horizontal and vertical position of the bulb. These two large thumb screws are spring-loaded to provide a degree of friction against the cast section of the control mechanism. BULB ADJUSTMENT CONTROLS Focus Control Thumb Screw...
  • Page 15 AFTER THE “HOT” SPOT is correctly positioned, tighten the two thumb screws to lock this adjustment in place. To verify that the bulb is at the optical centerline, turn the focus control clockwise to again project Spot “A.” The dark spot should remain centered in the spot projection as shown. ROTATE THE BULB FOCUS CONTROL (center section) to obtain the brightest light with even, flat light distribution (Spot “B”).

  • Page 16: Digital Display

    DIGITAL DISPLAY UPON ENERGIZING the LAMP circuit, the backlighting will illuminate the LCD screen. When the blower is operating and all access covers are closed and correctly secured, the display will appear as shown: 000V 000A 0000W 1234BLB 12345HR * FOR PURPOSES OF ILLUSTRATION, the above display indicates a non-operating bulb with 1,234 hours of use installed into a spotlight with 12,345 hours of operation.
  • Page 17 IF THE XENON BULB fails to ignite, additional diagnostic messages will display on the lower line of the LCD screen: CHECK PWR SUPPLY: If no DC current is sensed, and voltage does not exceed 125 V.DC, check the xenon power supply. Repair or replace as required. CHECK IGNITER: If the DC open circuit voltage reaches and exceeds 140 V.DC and the igniter fails to pulse, replace the igniter.
  • Page 18 HANDLING THE SPOTLIGHT THE SUPER TROUPER II can be operated from either side. Generally, the best position for the operator to stand is near the center of the spotlight, on the right hand side. The angle of tilt and the size or location of the porthole may alter the position for the most convenient operation.
  • Page 19 OPERATION OF OPTICAL SYSTEM THE IRIS CONTROL is the front lever which projects through the slots on the top of the optical system housing. When this lever is to the left (as viewed from the rear of the unit), the largest aperture is provided.
  • Page 20 THE COLOR BOOMERANG is equipped with six two-part filter holders (51928 gel frame with slide channel and 51376 cover plate). Six sheets of assorted color gels are included in the spotlight accessory kit. Additional colors and filter holders can be supplied by your Strong International Dealer. Specify ROSCOLUX or equivalent high temperature gels.

  • Page 21: Maintenance

    MAINTENANCE THE SUPER TROUPER II SPOTLIGHT SYSTEM requires very little maintenance to keep it in good working order. Routine cleaning is generally sufficient. THE REFLECTOR and the heat filter should be cleaned periodically with a clean, soft, lint free cloth to remove any dust from the coated surfaces. If excessively soiled, use a commercial liquid glass cleaner (i.e.

  • Page 22: Troubleshooting

    TROUBLESHOOTING NORMAL OPERATION WHEN THE SAFETY SWITCH in the main AC supply line to the xenon power supply is in the ON position, and the 30 ampere circuit breaker on the switching power supply is ON, the POWER light on the xenon power supply will glow.

  • Page 23: Trouble Chart

    EXCHANGE OF COMPONENTS (i.e. bulbs, igniters, power supplies) between similar Strong Super Trouper II’s to aid in diagnosis of a problem is encouraged. This will not lead to equipment damage, and will not void equipment warranty.
  • Page 24 TROUBLE CHART (continued) Bulb Fails To Ignite No DC current. Switch xenon power supply breaker ON. DC output level too low. Increase power supply output to rated bulb current. Low DC no load voltage from xenon power supply. Check no load voltage on digital display. Repair or replace power supply if no load voltage does not reach 140 V.DC.
  • Page 25 TROUBLE CHART (continued) Reduced Light Output (continued.) Bulb defocused or misaligned. Repeat bulb positioning adjustments. Soiled optics. Clean reflector, bulb, heat filter and lenses as outlined in MAINTENANCE section. Excessive Heat (Gels Burning) Xenon bulb misfocused. Focus bulb for even field at small spot (trombone handle back) with iris fully open;...
  • Page 26 Super Trouper II Lamphouse Xenon Bulb Ignition & Monitor Circuit ST2/024...
  • Page 27 Super Trouper II Control Circuit ST2/025...

  • Page 28: Parts List

    PARTS LIST Wiring Diagrams Ref. Desig. Part No. Description 23939 Blower, Dual Squirrelcage; 115 V.AC, 50/60 Hz. 25011 Blower, 6" Box Fan, Modified; 115 V.AC, 50/60 Hz. 80177 RF Suppression Capacitor, 2 x 1.0 µf, 600 WVDC 21-37058 Connector, (8) Position 21-37055 Connector, (2) Position 21-37056...
  • Page 29 VOLTAGE DIVIDER ASSEMBLY Cut this Jumper Wire when using 24275 PC Board in Super Trouper II Lamphouse 24275 VOLTAGE DIVIDER BOARD mounts to R1 Shunt Ref. Desig. Part No. Description C1-C5 61-08025 Capacitor, .005µf, 3 kV. D1-D4 51-17001 Diode, 1N4007 61-46002 Resistor, 100 Ohm, ¼...
  • Page 30 ST2/028...
  • Page 31 ST2/029...
  • Page 32 ST2/030...
  • Page 33 SUPER TROUPER II Parts List FIGURE 1 ST2/031...
  • Page 34 PARTS LIST Figure 1 Item Part No. Description 24021 Door & Top Cover, Welded Assembly 48930 Arc Viewing Port 4100503 Screw, 10-32 x 1/2" Phillips Head (3 req’d.) 4107101 Finish Washer, #10 71284 Cam Lock & Keys 25372 Security Screw, Hex Head 24150 Cover Plate, Bulb Adjust Mechanism 4100503...
  • Page 35 ST2/033...
  • Page 36 PARTS LIST Figure 2 Item Part No. Description 24317 Reflector, Dichroic Coated, 10" Diameter 4251250 Screw, 1/4-20 x 1-1/4" Socket Head (4 req’d.) P-3055 Compression Spring (4 req’d.) 4258001 Lock Nut, 1/4-20 Hex (4 req’d.) 24073 Bulkhead, Reflector Support 39191 Negative Contact Clamp, Bright Chrome 4080870 Clamping Screw, 8-32 x 7/8"...
  • Page 37 FIGURE 2 Parts List (continued) Item Part No. Description 24364 Bottom Cover, Center (Igniter Access) 65503 DC Pulse Igniter Assembly 24360 Mounting Bracket, Igniter 24361 Nylon Insulator, Igniter Post (2 req’d.) 24827 Negative Lead, Shunt to Cathode Contact Clamp 25011 Blower (B2), 6"...
  • Page 38 FIGURE 3 ST2/036...
