OWNER'S MANUAL
RVMaster
Powered by
TEAMBMPRO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVMaster and is the answer not in the manual?

Questions and answers

Related Manuals for BMPRO RVMaster

Summary of Contents for BMPRO RVMaster

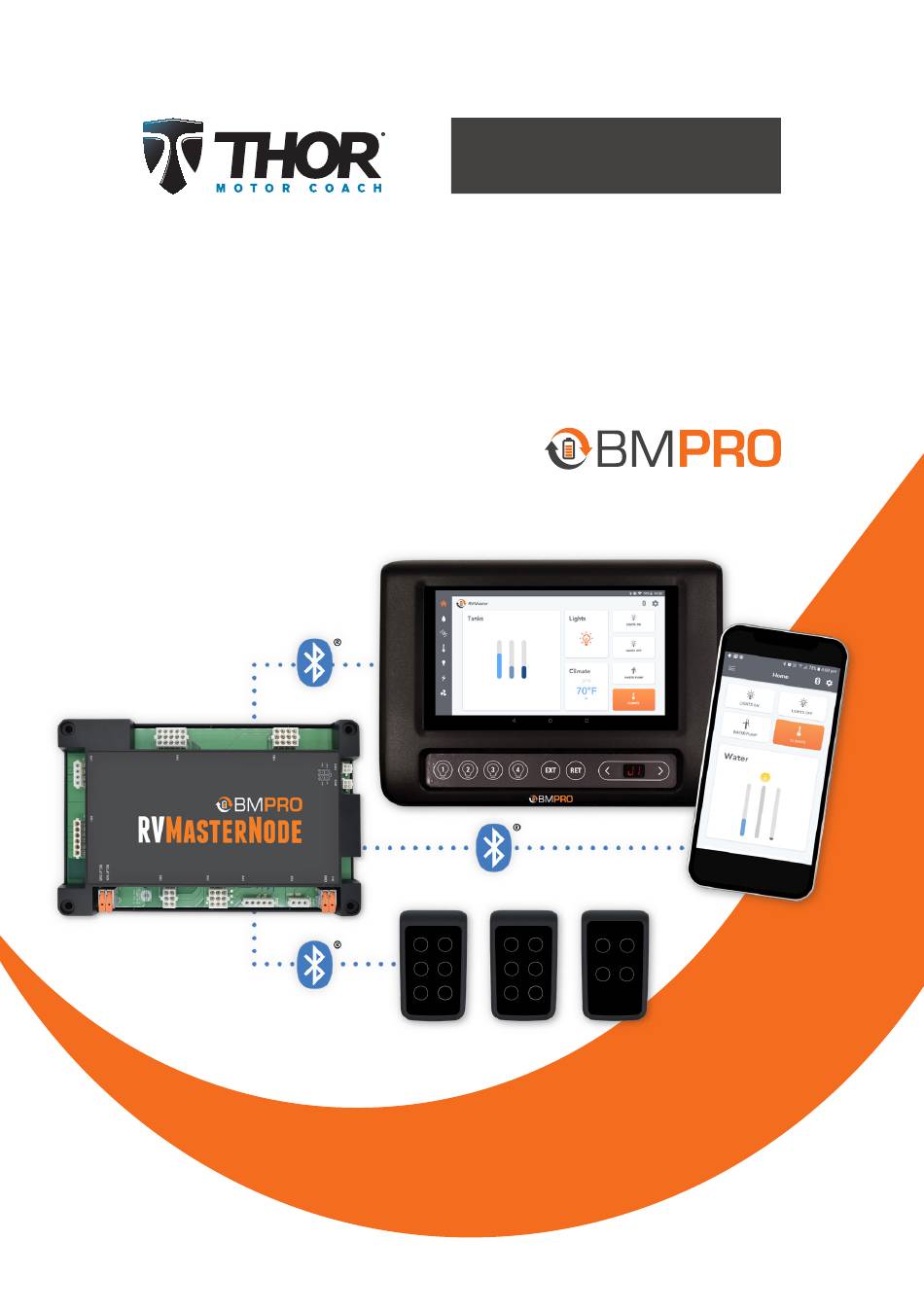

  • Page 1 OWNER’S MANUAL RVMaster Powered by TEAMBMPRO.COM...
  • Page 3 To learn more about the BMPRO range of products, please visit our website: teambmpro.com team bmpro .com...

  • Page 4: Safety Precautions

    Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol, thinners, benzene or any other chemical cleaner. The RVMaster is a high precision electronic product. It contains no user- serviceable parts inside. Do not try to dismantle, modify or repair it yourself.
  • Page 5 L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnemen AVERTISSEMENT out changement ou modification non expressément approuvé par BMPRO pourrait annuler la conformité du produit et le pouvoir de l’utilisateur d’utiliser cet équipement.

  • Page 6: About The Rvmaster

    RV functions, all from one convenient location in your RV. With a user-friendly, easy to understand app for Android and iOS, the RVMaster App brings information to your fingertips and allows monitor and control of your RV from up to 3 personal devices.
  • Page 7 Australia, and represent a high-quality product that will provide years of service. DISCLAIMER BMPRO accepts no liability for any loss or damage which may occur from the improper or unsafe use of its products. Warranty is only valid if the unit has not been modified or misused by the customer.

  • Page 8: Table Of Contents

    .......6 RVMASTERCONTROLLER .......9 DESCRIPTION OF PARTS .......9 MENU FUNCTIONS ......10 CONNECTING TO THE INTERNET ......11 UPDATING THE RVMASTER APP ON THE RVMASTERCONTROLLER ......11 THE RVMASTER APP ......12 COMPATIBLE DEVICES ......12 PAIRING TO THE RVMASTERNODE ......12 CLEARING THE RVMASTERNODE ......14 OPERATING THE RV FROM THE RVMASTER APP ......15...

  • Page 9: Rvmastercontroller

    Figure 2: The RVMasterController RVMASTERCONTROLLER TOUCHSCREEN BLUETOOTH Appears only if the RVMasterController is paired to the RVMasterNode SETTINGS ICON Access to the RVMaster App General Settings RETURN Navigate to previous page MAIN SCREEN Navigate to the RVMasterController’s tablet Android screen...

  • Page 10: Menu Functions

    LIGHTS Turn lights on and off for your: Living Room Kitchen Bath Ceiling Bed Ceiling MOTOR OPERATION To extend (EXT) and retract (RET) motors. These buttons are also used during the pairing process between the RVMasterNode and various devices such as the RVMasterController or smart phone. NAVIGATION BUTTONS Press either key to gain access and navigate through menu functions available from the Control Panel.

  • Page 11: Connecting To The Internet

    For more information, see FAQs and Troubleshooting. UPDATING THE RVMASTER APP ON THE RVMASTERCONTROLLER To automatically receive the latest updates for the RVMaster App, connect your RVMasterController to the internet and log in to your Google account. You can also get the latest updates direct from the Google Play Store. Just search for RVMaster in the Google Play Store and then press update.

  • Page 12: The Rvmaster App

    PAIRING TO THE RVMASTERNODE Pairing your RVMasterController or your own smartphone or tablet to the RVMasterNode is done in two easy steps and the RVMaster App will guide you through the pairing process. The RVMasterController will have been paired to your RVMasterNode at the factory.
  • Page 13 RVMasterNode (Figure 4). ‘PA’ will blink during the pairing process. Figure 4: Press EXT to pair Congratulations, you are now connected! Figure 5: Once connected, the RVMaster App will return to the Home Screen If you are having trouble connecting, see FAQs and Troubleshooting for more help.

  • Page 14: Clearing The Rvmasternode

    RVMasterNode and RVMasterController. After clearing, the RVMasterController will need to be paired to the RVMasterNode again. To clear the RVMasterNode of all previously paired devices: Go to the RVMaster App General Settings and click on Bluetooth Connection Rress UnpairRV to unpair the...

  • Page 15: Operating The Rv From The Rvmaster App

    RVMASTER APP HOME SCREEN The RVMaster App home screen provides a general overview of the key features of your RV. It also provides a quick way to turn on/off all RV interior lights, water pump and the RV’s climate system, direct from the home screen.

  • Page 16: Motors

    The motor screen provides access to operate any slides, awnings, bed-lifts or jacks available in the RV. As a safety precaution, the RVMaster App will disable all motor control if the vehicle’s ignition is running. This safety feature prevents any...

  • Page 17: Climate

    CLIMATE Control temperature of your RV from the climate screen. Choose from Cool, Cool Auto or Heat to adjust temperature between 60°F to 80°F or 16°C to 26°C. Cool will use the fan to achieve the target temperature and will only turn the compressor on if needed.

  • Page 18: Lights

    Figure 14: Lights Screen ENERGY CENTER Monitor coach and/or chassis voltages and gas consumption. If no coach and chassis batteries are connected, the RVMaster App will monitor the system voltage of the RVMasterNode. A warning sign will appear if voltage drops below 12V.
  • Page 19 Auto Generator Start (AGS) To use AGS from your RVMasterController, you may need to update the RVMaster App on the RVMasterController. When enabled (Figure 16), Auto Generator Start (AGS) will monitor battery and/ or climate levels and automatically turn the generator on and off to support these functions.
  • Page 20 Energy Settings Click on Energy Settings to set the parameters to control AGS usage. USE AGS TO SUPPORT Choose if AGS is to support battery levels, climate or both. BATTERY LEVELS Nominate the battery voltage (min) level which automatically starts battery charging from the generator.

  • Page 21: Fans And Vents

    Figure 18: Fans and Vents Screen GENERAL SETTINGS The General Settings may be accessed by selecting the Settings icon on the RVMaster App homescreen . Use the General Settings to: 9 Check Bluetooth Connection between the RVMasterNode and RVMasterController...

  • Page 22: Rvmasternode

    RVMasterNode. Notifications to update the RVMasterNode firmware may be received after updating the RVMaster App on the RVMasterController. These updates cannot be postponed. While the RVMasterNode is powered, update the RVMasterNode at the prompt to...

  • Page 23: Rvmasterswitch

    The RVMasterSwitch is powered by a standard, 3V Lithium Cell coin battery (CR2032). You can check if the battery needs replacing from the RVMaster App General Settings. Open the BLE Wall Switches settings, then press any button on the switch whose battery you are checking.

  • Page 24: Faqs And Troubleshooting

    If the RVMasterController is connected to the internet and logged into a Google account, it may automatically receive RVMaster App updates and notifications. RVMaster App updates may also be searched from the Google Play Store. Open Google Play and search for RVMaster to find the latest app updates.
  • Page 25 Figure 24: Navigate to the ‘OF’ function Press EXT to wake the display on the RVMasterController (Figure 25). This will put the RVMaster in standby mode and turn off the lights. Figure 25: Press EXT to wake the display Press to take the RVMaster out of standby mode and begin using the RVMaster App (Figure 26).
  • Page 26 RVMasterNode to communicate to the RVMasterController and for the app to start. If the RVMaster App still has issues starting and is frozen on the logo page (Figure 27), clear the app data on the RVMasterController then relaunch the app.

  • Page 27: Pairing With The Rvmasternode

    Tap on Storage Tap on Clear Data and press OK at the prompt to clear the RVMaster App data (Figure 29) Return to the Main screen and relaunch the RVMaster App Figure 29: Clear RVMaster App data PAIRING WITH THE RVMASTERNODE I tried pairing my smartphone to the RVMasterNode but it didn’t connect?

  • Page 28: Rvmasterswitch

    RVMASTERSWITCH I’ve replaced the RVMasterSwitch in my RV, but it doesn’t work? You need to pair the RVMasterSwitch to the RVMasterNode before you can use the switch. The RVMasterSwitch is paired to the RVMasterNode in four steps: Using the < or > button on the RVMasterController, navigate to the ‘PA’ menu item (Figure 30).

  • Page 29: Specifications

    Specifications RVMasterNode Input Voltage Range: 8V-15V DC Ambient Temperature: -4°F to 140°F or -20°C to 60°C IP Rating: IP20 FCC 47 CR15.109, CAN ICES-3 (B) / NMB-3 (B), IEC 61000-4-2 Level III, Approvals: IEC60068-2-27 Table A.1, IEC 60068-2-64 Spectrum A.3 Category 1 RVMasterController Input Voltage Range: 8V-15V DC...

  • Page 30: Limited Warranty Terms And Conditions

    BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a product to initiate a warranty claim.
