Hubbell Kim Lighting Wall Forms WF30H Series Installation Instructions

WALL FORMS
Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
CAUTION: Use only the lamp type and watts shown on the fixture label on the electrical assembly. The fixture
label must indicate the same electrical data as the ballast label. KEEP THIS SHEET FOR FUTURE REFERENCE.
IMPORTANT! All "H" recessed models (for hollow stud walls) are supplied with an insulation detector
(HID and Incandescent). No insulation is permitted above the housing or within 3" of sides and
bottom. Detector will cut power if fixture overheats due to insulation.
Tools Required: Flat Blade Screwdriver

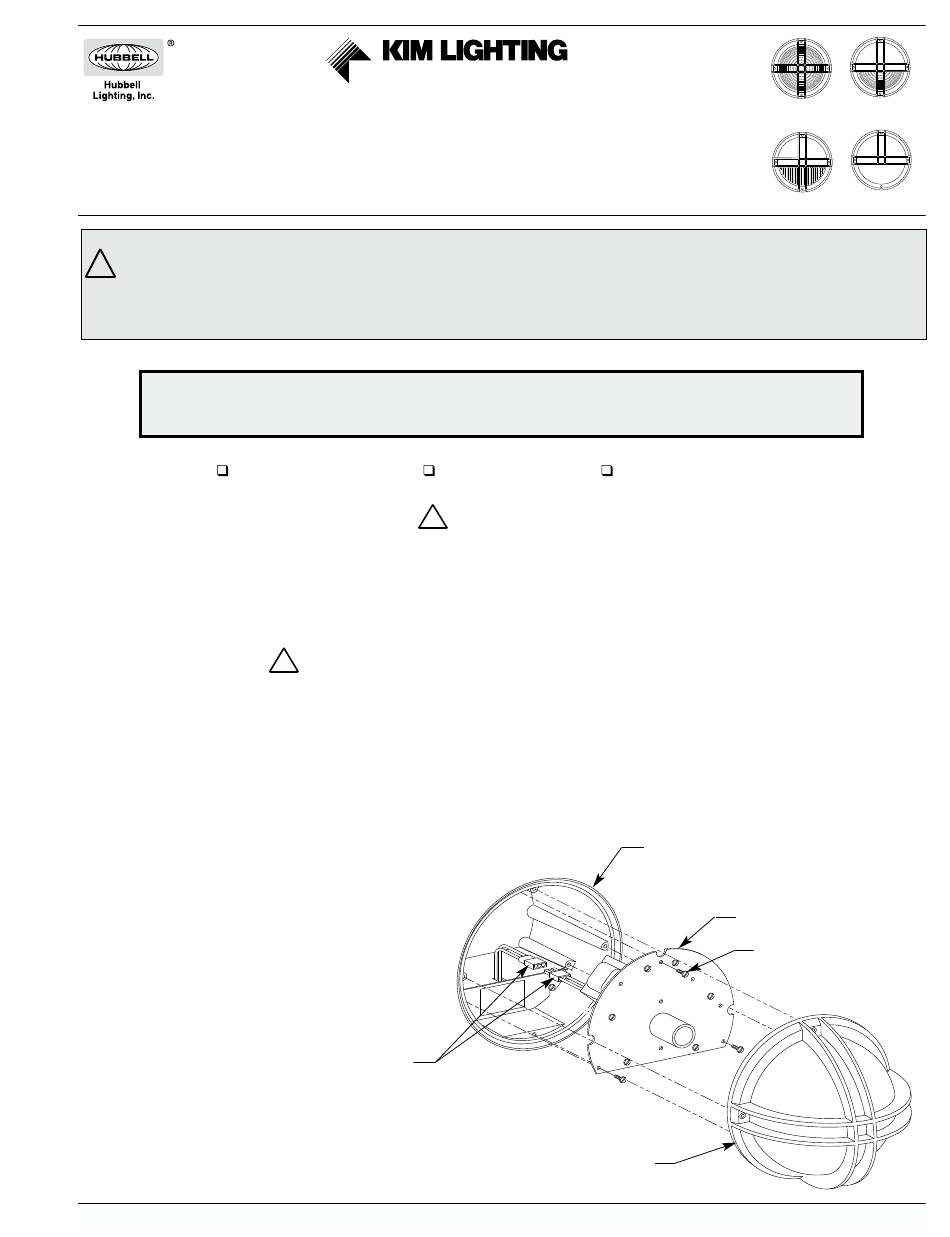

ELECTRICAL ASSEMBLY INSTALLATION:
1. Remove fiberboard cover from front of housing. The cover and the screws may be discarded.
2. Remove the three (3) mounting screws from the bosses around the inside perimeter of the housing.
3. Connect quick disconnect plug assemblies.
4. Install the electrical assembly into the housing. Make certain no wires are pinched within the fixture and install
mounting screws.
LAMP INSTALLATION:
1. Screw the proper lamp (as per fixture label) into the socket and tighten the lamp sufficiently to ensure a vibration
safe installation. L.E.D. if offered in 15W or 30W.
DIFFUSER FRAME ASSEMBLY INSTALLATION:
1. Check that the flange area of the housing is clean and free of any concrete or paint build-up. Make sure there is
no dirt in the four (4) screw holes on the inside of the circular flange.
2. Before installing the diffuser frame assembly, always coat the
four 10-32 captive screws with silicone grease.
3. Install the diffuser frame assembly by tightening
the four screws progressively and evenly to
insure even gasket seating
around the frame.
DO NOT exceed 20 in-pounds
torque on these screws.
Revised 9/01/10 EC 100901003
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
Round - WF30H Series
®
B" Allen Wrench
!
!
Make sure electricity is OFF before installing lamp.
Quick
Disconnect Plugs
Status 10
Silicone Grease
Make sure electrical supply is OFF before installing equipment.
Diffuser Frame
W30H
W32H
Housing
Electrical Assembly
Mounting Screws
Part No. 95534
WF31H
WF33H
