User Manual
2.2 KW PRESSURE
WASHER
Original User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FERREX Q1W-SP07-2200A
Summary of Contents for FERREX Q1W-SP07-2200A
- Page 1 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 90593 +353(0) 19022605 +44(0) 1904727501 support@coreservice.co.uk YEAR MODEL: WARRANTY Q1W-SP07-2200A 03/2020 Original User Manual...
-
Page 2: Overview
Overview OF F... - Page 3 Overview...
-
Page 4: Package Contents/Device Parts
Package contents/device parts Package contents/device parts Handle (height-adjustable) High-pressure hose (with hose clamp) Hand crank (foldable) Cleaning pin ON/OFF switch Holder for the spray gun Screw connection for the water inlet hose (with adapter) Button (height adjustment for the handle) Cleaner container Mains cord Spray gun (with a swivelling lance) -
Page 5: Table Of Contents
Table of content Table of content Overview........................2 Package contents/device parts................4 General information....................6 Reading and storing the operating manual..............6 Proper use...........................6 Explanation of symbols...................6 Safety........................8 Safety notes........................8 Before first use....................... 13 Checking the washer and scope of supply..............13 Assembling the washer....................14 Operation....................... -
Page 6: General Information
General information General information Reading and storing the operating manual This user manual accompanies this 2.2 kW high pressure washer (referred to below only as “washer”). It contains important information on start-up and handling. Before using the device, read the operating manual carefully, in particular the safety instructions. - Page 7 Explanation of symbols This symbol provides you with useful additional information on handling and use. Caution! Read the user manual prior to start-up! This symbol indicates that the mains plug must be disconnected from the power supply immediately if the cord is damaged, twisted or knotted, if it has been severed, or if the washer is left unsupervised, even for a short period of time.
-
Page 8: Safety
Safety Safety The following signal words are used in this operating manual. This signal symbol/word denotes a WARNING! hazard with an average risk level that could lead to death or severe injury if it is not avoided. This signal word provides a warning NOTE! about potential material damage. - Page 9 Safety - If the supply cord of the washer is damaged, to avoid risks it must be replaced by the manufacturer or its After Sales Support or by a person with similar qualifications. - Do not open the housing; instead, have a qualified professional carry out the repairs.
- Page 10 Safety WARNING! Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children). - This washer may be used by persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge if they are supervised or have been instructed in how to safely use the washer and have understood the risks...
- Page 11 Safety cord reel that keeps the socket at least 60 mm above the ground. WARNING! Risk of injury! High-pressure jets may be dangerous if used improperly. - The high-pressure jet must not be pointed at persons, active electrical equipment or at the washer itself. - Do not use the washer within range of other persons unless they are wearing protective clothing.
- Page 12 Safety WARNING! Risk of injury! Even if you use this washer in compliance with applicable regulations, there are always residual risks. The following risks associated with the construction and design of this washer may occur: - Injury to health attributed to hand and arm vibrations if the washer is used over a prolonged period of time or if it is not guided and maintained properly.
-
Page 13: Before First Use
Safety NOTE! Risk of damage! Improper handling of the washer may result in damage to the washer. - Do not use the washer if a connection line or important parts of the washer are damaged, e.g. safety equipment, high pressure hoses, spray gun, etc. - High-pressure hoses, fittings and couplings are important for guaranteeing the safety of the device. -
Page 14: Assembling The Washer
Before first use 3. Check whether the washer or the individual parts exhibit damage. If any damage is visible, do not use the washer. Contact the manufacturer at the service address specified on the warranty card. Assembling the washer WARNING! Rist of injury! The washer could be inadvertently activated and cause injury. -
Page 15: Operation
Operation Operation Starting the washer NOTE! Risk of damage! Improper handling of the washer may result in damage to the washer. - Familiarise yourself with all control elements before starting up the washer. Before each use, make sure that the washer is functional. -
Page 16: Adjusting The Handle
Operation 3. Close the water tap for the water inlet. 4. Push the trigger until the pressure in the washer has been released. 5. Lock the trigger by pushing downwards onto the safety lock Adjusting the handle The handle can be adjusted in two positions. The washer is supplied with a lowered handle. -
Page 17: Using The Cleaning Attachments
Using the cleaning attachments Using the cleaning attachments Fitting the spray lance WARNING! Risk of injury! The high-pressure jet is very hard and can inflict injury. - Start using the washer by working at a substantial distance and reduce this as needed. The spray lance is equipped with a quick lock to assist in changing the... -
Page 18: Fitting The Vario Pressure Nozzle
Using the cleaning attachments Place the turbo nozzle on the quick lock of the spray lance in such a way that the small rectangular elevation fits exactly into the rectangular recess in the spray lance 2. Press the turbo nozzle down firmly on the spray lance. The yellow button of the quick lock clicks once the nozzle is positioned correctly. -
Page 19: Using The Washer
Using the cleaning attachments 2. Push the trigger until the pressure in the washer has been released. 3. Push the wash brush slightly in the direction of the spray gun and turn the wash brush anticlockwise at the same time. 4. -
Page 20: Cleaning And Care
Using the washer 5. Guide the hose back into the cleaner container and screw the cap back on. 6. Use the washer with the desired cleaning attachment. Cleaning and care WARNING! Risk of electric shock! Cleaning and maintenance of the washer while it is connected to the mains may lead to an electric shock. -
Page 21: Cleaning The High-Pressure Nozzles
Cleaning and care Cleaning the high-pressure nozzles Remove the cleaning pin from the back of the washer. 2. Use the cleaning pin to clean the high-pressure nozzles of the cleaning attachments. 3. Re-insert the cleaning pin in the rear of the washer. Storage NOTE! Risk of damage! -
Page 22: Troubleshooting
Troubleshooting Troubleshooting WARNING! Risk of injury! Tampering with the washer could pose a risk to life from electric shock, damage the washer and void warranty claims. - Do not make any modifications to the washer. The following table provides assistance in the event of malfunctions. If the solutions provided here are unsuccessful, contact the manufacturer or an authorised service centre at the service address specified on the warranty card. -
Page 23: Technical Data
Contact the manufacturer or connections have a leak. an authorised service centre at the service address specified on the warranty card. Technical data Model: Q1W-SP07-2200A Product code: 90593 Power consumption: 2200 W Operating pressure: max. pressure: 15 MPa (150 bar) - Page 24 Technical data Nominal pressure: 11 MPa (110 bar) Input pressure/temperature max.: 1,0 MPa (10 bar) / 40 °C Power consumption: Sound power level: 91,9 dB(A) (uncertainty K : 2,28 dB(A)) Guaranteed sound power level: 94 dB(A) Sound pressure level: 78,9 dB(A) (uncertainty K : 3 dB(A)) Vibration emission value...
-
Page 25: Declaration Of Conformity
Original EU Declaration of Conformity MEROTEC GmbH Otto-Brenner-Str. 8, D-47877 Willich, Germany herewith declare under our own, sole responsibility that our product High Pressure Water Cleaner Model no. Q1W-SP07-2200A complies with the following directives: 2006/42/EC Machinery Directive 2014/30/EU EMC Directive... -
Page 26: Spare Part List
Spare part list Spare part list Spare part Part number Order number (see package contents page 6) Hand crank (foldable) 1172B10 Cleaning pin 1142005 Adapter for the water inlet 1151C01 Cleaner container 1175022 Cleaner container cap 1119003 Spray gun (with a swivelling 01106BG lance) Spray lance... - Page 27 Disposal environment are avoided. Therefore, electrical devices are marked with the above symbol.
Need help?
Do you have a question about the Q1W-SP07-2200A and is the answer not in the manual?
Questions and answers
Can I get a replacement hose as the hose has a leak in the middle of it. I have disconnected the hose now at both ends I e from the spray gun and from the reel
Contact the manufacturer or an authorized service center at the service address specified on the warranty card to obtain a replacement hose for the FERREX Q1W-SP07-2200A.
This answer is automatically generated

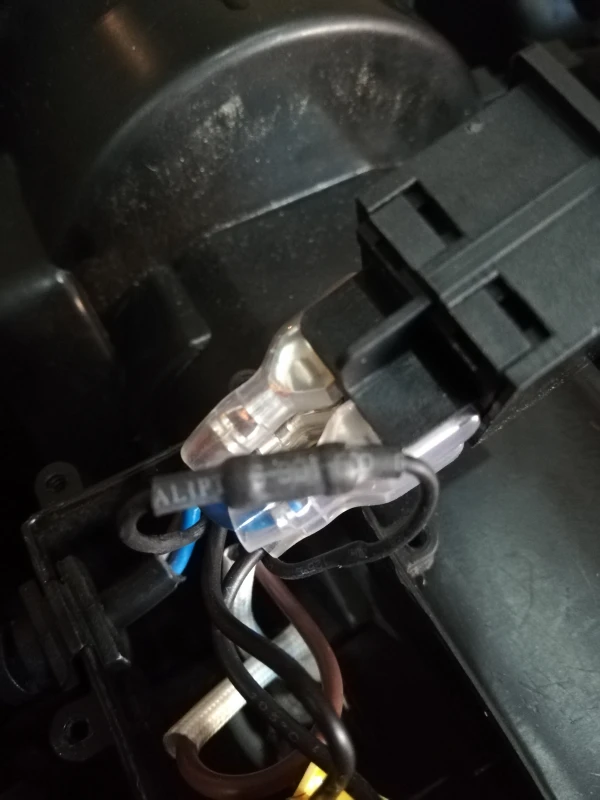

مضخة الغسل لا تعمل واني أشكل الفيوز ولكن لا اعرف شكله وموقعه داخل الجهاز
