Starter: Removal - Refitting - Renault F4R Manual

K4M, and 848
Tightening torquesm
starter supply wiring nut
starter excitation wiring
nut
exhaust manifold stay
nut on the exhaust
manifold
exhaust manifold stay
bolt on the cylinder
block
clip on the throttle valve
air inlet pipe
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove the front engine cover.
a Loosen the clip on the throttle valve air inlet pipe.
a Disconnect the air outlet pipe from the air filter unit.
a Remove:
- the air outlet pipe to the air filter unit,
STARTING - CHARGING

Starter: Removal - Refitting

8 N.m
5 N.m
44 N.m
44 N.m
6 N.m
135239

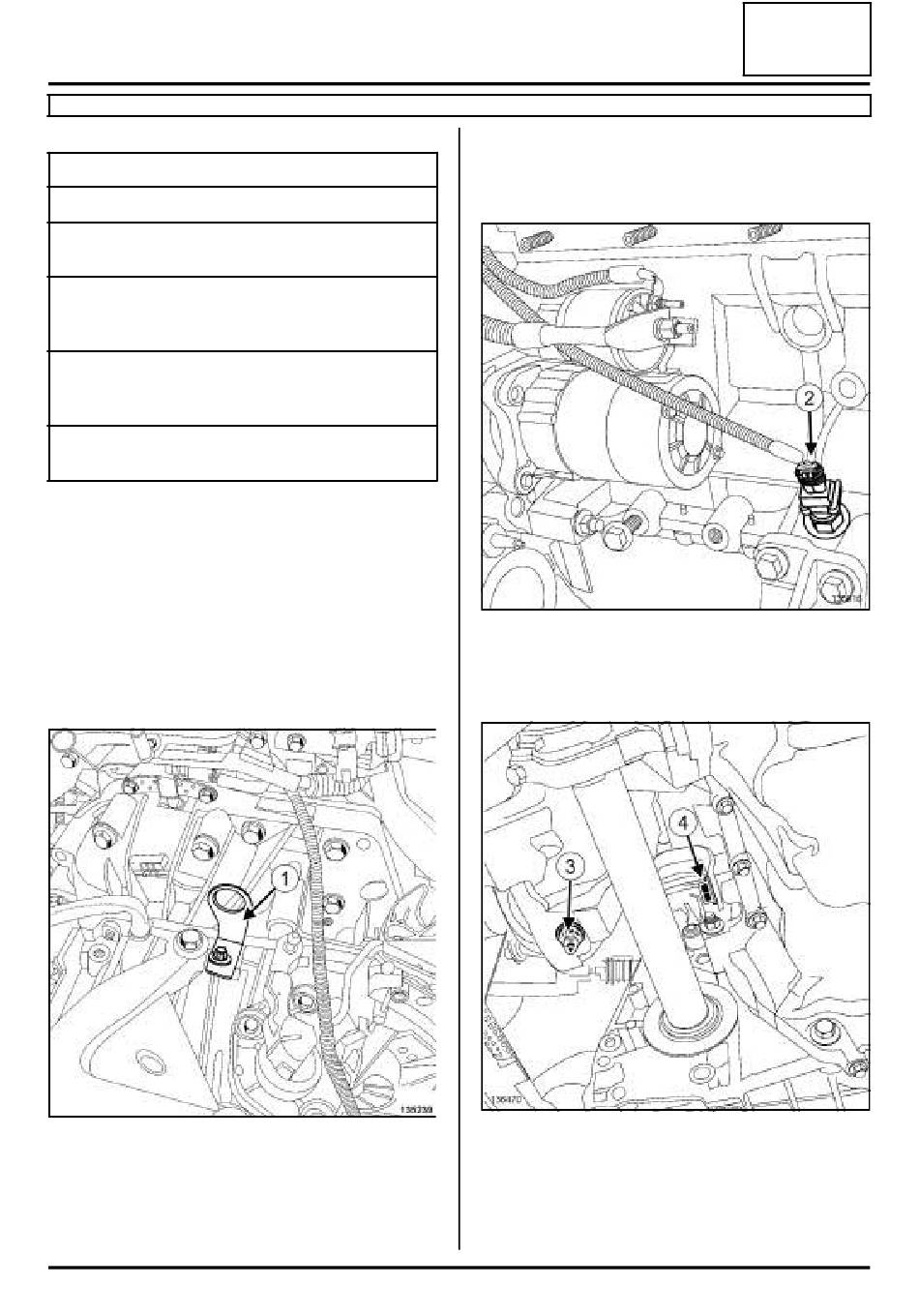

- the gearbox lifting eye (1) ,
- the engine undertray bolts,
- the engine undertray,
a Disconnect the connector (2) from the oil level sen-
sor.
a Move aside the wiring of the oil level sensor.
a Remove:
- the exhaust manifold strut nut (3) from the exhaust
manifold,
- the exhaust manifold strut bolt (4) from the cylinder
block,
16A-16
16A
135916
136470
