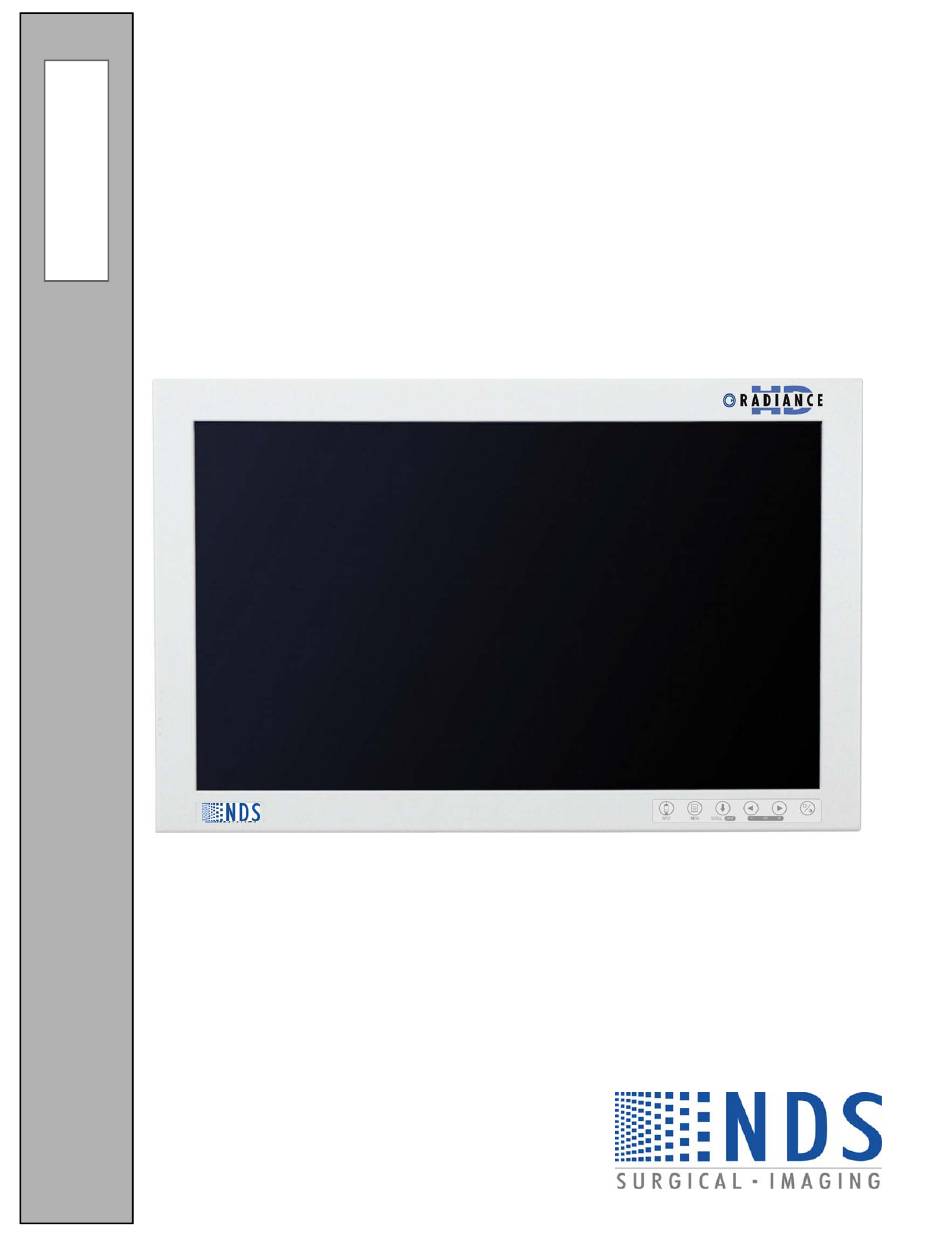

- Page 1 Radiance 42” and 55” HR Medical Displays...
-
Page 3: Table Of Contents
Table of Contents Tab 1 Safety Considerations --------------------------------------------------------------------------- ii Recycling------------------------------------------------------------------------------------------ ii Declarations of Conformity-------------------------------------------------------------------- iii Limited Warranty ------------------------------------------------------------------------------- iii Tab 2 About This Manual ------------------------------------------------------------------------------ 1 Quick Startup ------------------------------------------------------------------------------------- 1 Powering On The Unit------------------------------------------------------------------------ 1 First Time Users and Initial Test ------------------------------------------------------------ 1 Tab 3 Connector Panels--------------------------------------------------------------------------------- 2 Tab 4... -
Page 4: Recycling
CAUTION This symbol alerts the user that important literature concerning the operation of this unit has been included. Therefore, it should be read carefully in order to avoid potential problems. This symbol warns user that un-insulated voltage within the unit may have sufficient magnitude to cause electrical shock. -
Page 5: Declarations Of Conformity
Declarations of Conformity FCC and Council Directives of European Standards: This device complies with Part 15 of FCC rules and 93/42/EEC of the Council Directives of European Standards. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable results. -
Page 6: About This Manual
About This Manual This manual is designed to assist the user with proper installation, setup and operation of the Radiance Medical LCD display. Depending on the model and options that were purchased, some of the features and options in this manual may not apply to the display you are using. -
Page 7: Connector Panels
Connector Panels Notes 1. An S-Video signal may be applied via 2 BNC terminated cables to the Y and C labeled BNC connectors or a DIN 4 terminated cable, but not both. 2. RGBS and YPbPr signals may be applied via the HD-15 connector or the R/Pr, G/Y, B/Pb and CSYNC BNC connectors. -
Page 8: Tab 4 Control
Control A 6 button keypad, located on the front of the display in the bottom right corner, allows the user to make adjustments to various display parameters using the On Screen Menus (OSM) system. Image Adjustments Adjust Brightness Press the Brightness / Contrast button to display the Brightness control menu. Press the ◄... -
Page 9: Menu Systems Overview
Menu Systems Overview Press the MENU button once to open the Menu System. The current video input is shown in the Display Mode tab on the top right of the menu. The Menu System opens with Picture menu displayed. Press the ◄ or ► button to select the menu you want to work with, then press the SCROLL button to select the parameter. -
Page 10: Video Source
Video Source Inputs Menu When the display is powered on Auto Source Select looks at the previously selected video source first. If a signal is present it is displayed, otherwise Auto Source Select starts scanning the inputs for a signal. The Input menu will automatically turn off 30 seconds after the most recent button press. -
Page 11: Pip And Swap
PIP and Swap Selecting a secondary input displays a small image of the data connected to secondary source in the upper right corner of the display. Secondary Image Size Control The size of the secondary image is controlled by pressing ◄ or ► buttons. Pressing the ► button will cycle through: Small = ~ 25% of Primary height in upper right corner. -
Page 12: Gpio
GPIO General Purpose Input Output (GPIO): The GPIO control allows the user to step through the Secondary image sizes as described on page 6, swap the Primary and Secondary images or display a Record indicator in the upper left corner of the display. Refer to the Input Menu shown below when setting up the Primary and Secondary inputs. -
Page 13: Display Set Up
Setting Up the Display SDI Picture Menu S-Video Picture Menu Composite Picture Menu Horizontal Position Moves the image to the left or right. Press to horizontally center the image. Vertical Position Moves the image up or down. Press to vertically center the image. Sharpness Press to adjust the sharpness (focus) of the displayed image. -
Page 14: Vga / Sog Picture Menu
VGA / SOG Picture Menu RGBS / YPbPr Picture Menu Horizontal Position Moves the image to the left or right. Press to horizontally center the image. Vertical Position Moves the image up or down. Press to vertically center the image. Sharpness Press to adjust the sharpness (focus) of the displayed image. -
Page 15: Dvi-Digital Picture Menu
DVI Digital Picture Menu Sharpness Press to adjust the sharpness (focus) of the displayed image. Note: Cannot be adjusted when the display is operating at native resolution. Scaling Fill = Expands the video image to fill the entire screen. The aspect ratio may not be accurately displayed. Aspect = Expands the video image until its largest dimension fills the screen. -
Page 16: Color Menus
Color Menus DVI, VGA and SOG SDI, RGBS, YPbPr, S-Video and Composite Gamma (DVI, VGA and SOG) Press ◄ or ►to select a preset Gamma, Video or PACS Notes: 1. Video is a color corrected Look Up Table (LUT) available with DVI, VGA and SOG. 2. -
Page 17: Setup Menu
Setup Menu Menu Position Places the menu in 1 of 9 predefined screen positions. Press the button to select any of the 9 screen positions. Language Selects 1 of 7 languages: English, Deutsch, Francais, Italiano, Scandinavia, Espanol or Dutch. Press the button to select any of the 7 languages. -
Page 18: Defaults Menu
Defaults Menu Factory Defaults Displays Restoring Factory Defaults message and returns all settings to their factory preset values. Press the SCROLL button to highlight Factory Defaults, then press the button. Note: Restoring Factory Defaults takes 60 to 75 seconds. User Defaults Allows up to five customized user settings to be saved. -
Page 19: Troubleshooting
Troubleshooting Section Image Size is Very Large for the Screen If the computer data does not appear to be the correct format, then SmartSync™ must be run. To run SmartSync™, press the Menu button. Select the Setup menu. Press SCROLL to highlight SmartSync™ , then press the button. -
Page 20: Radiance Drawings And Dimensions
Radiance Drawings and Dimensions Radiance 42... -
Page 21: Radiance 55
Radiance 55... -
Page 22: Data Connectors And Pin Outs
Data Connectors and Pin Outs DVI-D* RGBS / YPbPr Digital Input 1 RED 6 GND RED 11 N. C. PIN# SIGNAL PIN# SIGNAL 2 GREEN 7 GND GREEN 12 N. C. T.M.D.S. DATA 2- HOT PLUG DETECT 3 BLUE 8 GND BLUE 13 C. -
Page 23: Gpio Connectors And Pin Outs
GPIO Connectors and Pin Outs General Purpose Input and Output (GPIO) Swap Pressing the Swap button swaps the position and size of the Primary and Secondary images. PIP Size The size of Secondary image increases each time the PIP Size button is pressed. See page 6 for details. Record Indicator The Record Indicator is displayed while a contact closure to the ground pin is present, the indicator is removed when the contacts are opened. -
Page 24: Specifications
Specifications Model SC-WU42 SC-WU55 42.0 54.6 Viewable Diagonal (inches) Brightness (cd/m², typical) 1920 x 1080 1920 x 1080 Native Resolution .485 Dot Pitch (mm) Vertical Viewing Angle (degrees) Horizontal Viewing Angle (degrees) 700:1 550:1 Contrast Ratio (nominal) Vertical Freq (Hz, max) Bandwidth (MHz, max) 0.7 V p-p 0.7 V p-p... -
Page 25: Video Inputs
Video Inputs Connector Type HD-SDI / SDI BNC, 75 Ohm terminated S-video BNC x 2 (Y & C), 75 Ohm terminated S-video DIN-4 RGBS / YPbPr BNC x 5, 75 Ohm terminated RGBS / YPbPr HD-15 Composite BNC, 75 Ohm terminated Sync-On-Green (SOG) BNC, 75 Ohm terminated Graphics Inputs... -
Page 26: Contact
U.S.A. Headquarters Europe Headquarters NDS Surgical Imaging, LLC NDS Surgical Imaging, BV 5750 Hellyer Avenue Nijverheidscentrum 2D San Jose, CA 95138 2761 JP Zevenhuizen (ZH) The Netherlands Tel: 408.776.0085 Tel: 0031 180 63 43 56 WWW.NDSSI.COM Fax: 408.776.9878 Fax: 0031 180 63 21 91 EMail:sevice@ndssi.com...
