Summary of Contents for jobmate YT5452
-
Page 2: Table Of Contents
CONTENTS Know Your Product....................4 Technical Specifications..................4 Description of Symbols..................5 Contents of Electric Shredder................6 General Safety Instructions................... 7 Additional Safety Instructions for Electric Shredder..........9 Assembly Instructions.................... 9 Operation....................... 10 Starting......................10 Stopping ......................10 Tips for Using Your Electric Shredder.............. 10 Maintenance...................... -
Page 3: Know Your Product

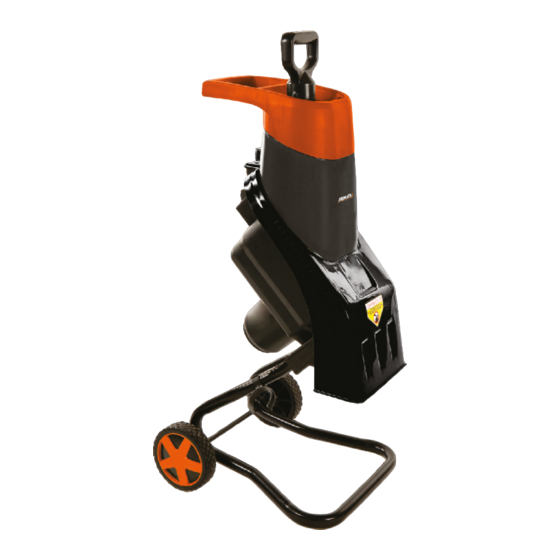

KNOW YOUR PRODUCT 1 Hopper Locking Knob 2 Reset Button 3 Motor 4 Stand Assembly 5 Axle 6 Hopper 7 Main Body 8 Power On/Off Trigger Switch 9 Paddle 10 Paddle Holder 11 Wheels (two) TECHNICAL SPECIFICATIONS Voltage: 230V/50HZ Rated power: 2400W Cutting capacity: 38cm... -
Page 4: Description Of Symbols
DESCRIPTION OF SYMBOLS The rating plate on your tool may show symbols. These represent important information about the product instruction on its use. Denotes risk of personal injury, loss of life, or damage to the tool in case of nonobservance. Use eye protection. -
Page 5: Contents Of Electric Shredder
DESCRIPTION OF SYMBOLS (CONT.) Disconnect from power supply when tool needs repairs. This symbol is known as the ’Crossed-out Wheelie Bin Symbol’. When this symbol is marked on a product or battery, it means that it should not be disposed of with your general housed hold waste. Some chemicals container within electrical/electronic products or batteries can be harmful to health and the environment. -
Page 6: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all the instructions listed in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) Work area •... - Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) that have the switch may cause an accident. • Remove any adjusting key or wrench before turning the power tool on. A wrench or key left attached to a rotating part of the power tool may result in personal injury.
-
Page 8: Additional Safety Instructions For Electric Shredder
ADDITIONAL SAFETY INSTRUCTIONS FOR ELECTRIC SHREDDER • Do not use appliance other than for intended use. • Maintain labels and nameplates on the appliance. These carry important safety information. If unreadable or missing, contact the point of purchase for a replacement. -
Page 9: Operation
ASSEMBLY INSTRUCTIONS (Cont.) 5. Turn the main body upside down, insert Fig. 5 the two ends of the stand assembly into the housing, align the holes on the housing and stand assembly, insert the four washers onto the screws (A) and install into the stand assembly. - Page 10 OPERATION (Cont.) Safety Switch (Remove To Lock Fig. 7) As a safety precaution, the safety switch may be removed when you are not using the shredder to prevent children from starting it accidently (See Fig. 7). The shredder cannot be started when the safety switch is removed. Blades The blades on the rotary plate are reversible.
-
Page 11: Maintenance
MAINTENANCE WARNING! Always turn off the garden shredder and unplug the power cord from the outlet before maintaining the shredder. WARNING! Always wear gloves when cleaning. 1. Cleaning garden shredder: (See Fig. 8) a) Unscrew the hopper locking knob (D) counter clockwise and open the hopper. b) Clean cutting blades and discharge area and remove wood sticks or objects that may clog the blades. -
Page 12: Warranty
WARRANTY POLICY Congratulations on your purchase of Electric Shredder. In order to get maximum benefit from your new purchase, please be aware of the warranty provisions outlined in this document. 2 YEAR [REPLACEMENT/REPAIR] WARRANTY Your Electric Shredder is guaranteed for a period of 24 months from the original date of purchase. - Page 13 Mitre 10 or Mitre 10 MEGA store where the product was purchased from, for the warranty to be applicable. Please retain your Proof of Purchase. Only the original owner is covered by the manufacturer’s warranty and must have purchased the product from a Mitre 10 or Mitre 10 MEGA store in New Zealand. What is not covered under warranty? •...
