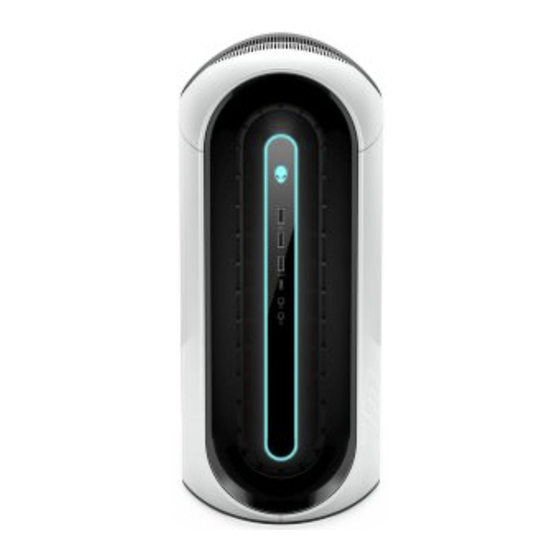

- Page 1 Alienware Aurora R9 Setup and Specifications Regulatory Model: D23M Regulatory Type: D23M002...
- Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. © 2018 - 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your computer..........................4 2 Views of Alienware Aurora R9......................7 Front...................................... 7 Back.......................................8 Back panel.................................... 9 3 Specifications of Alienware Aurora R9....................11 Dimensions and weight............................... 11 Processors.....................................11 Chipset....................................11 Operating system.................................11 Memory....................................12 Ports and connectors................................12 Communications.................................. -
Page 4: Set Up Your Computer
Set up your computer 1. Connect the keyboard and mouse. 2. Connect to your network using a cable, or connect to a wireless network. 3. Connect the display. - Page 5 NOTE: The DisplayPort on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer. NOTE: If you have two graphics cards, the card installed in PCI-Express X16 (graphics slot 1) is the primary graphics card.
-
Page 7: Views Of Alienware Aurora R9
Views of Alienware Aurora R9 Front 1. Power button (Alienhead) Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Press to put the computer in sleep state if it is turned on. -
Page 8: Back
Provides data transfer speeds up to 5 Gbps. Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that enables faster charging. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. 5. -
Page 9: Back Panel
Connect a power cable to provide power to your computer. 9. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 10. Side panel release latch Allows you to remove the side panel from your computer. - Page 10 3. USB 2.0 ports (5) Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps. 4. DisplayPort Connect an external display or a projector. NOTE: The DisplayPort on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer.
-
Page 11: Specifications Of Alienware Aurora R9
Specifications of Alienware Aurora R9 Dimensions and weight Table 1. Dimensions and weight Description Values Height: Front 441.80 mm (17.39 in.) Rear 481.60 mm (18.96 in.) Width 222.80 mm (8.77 in.) Depth 431.90 mm (17 in.) Weight (maximum) 17.80 kg (39.24 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability. -
Page 12: Memory
Memory Table 4. Memory specifications Description Values Slots Four UDIMM Type DDR4 Speed 2666 MHz up to 3200 MHz (XMP memory) Maximum memory 64 GB Minimum memory 8 GB Memory per slot 8 GB and 16 GB Configurations supported: • 8 GB DDR4 at 2666 MHz •... -
Page 13: Communications
Description Values NOTE: The DisplayPort on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer. Memory card reader One SD-card slot Power port Not applicable Security One security-slot (Wedge-shaped lock) Internal: PCIe expansion card slots •... -
Page 14: Video
Video Table 8. Discrete graphics specifications Discrete graphics Controller External display support Memory size Memory Type NVIDIA GeForce RTX 2080 One HDMI port and one DisplayPort 8 GB GDDR6 NVIDIA GeForce RTX 2080 One HDMI port and one DisplayPort 11 GB GDDR6 Audio Table 9. -
Page 15: Computer Environment
Type 460 W 850 W Output current (continuous) 5 V/25 A, 12 VA/18 A, 12 VB/16 A, 12 VC/8 A, 5 V/25 A, 12 VA/18 A, 12 3.3 V/17 A, 5 Vaux/3 A VB/16 A, 12 VC/8 A, 3.3 V/17 A, 5 Vaux/3 A Rated output voltage 5V, 12VA, 12VB, 12VC, 3.3V, 5Vaux... -
Page 16: Alienware Command Center
Alienware Command Center Alienware Command Center (AWCC) provides a single interface to customize and enhance the gaming experience. The AWCC dashboard displays most recently played or added games, and provides game-specific information, themes, profiles, and access to computer settings. You can quickly access settings such as game-specific profiles and themes, lighting, macros, and audio that are critical to the gaming experience. -
Page 17: Getting Help And Contacting Alienware
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region. NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.
