LCD-7100 Remote Display Connections

3.14 LCD-7100 Remote Display Connections
The E3 Series
RS-485 serial interface. The LCD-7100 Serial Remote Annunciator provides an 80-character
display and function keys for the following:
The 80-character display shows all pertinent information except for menus. Keypad functions are
enabled only when the keylock is turned to the "Unlocked" position, with the exception of the
Operating LEDs provided are:
3.14.1 Mounting
The LCD-7100 is flush or surface mounted on a standard four-gang electrical box.
3.14.2 Specifications
The following are the LCD-7100 specifications:
Operating Voltage:
Operating Current:
Alarm Current:
Operating Temperature: 32° to 120° F (0° to 49° C)
Relative Humidity:
Supervised
Power-limited
3.14.3 LCD-7100 Remote Display Sub-Assembly
Figure 3.14.3.1 illustrates the LCD-7100 remote display sub-assembly.
E3 Series Installation/Operation Manual — P/N 9000-0574:I 11/04/10
System can accommodate up to five (5), Remote Display sub-assemblies via the
24 VDC FWR (from PM-9/PM-9G power supply)
0.050 amp
0.075 amp
0 to 93%, non-condensing at 90° F (32° C)

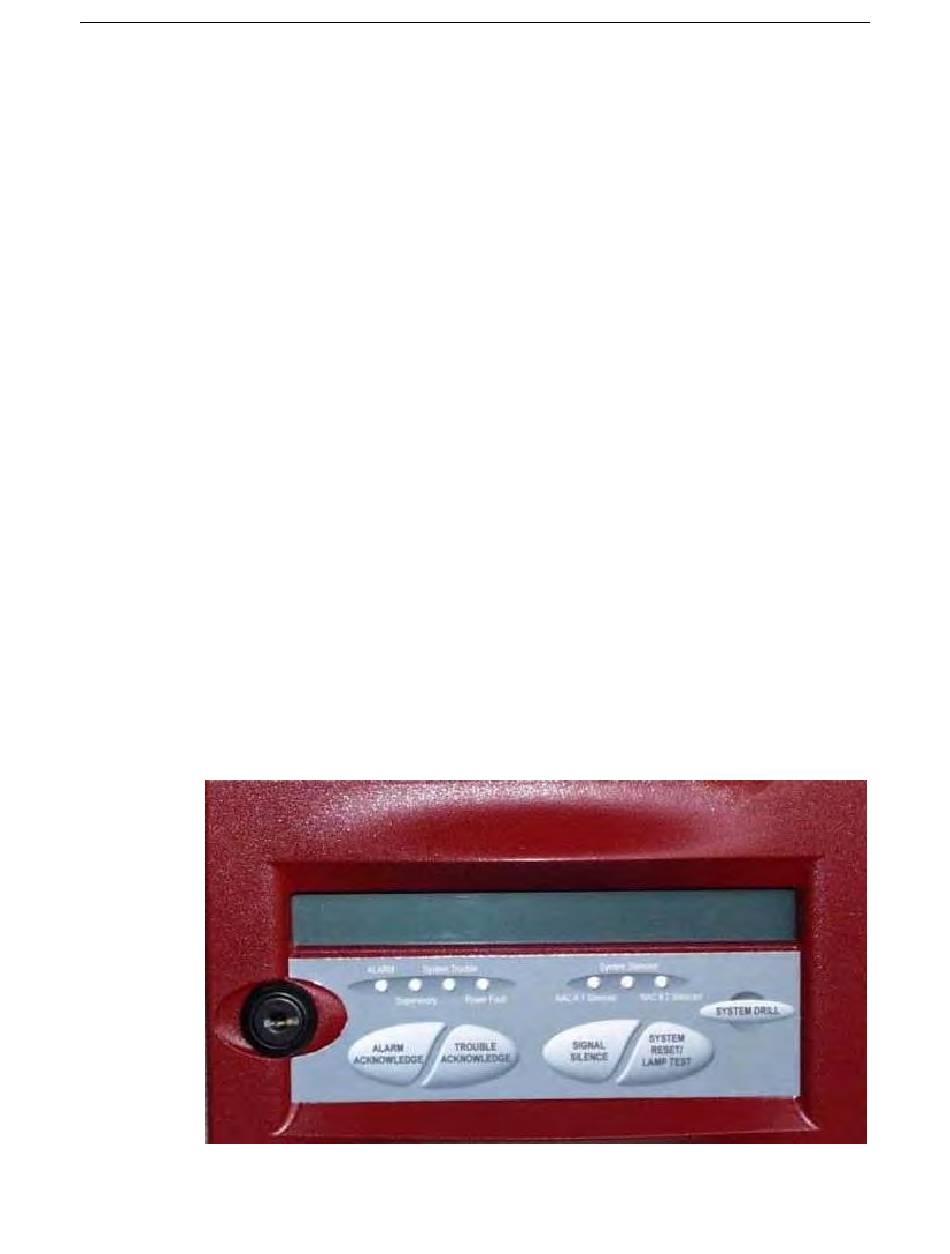

Figure 3.14.3.1 LCD-7100 Remote Display Sub-Assembly
E3 Series System Connections
167
