SH1349 - Operating Manual
V2.1 0719

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH1349 and is the answer not in the manual?

Questions and answers

Related Manuals for TQC Sheen SH1349

Summary of Contents for TQC Sheen SH1349

  • Page 1 ISCOMETER (480) IGITAL REBS SH1349 - Operating Manual V2.1 0719...

  • Page 2: Features Of The Digital Krebs Viscometer

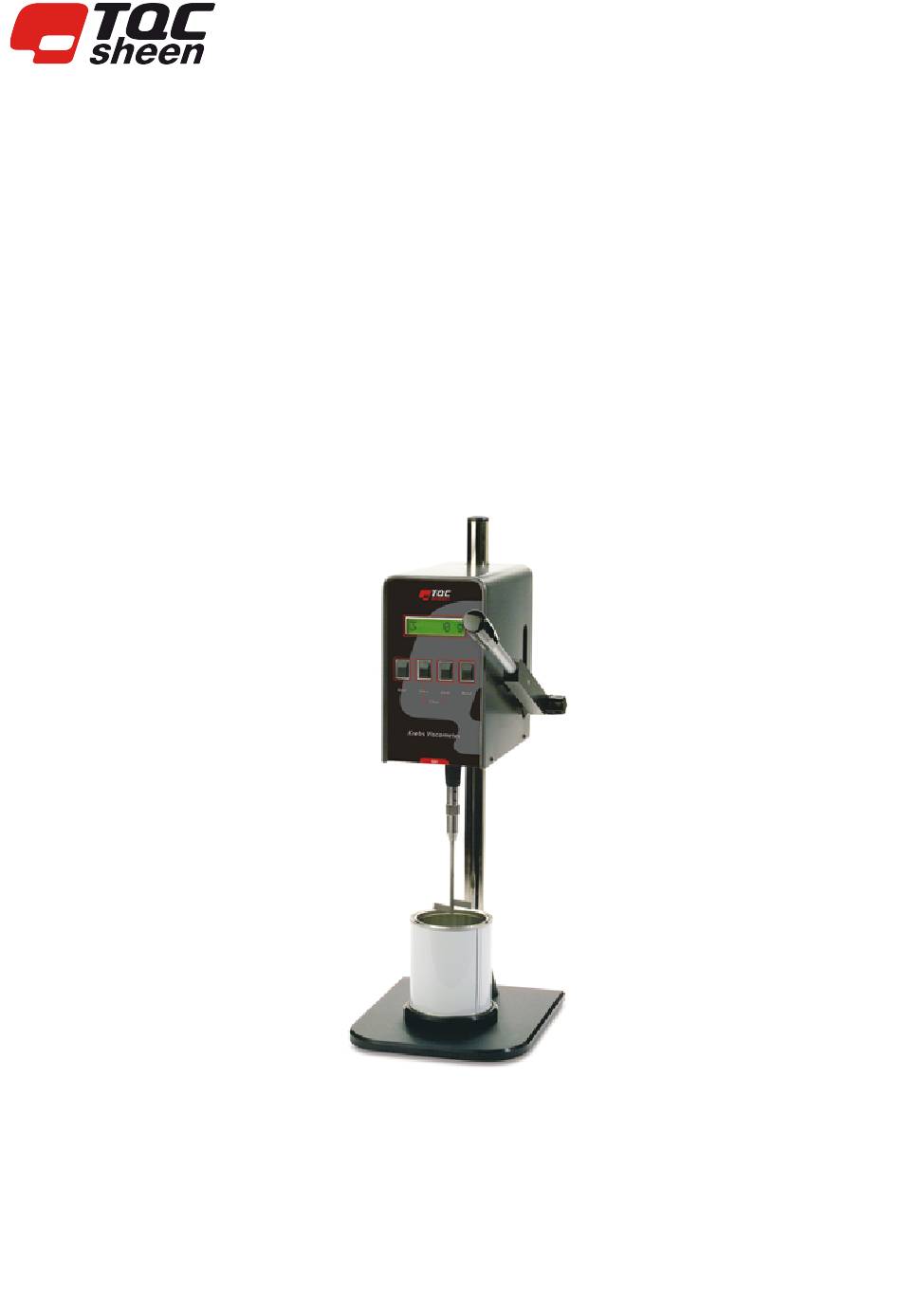

    Based on the popular traditional KREBS method, using a weight-driven rotating paddle to sense the paint viscosity at a constant 200 rpm, this modern digital instrument provides automated motor operation, without weights & pulley, allowing accurate direct reading in KU (Krebs units), mPa.s (cP) or g (gram). The conversion between these units is automatically calculated by the microprocessor and displayed on request.

  • Page 3: Table Of Contents

    Contents Features of the Digital Krebs Viscometer..............1 1 Safety Instructions ......................3 2 Getting started ......................4 Packing list ........................4 3 Operation ........................5 Powering up the Digital Krebs Viscometer ..............5 Operating the Digital Krebs Viscometer ................ 5 To remove the rotor paddle ..................

  • Page 4: Safety Instructions

    Safety Instructions 1. Read this instruction manual carefully before switching on the instrument. 2. Keep this instruction manual for future reference and if you pass this instrument to someone else be sure to include these instructions. 3. This instrument must only be used in areas electrically classified as NON HAZARDOUS.

  • Page 5: Getting Started

    Getting started Packing list  Digital Krebs Viscometer (480)  Paddle  Operating manual Power cord   500ml paint can to BS1262:1989...

  • Page 6: Operation

    Operation Powering up the Digital Krebs Viscometer Before switching on the instrument, fit the paddle as shown:  Push the end of the paddle stem into the chuck  Rotate the paddle stem until it enters the chuck fully  Push the paddle stem firmly to overcome spring resistance and rotate it until a click is felt ...

  • Page 7: Calibrating The Instrument

    Calibrating the instrument The instrument is supplied factory calibrated. It is only necessary to recalibrate the instrument periodically in line with your in house calibration scheme. Warning: Altering values in the calibration will affect the operation of the instrument. Do NOT enter the calibration process unless the instrument is to be recalibrated, failure to do so will result in the instrument displaying zero or incorrect readings.

  • Page 8: Oils

    Oils Calibration oil, art. nr. SH0280: Viscosity=4802cP@23°C Density=0.8739g/ml Calculated KU=139.108 Calculated grams=1002.8 Calibration oil, art. nr. SH0855: Viscosity=2316cP@23°C Density=0.8479g/ml KU=111.0 Calculated grams=496.5 Calibration oil, art. nr. SH0718: Viscosity=464.8cP@23°C Density=0.8745/ml KU=67.6 Calculated grams=120.9 Calibration technique This work should preferable be carried out in a temperature controlled environment. A minimum quantity of 470ml of each of the calibration oils is required.

  • Page 9: How To Make Measurements

     Remove the lid from the 1003 grams calibration oil (SH0280) and locate the tin on the magnetic base of the instrument.  Lower the head of the instrument until the machined groove on the spindle of the paddle is level with the surface of the calibration oil. ...

  • Page 10: Clearing The Memory

    is at the same temperature. As with calibration it is most important not to introduce any air.  When the desired temperature has been reached, remove the temperature probe.  Press the “READ” key and the paddle will start to rotate. At this time a value will appear on the display.

  • Page 11: Instrument Specifications

    Instrument Specifications Range 37 - 141 Krebs units, 200 - 5000 Cp, 70 - 1100 gms Resolution 0.1 Kreb unit, 10 cP, 1 gm Accuracy ±2% of full scale Repeatability ±1% of full scale Operating temperature 15°C – 35°C ( 59°F – 95°F) Motor speed 200 r.p.m.

  • Page 12: Care And Routine Maintenance

    Care and routine maintenance The following should be carried out every six months:  Lightly oil the inside of the quick release chuck, do not use a silicon based oil  Check tension of the operating handle  Lightly grease the main support post ...

  • Page 13: Spares

    Spares Calibration key (required for instrument calibration) SH7120...

  • Page 14: Troubleshooting

    Troubleshooting Display not lighting If the display is not lighting then check the following:  Is the power supply connected and instrument switched on? If the display is not working after this then check the internal fuse. No reading If the display shows zero when taking readings then check the following: ...
