RAD-900-IFS

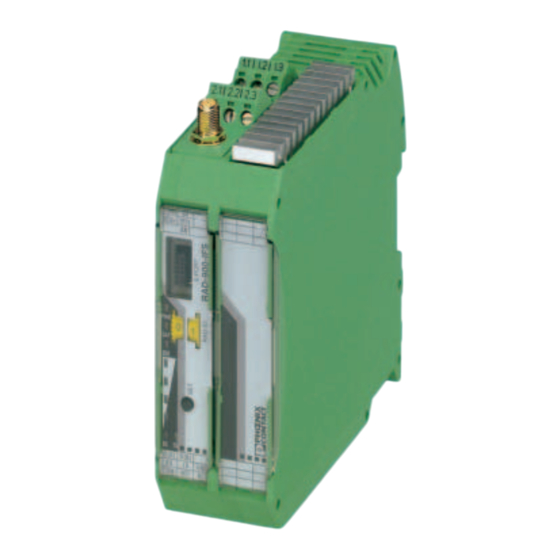

900 MHz wireless transceiver (transmitter and
receiver) with RS-232 and RS-485 interface, can be
extended with I/O extension modules
Data sheet
3225_en_H
1

Description

Wireless communication is based on Trusted Wireless 2.0
technology. The high demand for a interference-free data
transmission using the license-free 900 MHz band, in
particular via the use of the FHSS method (FHSS) and 128-
bit data encryption (AES), is fulfilled.
In addition to an RS-232 and RS-485 2-wire interface, the
RAD-900-IFS wireless module supports the option of
directly connecting up to 32 I/O extension modules in the
station structure via the TBUS DIN rail connector.
Addressing of the wireless module and I/O mapping of the
I/O extension modules is carried out quickly and easily by
means of the thumbwheel on the front. Programming
knowledge is not required.
The PSI-CONF configuration and diagnostics software for
special functionality and diagnostic options in the wireless
module is available free of charge.
This product is only for export outside of the European Economic area.
Make sure you always use the latest documentation.
It can be downloaded from the product at phoenixcontact.net/products.
This data sheet is valid for all products listed on the following page:
© PHOENIX CONTACT
2018-09-14
Features
Flexible network applications: I/O data, serial data,
PLC/Modbus RTU mode
Adjustable data rates for the wireless interface
Easy point-to-point or network structures (star,
repeater)
Quick and easy startup thanks to simple wireless
module addressing using the thumbwheel on the front
Integrated RS-232 and RS-485 interface
Can be extended with up to 32 I/O modules per station
via DIN rail connector (hot-swappable)
128-bit data encryption (AES)
Unique network addressing via plug-in configuration
memory (RAD-CONF) for secure, parallel operation of
multiple networks (different RF bands)
Data rates and ranges can be adjusted
