Summary of Contents for PlayGoPools 2200

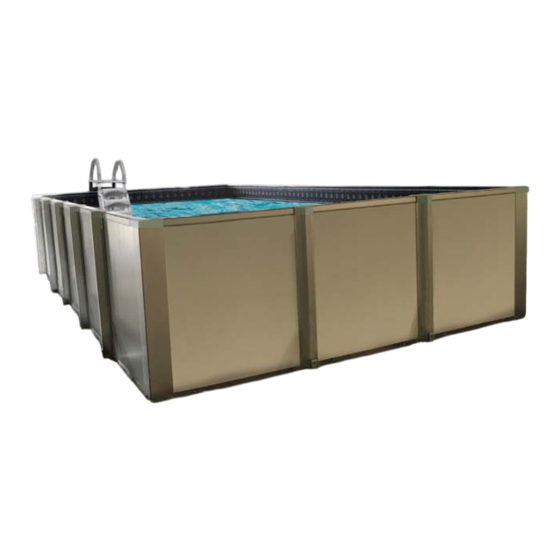

- Page 1 THE RECTANGLE POOL MODEL # 2200 INSTALLATION MANUAL...
- Page 2 WARNING WARNING THIS POOL IS NOT DESIGNED FOR DIVING OR JUMPING. DANGEROUS INJURY CAN RESULT - SHALLOW WATER!!! Follow All Safety and Maintenance Instructions Your pool is designed for years of pleasurable, safe family fun. But, when used Be sure to follow local building code requirements for load capacity and fencing if using an aftermarket or homebuilt deck.
-
Page 3: Tools And Materials Required
INTRODUCTION CONGRATULATIONS ON BECOMING THE OWNER OF A NEW SWIMMING POOL. THESE ARE INSTRUCTIONS FOR INSTALLING YOUR SWIMMING POOL. THE FOLLOWING ARE SOME HELPFUL HINTS YOU SHOULD TAKE INTO CONSIDERATION BEFORE INSTALLING YOUR POOL. 1. Read through the entire instruction booklet before you begin. This will enable you to exactly find out what is involved in installing your swimming pool before you begin. - Page 4 PART LIST - THE RECTANGLE POOL SIZES ABOVE GROUND NAME POOL PARTS Wall 1-UN Panel Bottom 2-UN Chanel 3-UN Ledge Corner 4-UN Post Ledge 5-UN Cover Buttress 6 20 22 6-AG Bottom 55 64 7-AG Strap 20 22 Pressure 8-AG Plate Corner 9-AG...
- Page 5 POOL SIZES ABOVE GROUND NAME POOL PARTS Self- HARDWARE tapping screws 1” Deflection 20 22 Compensator Above Ground and Semi-In Ground Pool Exploded View:...
- Page 6 POOL SIZES INGROUND NAME POOL PARTS Wall 1-UN Panel Bottom 2-UN Chanel 3-UN Ledge Corner 4-UN Post Ledge 5-UN Cover Buttress 6 20 22 6-IG Skimmer 7-IG Panel Return 8-IG Panel Self- tapping HARDWARE screws 1”...
- Page 7 In Ground Pool Exploded View:...
-
Page 8: Ground Preparation
ABOVE GROUND POOL INSTALLATION IMPORTANT: Before starting the Installation Process, PLEASE read the entire Instruction carefully and comprehensively step-by-step to follow all the information mentioned. Otherwise, if you do not follow the Instruction out completely, the Pool Warranty attached to the Instruction will become void. - Page 9 ABOVE GROUND POOL INSTALLATION Patio Blocks Placement • Square off and level four 8” (width) x 8” (length) x 2” (thickness) corner patio blocks 0.5” above the ground level according to your pool size as shown on the illustration below. These patio blocks will be 4.5”...
- Page 10 • Please see the Corner Section illustration below, showing the 0.5” elevation of the Patio Block above the ground level. • Please see the Buttress Assembly illustration below, showing the 0.75” elevation of the dry/outside end of the Horizontal Buttress (above the ground level) raised by Deflection Compensator provided in the box with the hardware.
- Page 11 Step 1 Pre-assembling Corner Sections: • Screw twelve 1” self-tapping screws through two Top Ledges and two Bottom Channels into one Corner Post and two Wall Panels to build a Corner Section as pictured below. Note: Screws for the Top Ledges should be located only on the outer/dry side of the pool. Before screwing for easier screwing, please pre-drill all the necessary openings by using a 1/8”...
- Page 12 • Next, repeat this process three more times to build four total Corner Sections.
- Page 13 Step 2 Assembling Middle Sections: IMPORTANT: When assembling, please make sure that all the Reinforcing Brackets of the But- tresses are located on the dry/outer side of the pool. • Screw six 1” self-tapping screws into the top openings (leaving the lower openings empty) through two Top Ledges and two Bottom Channels into one Buttress Post and two Wall Panels to attach a middle section as illustrated below.
- Page 14 • Further, repeat this process for all the Middle Sections. Note: Leave one Middle Section out to allow an entry point to cart sand into the pool area.
- Page 15 Step 3 Loading Sand: • Wheel barrel the appropriate amount of clean pool sand (based on your size pool) inside the pool area and place it on the floor in one corner. Note: Do not block or impede the pathway of the Bottom Straps, which will run from one Buttress Assembly to the opposite Buttress Assembly.
- Page 16 Step 4 Assembling Last Middle Section: • Close the pool off by attaching the last Wall Panel as done in Step # 2.
- Page 17 Step 5 Installing Bottom Straps: • Recheck pool, making sure that all of the Wall Panels are exactly squared off and the same height level with each other. • Next, by placing one Bottom Strap onto one Horizontal Buttress, inside the pool, (starting at the pre-scribed line located 5”...
- Page 18 • Next, repeat the above-mentioned process for connecting all of the Bottom Straps to each other. • The excess strap material of the center Bottom Straps must be located underneath each continuous run of Bottom Straps. • Next, recheck to make sure that all of the Wall Panels are exactly squared off and the same height level with each other.
- Page 19 Step 6 Mounting Pressure Plates: IMPORTANT: It is critical that all of the Pressure Plates are always placed and screwed down, starting from the very end of the Horizontal Buttresses (on the wet side). • Center each Pressure Plate over one Horizontal Buttress, placing it at the end of each 39” Horizontal Buttress.
- Page 20 Step 7 Final Assembling All Middle Sections: • Recheck all levels and squareness of the pool, making sure that all of the Wall Panels are exactly squared off and the same height level with each other. • Screw the other six 1” self-tapping screws into the lower openings through two Top Ledges and two Bottom Channels into one Buttress Post and two Wall Panels to finally and firmly attach a middle section as pictured below.
- Page 21 Step 8 Stationing Ledge Covers: • By using a 1/4” drill bit, drill one centered opening in four Ledge Covers according to the illustration below on the left, making this hole 1.5” from the top of the Ledge Covers. Next, place and screw these four Ledge Covers into the four Corner Posts, using 1”...
- Page 22 Step 9 Inserting all Buttress Caps and Four Corner Caps: • Interpose all the resin Buttress Caps, depending on your pool size, into the Buttress Posts and four resin Corner Caps into the Corner Posts, covering the Top Ledges, Corner Posts and Buttress Posts and all the seams and 1”...
- Page 23 Step 10 Duct Taping all Seams and Sharp Edges: • Overlap three layers of Duct Tape to completely cover all the seams that will touch the pool liner on the entire inside of the pool’s inner walls. Spreading Pool Sand: •...
- Page 24 IMPORTANT: Before starting the Installation Process, PLEASE read the entire Instruction carefully and comprehensively step-by-step to follow all the information mentioned. Otherwise, if you do not follow the Instruction out completely, the Pool Warranty attached to the Instruction will become void. For Semi-In Ground Installation up to 24”...
- Page 25 IMPORTANT: Before starting the Installation Process, PLEASE read the entire Instruction carefully and comprehensively step-by-step to follow all the information mentioned. Otherwise, if you do not follow the Instruction out completely, the Pool Warranty attached to the Instruction will become void. For In-Ground Installation more than 24”...
- Page 26 • All in ground pools installed over 24” or more in the ground require a collar of concrete 28” wide and 9” high around the pool. • Pour concrete. Do not fill with water until concrete is hardened.
- Page 27 POOL SAFETY AND MAINTENANCE IMPORTANT POOL SAFETY AND MAINTENANCE Keep your pool wall and frame clean. Always wash away any deposits of pool chemicals that land on the frame of your pool. Wash periodically with a mild soap solution (no abrasives). At least once a year use a clear non-yellowing household wax on all metal components.
- Page 28 WINTER RULES IMPORTANT WINTER RULES After your pool has been winterized and all the steps have been carefully followed, the following checks and procedures must be strictly adhered to during fall, winter and spring seasons. Your pool warranty will be invalid if the pool has been improperly winterized and the following procedures have not been strictly followed.
