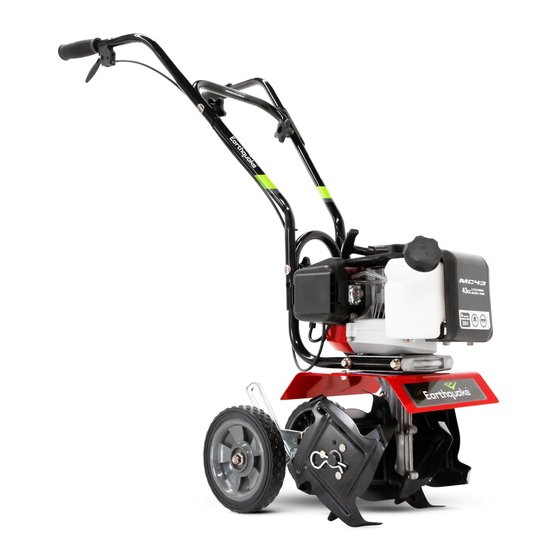

EarthQuake MC43 Operator's Manual

2-cycle tiller cultivator
Hide thumbs Also See for MC43:
Table of Contents

Advertisement

Quick Links

Operator's Manual
Original Operating Instructions
MC43
2-Cycle Tiller
Cultivator
LOT #
Includes Model:
MC43
P/N: 30547
Get parts online at
ECN: 11966
www.GetEarthquake.com
REV2: 01/19/18
or call for parts
© 2018 Ardisam, Inc.
800-345-6007 M-F 8A-5P
All Rights Reserved
READ OM ICON R1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC43 and is the answer not in the manual?

Questions and answers

Related Manuals for EarthQuake MC43

Summary of Contents for EarthQuake MC43

  • Page 1 Operator’s Manual Original Operating Instructions MC43 2-Cycle Tiller Cultivator LOT # Includes Model: MC43 P/N: 30547 Get parts online at ECN: 11966 www.GetEarthquake.com REV2: 01/19/18 or call for parts © 2018 Ardisam, Inc. 800-345-6007 M-F 8A-5P All Rights Reserved READ OM ICON R1...

  • Page 2: Table Of Contents

    MC43 2-Cycle Tiller Cultivator INTRODUCTION Thank you for purchasing a tiller cultivator from Earthquake®. We have worked to ensure that this tiller cultivator meets the highest standards for usability and durability. With proper care, your tiller cultivator will provide many years of service.

  • Page 3: Warnings And Safety Precautions

    Read and follow all safety instructions. OBEYED. • Carefully follow all assembly instructions. • Maintain the machine according to directions and schedule included in this Earthquake operator’s CAUTION manual. • Ensure that anyone who uses the machine is familiar CAUTION INDICATES A HAZARD WHICH, IF with all controls and safety precautions.
  • Page 4 Operator’s Manual MC43 2-Cycle Tiller Cultivator • Operate only in daylight or good artificial light. WARNING • Do not operate product when fatigued or under the influence of alcohol, drugs or other medication which CALIFORNIA PROPOSITION 65 WARNING can cause drowsiness or affect your ability to operate this machine safely.
  • Page 5 Operator’s Manual MC43 2-Cycle Tiller Cultivator DANGER CAUTION ENGINES GIVE OFF CARBON MONOXIDE, AN HOT GASES ARE A NORMAL BY-PRODUCT OF ODORLESS, COLORLESS, POISONOUS GAS. A FUNCTIONING INTERNAL COMBUSTION CARBON MONOXIDE MAY BE PRESENT EVEN ENGINE. FOLLOW ALL SAFETY INSTRUC- IF YOU DO NOT SMELL OR SEE ANY ENGINE TIONS TO PREVENT BURNS AND FIRES.

  • Page 6: Operation Precautions/Maintenance And Storage Precautions

    Operator’s Manual MC43 2-Cycle Tiller Cultivator • Handle fuel with care; it is highly flammable. • Take all possible precautions when leaving the machine unattended. Disengage throttle control, stop the engine, a. Use an approved fuel container. wait for all moving parts to stop, and make certain b.

  • Page 7: Burns And Fires/Safety Decals

    OFF switch to the OFF position and store indoors in a dry place locked or otherwise inaccessible to children. • Use only original equipment parts from Earthquake, including all nuts and bolts. SAFETY DECALS This tiller cultivator has been designed and manufactured Part No.

  • Page 8: Features

    Operator’s Manual MC43 2-Cycle Tiller Cultivator FEATURES 2 POSITION TOOL-LESS HANDLEBAR HEIGHT ADJUSTMENT THROTTLE CONTROL LEVER 3 POSITION THROUGH TOOL-LESS FUEL TANK WHEEL HEIGHT ADJUSTMENT TOOL-LESS REVERSIBLE & REPLACEABLE TINES SPECIFICATIONS ENGINE 43cc SPARK PLUG L7RTC DISPLACEMENT SPARK PLUG GAP 0.027 inch...

  • Page 9: Harware Chart

    Operator’s Manual MC43 2-Cycle Tiller Cultivator HARDWARE CHART UPPER RIGHT (Use this as a size guide for the hardware in the Unpacking HANDLEBAR CURVED and Assembly section) WASHER 4641 UPPER LEFT Curved Washers HANDLEBAR Qty 4 T-HANDLE NUT SADDLE BOLT...

  • Page 10: Operation

    Operator’s Manual MC43 2-Cycle Tiller Cultivator OPERATION 5. Carefully add fuel without spilling. 6. Do not fill gas tank completely full, allow space for fuel to Operation Tips expand. 1. The clutch will transfer maximum power after about two 7. Immediately replace fuel cap and tighten. Wipe off spilled hours of normal operation.
  • Page 11 Operator’s Manual MC43 2-Cycle Tiller Cultivator order so that they are positioned left to right A, B, C, D, full arm stroke. Let it return to its original position very as viewed from the user’s position on the tiller cultivator.
  • Page 12 Operator’s Manual MC43 2-Cycle Tiller Cultivator To Adjust the Drag Stake do as follows: SEE FIGURE 7 WARNING The drag stake is used to help regulate tilling depth and control the tiller cultivator from leaping forward during operation. DO NOT ATTEMPT TO START ENGINE IN THE...

  • Page 13: Maintenance And Storage

    Operator’s Manual MC43 2-Cycle Tiller Cultivator environment. Transferring the unit from a cold to a warm WARNING place can cause the build up of harmful condensation. Engine Maintenance PRACTICE SAFETY AT ALL TIMES. ENGINE MUST BE TURNED OFF AND ALLOWED TO...
  • Page 14 Operator’s Manual MC43 2-Cycle Tiller Cultivator Spark Plug NOTICE The recommended spark plug is a Torch L7RTC which cross references to a Champion RCJ6Y. DO NOT TWIST AIR FILTER WHEN CLEANING, ALWAYS PRESS. TWISTING OR TOO MUCH FORCE 1. Check spark plug at the beginning of each season.

  • Page 15: Troubleshooting And Repair

    3. Remove all debris from tiller cultivator tines and engine. TROUBLESHOOTING AND REPAIR At Earthquake, we build quality and durability into the design of our products; but no amount of careful design by us, and careful maintenance by you, can guarantee a repair-free life for your Earthquake Tiller Cultivator.

  • Page 16: Troubleshooting Guide

    Operator’s Manual MC43 2-Cycle Tiller Cultivator TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY/ACTION Engine will not start 1. Ignition switch off 1. Flip switch to ON position 2. Spark plug wire disconnected 2. Connect spark plug wire to spark plug 3. Out of fuel 3.

  • Page 17: Illustrated Parts Breakdown

    Operator’s Manual MC43 2-Cycle Tiller Cultivator ILLUSTRATED PARTS BREAKDOWN: ENGINE ASSEMBLY THIS INSTRUCTION BOOK CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 18 Operator’s Manual MC43 2-Cycle Tiller Cultivator ILLUSTRATED PARTS BREAKDOWN: ENGINE ASSEMBLY ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 3004158 AIR FILTER COVER 300429 RECOIL SPACER PLATE 15230 KIT AIR FILTER ASSEMBLY 300491 RECOIL CLUTCH CUP 1021 ROCKER SWITCH 300493...
  • Page 19 Operator’s Manual MC43 2-Cycle Tiller Cultivator ILLUSTRATED PARTS BREAKDOWN: HOOD AND TINES (SEE DETAIL BREAKDOWN NEXT PAGE) ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 4652 HAIR PIN, 5/8-3/4 IN 18039 PIN LOCK 8 MM X 40 MM 4601 TINE “A” RIGHT OUTSIDE...
  • Page 20 Operator’s Manual MC43 2-Cycle Tiller Cultivator ILLUSTRATED PARTS BREAKDOWN: TRANSMISSION 18, 25 17, 25 10 11 11 10 ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 26013 TRANSMISSION ASSEM- 4614 DRIVE SHAFT BUSHING BRONZE 46144 DUST CAP 21953 DRIVE SHAFT...
  • Page 21 Operator’s Manual MC43 2-Cycle Tiller Cultivator ILLUSTRATED PARTS BREAKDOWN: HANDLEBARS ITEM PART DESCRIPTION QTY. 4814 BOLT 10-24 X 1-1/4 PHILLIPS 23442 HANDLEBAR UPPER RIGHT 14645 THROTTLE CABLE 12633 RUBBER PAD 4809 TRIGGER ASSEMBLY SHORT THROW 4639 HANDLEBAR GRIP 23443 HANDLEBAR UPPER LEFT...

  • Page 22: 15073 Border-Edger Kit Installation (Optional Accessory)

    Operator’s Manual MC43 2-Cycle Tiller Cultivator 15073 BORDER-EDGER KIT INSTALLATION (OPTIONAL ACCESSORY) The Border-Edger Kit is a useful tool for making clean cuts in the lawn along the borders of gardens, flower beds, walkways, and driveways for a well manicured look. To install the Border-...

  • Page 23: Dk43 Dethatcher Kit Installation (Optional Accessory)

    Operator’s Manual MC43 2-Cycle Tiller Cultivator DK43 DETHATCHER KIT ITEM PART DESCRIPTION QTY. INSTALLATION (OPTIONAL ACCESSORY) 46134 HAIR PIN The Dethatcher Kit is very effective for lifting away the excessive 4647 BOLT M6 X 1.0 X18 HEX FLANGE matted layers of thatch that can prevent moisture, oxygen and...
  • Page 24 Earthquake®, Division of Ardisam, Inc. 1160 8th Avenue, PO Box 666 Cumberland, WI 54829 800-345-6007 | Fax 715-822-2223 All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Items used for props not included. Some assembly may be required.
