Summary of Contents for Stonehealth DOFF Integra

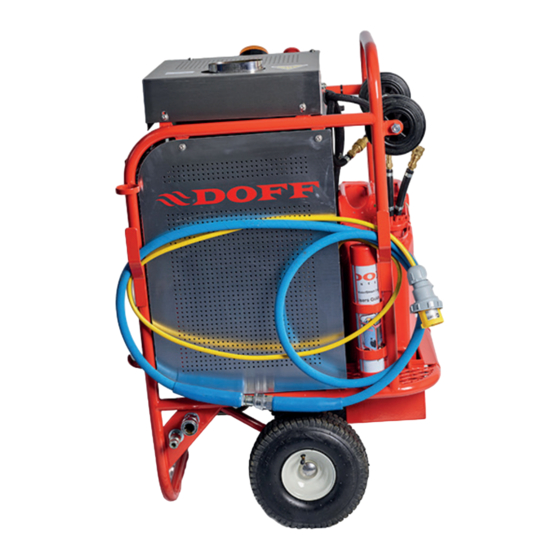

- Page 1 ORIGINAL INSTRUCTIONS User Guide SUPERHEATED WATER / STEAM CLEANING SYSTEM THE STONEHEALTH DOFF USER GUIDE STONEHEALTH.COM...
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS Index PAGE 02 SAFETY INFORMATION SAFETY INFORMATION CHECKLIST PAGE 03 PAGE 04 SPECIFICATIONS PAGE 05 CHECKLIST OF REQUIRED PARTS PAGE 06 SITE REQUIREMENTS QUICK SET UP GUIDE PAGE 07 - 09 PAGE 10 ROUTINE MAINTENANCE PAGE 11 EC DECELERATION OF CONFORMITY PAGE 14 CONTACT DETAILS... -
Page 3: Safety Information
CONSIDERATIONS WHEN USING THE TORC SYSTEM Only Stonehealth inducted and authorised operators may use the equipment. A nominated person adjacent, other than the Operator, should be aware of how to safely shut down the system in unforeseen circumstances. Whilst personnel working in the vicinity need not be inducted into the working of the system they should be made aware of the potential hazards –... -
Page 4: Safety Information Checklist
In the event of accident or breakdown: Release the trigger, operate the emergency stop, switch off the pump and disconnect electrical supply. WHILST STONEHEALTH HAVE MADE EVERY EFFORT TO GIVE APPROPRIATE GENERAL GUIDANCE THE EQUIPMENT MUST COMPLY WITH AND BE USED IN ACCORDANCE WITH ANY REGULATION... -
Page 5: Specifications
ORIGINAL INSTRUCTIONS Specification VOLTAGE 110V or 230V FREQUENCY 50Hz (or local requirement for international market) HEATER OUTPUT 74KW RATED PRESSURE 12Mpa / 120 Bar CURRENT POWER CONSUMPTION HOTBOX 300W PUMP 2200W MASS HOTBOX 80Kg PUMP 35Kg RATED TEMP 150 Degrees C FLOW RATE 5L/min IP RATING... - Page 6 • 1 PUMP • 2 TRANSFORMER (110V only) • 3 EXTENSION CABLE • 4 BLUE INLET HOSE • 5 DOFF INTEGRA HOSE • 6 DOFF EXTENSION HOSE • 7 DOFF TRIGGER • 8 DOFF LANCE x2 • 9 JERRY CAN x2 •...
-
Page 7: Site Requirements
230 volt 50hz/60hz AC supply to BS7671 (+10% to - 6%) 13 Amp (use RCD) or 6.5Kva (cont) Generator 230 volt or 110 volt as above or Stonehealth Diesel Power Unit (DPU) Clean, cold water supply with a positi ve pressure. Approximately 10 Litres per minute fl ow Clean uncontaminated fuel –... -
Page 8: Quick Set Up Guide
ORIGINAL INSTRUCTIONS Quick Setup Guide 1) PLUG IN THE TRANSFORMER** (3) TO APPROPRIATE POWER SUPPLY 2) PLUG EXTENSION CABLE (4) INTO TRANSFORMER** (3) AND INTO DOFF PUMP (2) PLUG HOTBOX (1) INTO PUMP (2) CONNECT BLUE INPUT HOSE MALE (5) INTO DOFF PUMP (2) ** PLEASE NOTE THAT THE TRANSFORMER IS FOR 110V SYSTEMS ONLY, FOR 230V USE RCD THAT IS SUPPLIED. - Page 9 ORIGINAL INSTRUCTIONS Quick Setup Guide 5) CONNECT BLUE INPUT HOSE FEMALE (5) INTO HOTBOX (1) CONNECT INTEGRA HOSE (6) INTO HOTBOX (1) 8) CONNECT EXTENSION HOSE (7) TO TRIGGER (8) 7) CONNECT INTEGRA HOSE (6) TO EXTENSION HOSE (7)
- Page 10 CONNECT MAINS WATER SUPPLY TO PUMP (2) CONNECT JERRY CAN (10) TO HOTBOX (1) You are now ready to start up the DOFF as per your Stonehealth Induction training. The DVD supplied with this system also shows the starting, running and shutdown procedure.
-
Page 11: Routine Maintenance
Always cool down DOFF system when not in use (we recommend cooling for any break in operation of more than 2 minutes) Stonehealth stock a full range of spare parts. Due to the nature of the system, we recommend only using parts supplied by Stonehealth and will need to be fitted by a competent person. -
Page 12: Ec Deceleration Of Conformity
Equipment Specialist Steam Cleaning Equipment. and has been through the appropriate conformity assessment Model DOFF Integra processes. Serial Number D2 – as per dash name plate. is in conformity with the applicable requirements of the following documents: A Declaration of Conformity is not a guarantee for safety. - Page 14 ORIGINAL INSTRUCTIONS NOTES...
- Page 15 National Trust, English Heritage, Historic Scotland, CADW and other worldwide conservation bodies. Stonehealth is proud of its reputation in providing solutions with integrity and setting new standards of restoration and technology excellence in the stone industry.
- Page 16 THE STONEHEALTH DOFF USER GUIDE STONEHEALTH.COM...
