Before using for the first time please check the contents of your awning
Awning flysheet
Dynaflex roof poles
Dynasteel leg poles with adjustable feet
sections
Dynalite aluminium adjustable roof stretcher
poles
Dynalite aluminium monsoon pole
Peg bag
Draught skirt
Carry bag
If you are missing any parts please contact your supplying dealer.
200 260 330 390
1 1 1 1
2 3 3 4
2 3 3 4
2 2 2 2
1 - - -
1 1 1 1
1 1 1 1
1 1 1 1
3

SITING

Choose a site that is flat and, if possible, protected
from the wind. Try to set up your awning with the
doors facing away from the wind.

SET UP

To protect your awning from dirt and damage, it may
be beneficial to lay a groundsheet or awning carpet
down before unpacking.
1
separate and identify the different parts.

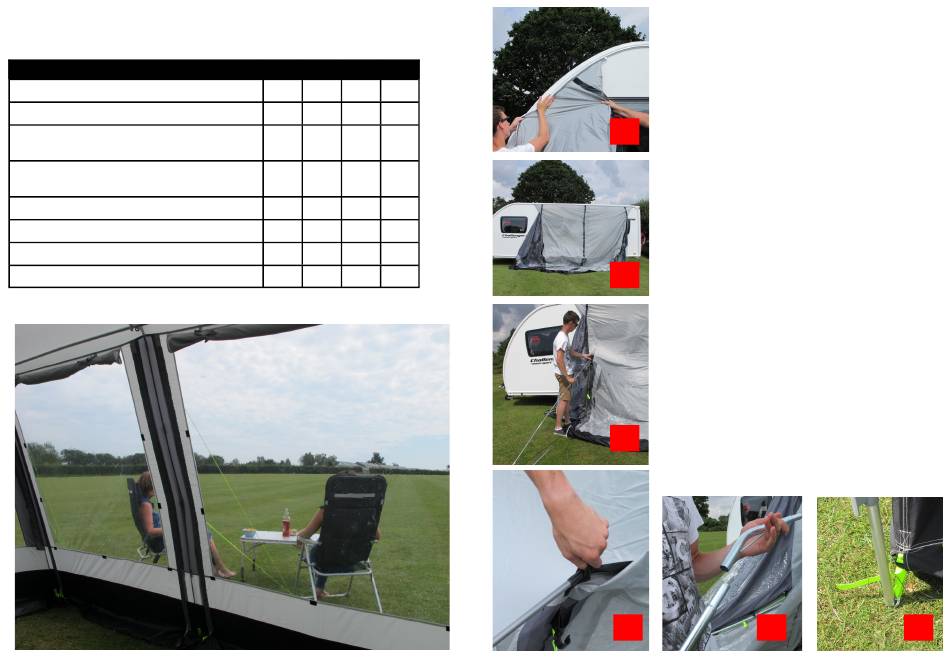

Slide (1) the awning beading, on the rear of the
awning roof, through the caravan awning channel
until it is in your required position (2). The awning
should be positioned on a horizontal part of the
caravan.
Assemble the Dynaflex roof poles (3), these are
linked together and just need slotting together
ensuring that each pole is fully inserted into the
2
adjoining pole. Assemble the steel legs. They are
spring linked and just need slotting together. They
have an adjustable foot – ensure that this is in its
lowest position (making pole shorter) by using the
clamp adjuster.
Starting at one end of the awning, push a roof pole
into the pole sleeve (4), closed end first (with the
plastic end cap), connect the steel leg pole to the end
(5) and then locate the bottom of this pole onto the
pin at the bottom of the awning (6). The pin is on an
adjustable webbing strap. The strap can be released
3
to make it easier to insert the pin into the bottom of
the pole. Always retighten the straps to ensure that
the awning is tensioned correctly.
4 5
Unpack the awning,
6
