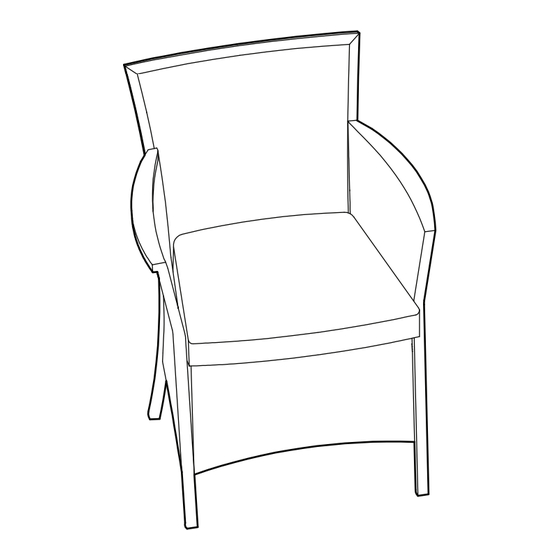

Bali KD Armchair and Cushion
Assembly Instructions -
654/6410
Please keep for future reference
Dimensions
Width - 62cm
Depth - 60cm
Height - 88cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
For further assistance please visit http://www.argos-support.co.uk/
Issue 1 - 26/05/10
Advertisement
Related Manuals for Argos Bali KD Armchair and Cushion
Summary of Contents for Argos Bali KD Armchair and Cushion
- Page 1 Bali KD Armchair and Cushion Assembly Instructions - 654/6410 Please keep for future reference Dimensions Width - 62cm Depth - 60cm Height - 88cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 For further assistance please visit http://www.argos-support.co.uk/...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on the • We do not product during assembly, this could components and tools listed on recommend the cause damage.
-
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below Back board x 1 Armrest x 2 Seat board x 1 Front board x 1 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. Metal washer x 8 Plastic cap x 8 30mm Screw x 8... - Page 4 Assembly Instructions Step 1 Assembly frame Suggest to complete this product assembly by two person. Use 30mm screw and metal washer with plastic washer to fix the armrest to the back board. Repeat above step for each of the 4 positions.
- Page 5 Assembly Instructions Step 3 Turn the armchair to the upright position and tighten all the screws. with the Allen key Seal the screws with plastic cap Step 4 Fit the seat board onto the armchair assembly with the seat side uppermost...
- Page 6 Assembly is complete. arts, call the Customer Helpline: 03456 400800 If you need help or have damaged or missing p For further assistance please visit http://www.argos-support.co.uk/ Argos Limited 489-499 Avebury Boulevard Saxon Gate West Central Milton Keynes Bucks,MK9 2NW...
