OVERALL DIMENSIONS (MARTINA-VANESSA-ALESSIA MODELS)

MARTINA - VANESSA - ALESSIA - SOLARIS

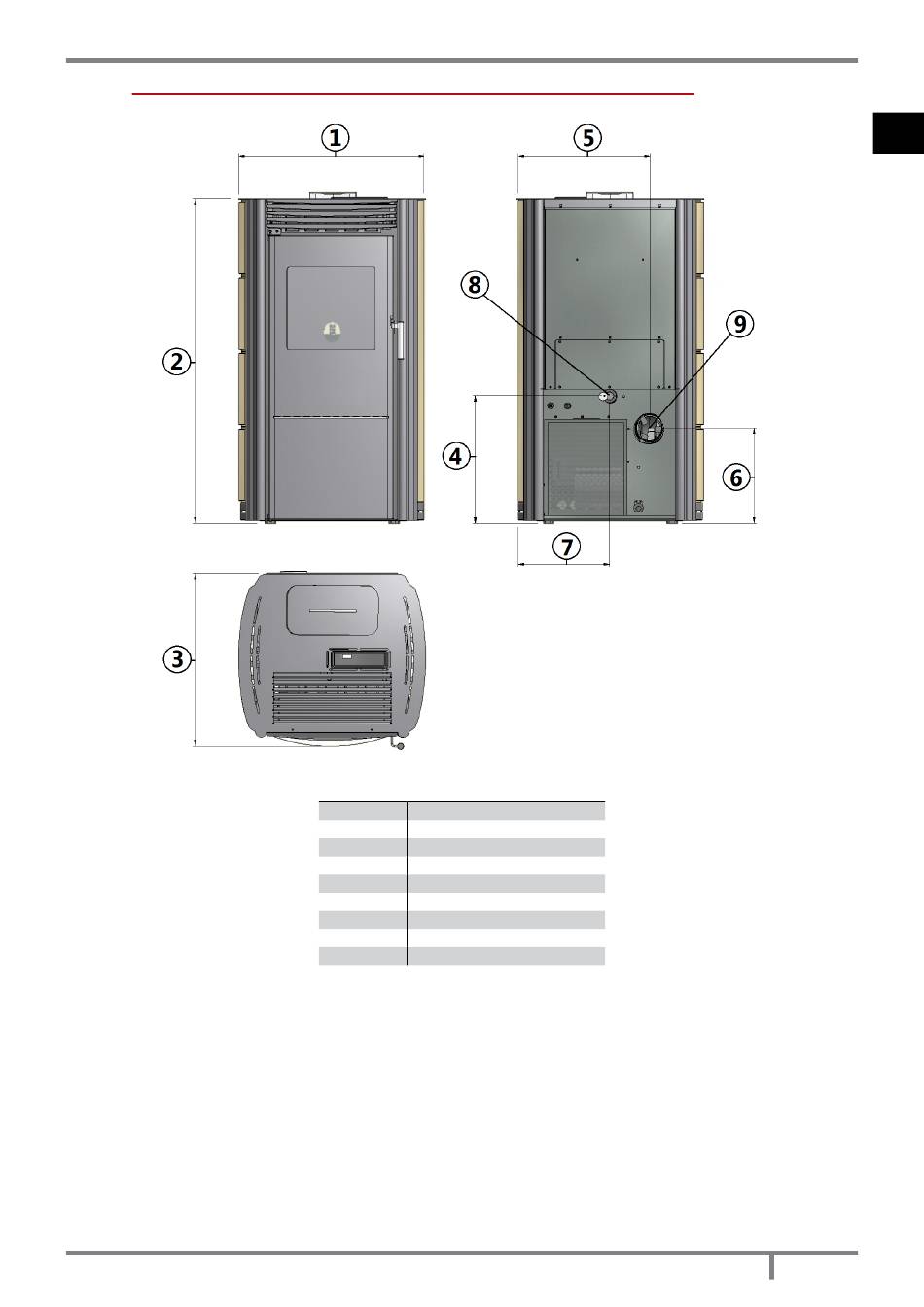

Fig. 12 - General dimensions

LEGEND

Fig. 12 page 13

1

57 cm

2

98 cm

3

52 cm

4

38,5 cm

5

36,7 cm

6

29 cm

7

28 cm

8

Hole combustion air inlet d.4 cm

9

Exhaust fumes d.8 cm
