Summary of Contents for Rockler Convertible Benchtop

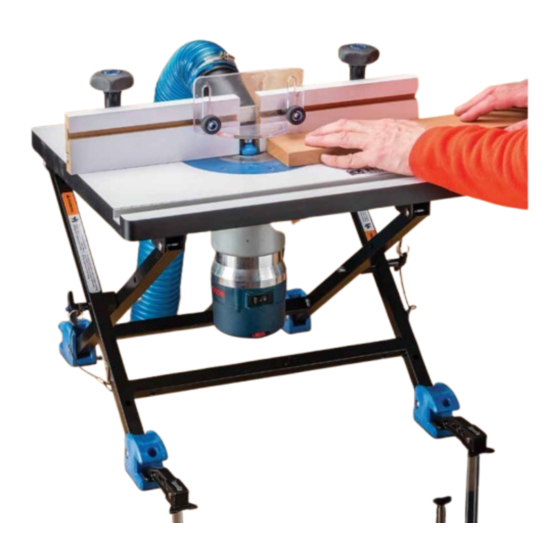

- Page 1 Convertible Benchtop Router Table Instructions Effective June 2018 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
-
Page 2: General Safety Warnings
This product is designed for specific applications as defined in the instructions and should not be modified and/or used for any other applications. Before using the Convertible Benchtop Router Table, read, understand and follow all instructions and safety information provided. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. - Page 3 > To avoid property damage and serious injury when mounting > Weight rating: 40lbs. the Convertible Benchtop Router Table to the wall, the table MUST be mounted securely to wooden wall studs or to > Do NOT sand on or use as a stool.
-
Page 4: Parts List
PARTS LIST Quantity Quantity Table Assembly 11 Binding Post Bolt Locking Pin (with Tab Plate and Wire) 12 5/16"-18 x 2" Carriage Bolt Foot 13 5/16"-18 x 1" T-bolt Aluminum Fence 14 #14 x 2" Pan-Head Screw (Not Shown) MDF Subfence 15 5/16"-18 x 1"... - Page 5 See the breakdown below to determine which fits your router. (You will not be able to use the Convertible Benchtop Router Table without one of the dedicated baseplates.) Convertible Benchtop Router Table Baseplate, Midsize (55512, sold separately): Fits most mid-size routers including Bosch 1617;...
-
Page 6: Mounting To A Wall
Hex > To avoid property damage and serious injury, the Rockler Wrench (18). You will use them to level the router Convertible Benchtop Router Table MUST be mounted baseplate (sold separately). - Page 7 17" the screws later through access holes in the legs. Do NOT remove Locking Pins from the legs unless the Convertible Benchtop Router Table is on its side. 6. Position the Convertible Router Table on its side and press the button to remove one of the Locking Pins (2) holding the legs in the “X”...
- Page 8 Fig. 6 Fig. 7...
- Page 9 Fig. 8 > To avoid pinching or crushing your fingers, keep your hands away from the areas where the legs cross. 8. Holding the table on its side, swing the outer legs back so that they’re perpendicular to the back edge of the table (forming an “L”).
- Page 10 Fig. 10. Installing, Leveling and Securing the Baseplate You will need to buy either the Convertible Benchtop Router Table Midsize Baseplate (55512, sold separately) or Compact Baseplate (53910, sold separately) to mount your router. Follow the step-by-step instructions included with each to mount your router to the baseplate and the baseplate to the table.
- Page 11 3. Holding the tabletop securely, pull the Feet (3) off the crossbar and slowly allow the table to tilt downward until it comes to a stop. Fig. 14. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com...
- Page 12 51984 Distributed by Rockler Companies, Inc. Rev 06/18 Medina, MN 55340...
