Interface

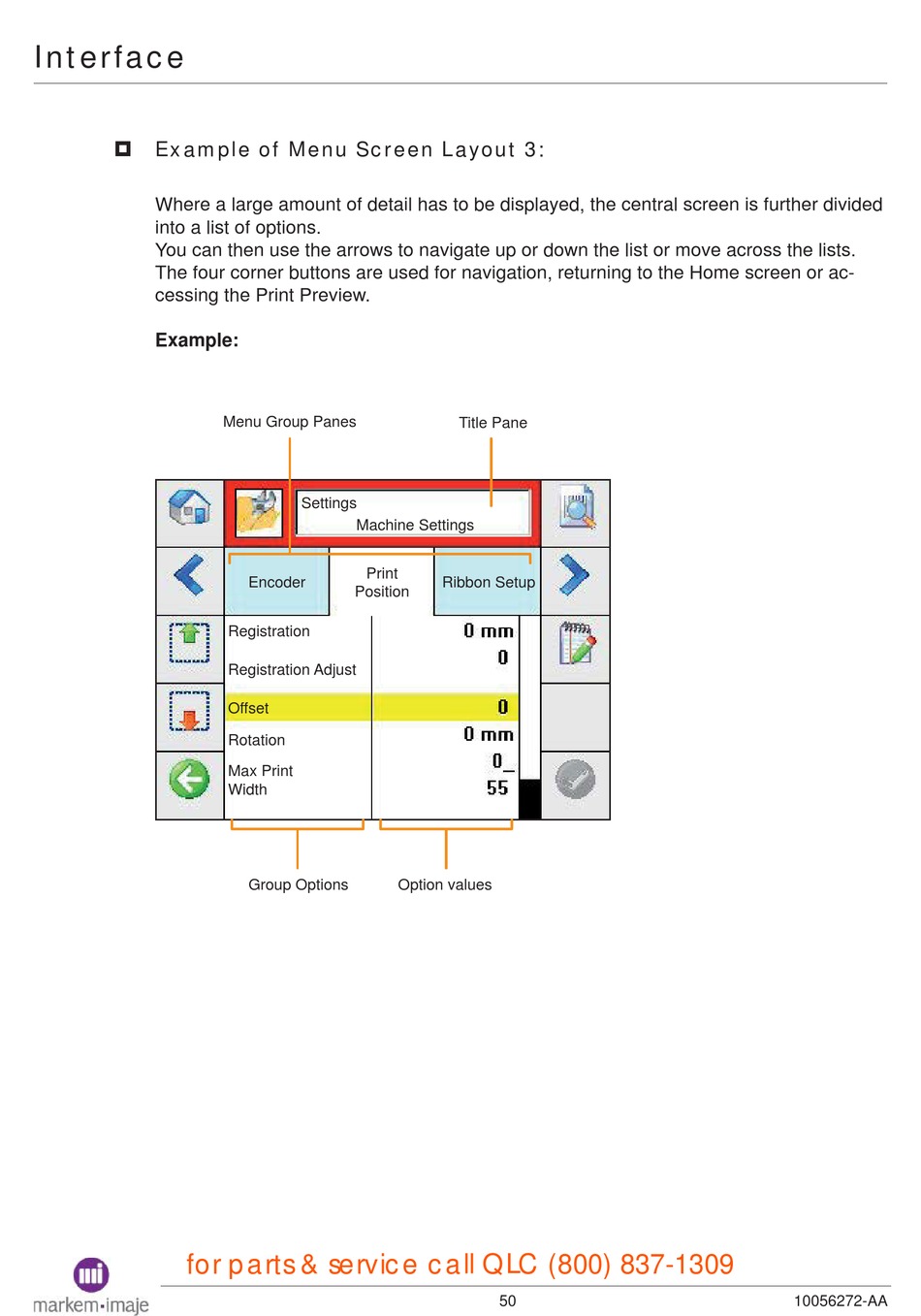

Example of Menu Screen Layout 3:


Where a large amount of detail has to be displayed, the central screen is further divided
into a list of options.
You can then use the arrows to navigate up or down the list or move across the lists.
The four corner buttons are used for navigation, returning to the Home screen or ac-
cessing the Print Preview.
Example:
for parts & service call QLC (800) 837-1309
Menu Group Panes
Settings
Machine Settings
Print
Encoder
Position
Registration
Registration Adjust
Offset
Rotation
Max Print
Width
Group Options
Title Pane
Ribbon Setup
Option values
