CONTENTS:
1.
Description ........................................................................................................................................ 01
2.
Mounting the module n the plane ................................................................................................... 01
3.
Connection of sensors ..................................................................................................................... 01
4.
Starting up ......................................................................................................................................... 02
5.
Operation ........................................................................................................................................... 03
5.1. Display LIPO CELL VOLTAGE ........................................................................................................... 03
5.2. Sensor 1/2 voltage.............................................................................................................................. 04
5.3. Sensor 1/2 temperature ...................................................................................................................... 05
5.4. REV counter ....................................................................................................................................... 05
6.
Programming warning thresholds .................................................................................................. 06
6.1. Minimum cell voltage (Page 2)) .......................................................................................................... 08
6.2. Minimum cell voltage sensor 1 (Page 3) ............................................................................................ 08
6.3. Maximum cell voltage sensor 1 (Page 4) ........................................................................................... 08
6.4. Minimum temperature sensor 1 (Page 5) ........................................................................................... 08
6.5. Maximum temperature sensor 1 (Page 6) .......................................................................................... 09
6.6. Minimum cell voltage sensor 2 (Page 7) ............................................................................................ 09
6.7. Maximum cell voltage sensor 2 (Page 8) ........................................................................................... 09
6.8. Minimum temperature sensor 2 (Page 9) ........................................................................................... 09
6.9. Maximum temperature sensor 2 (Page 10) ........................................................................................ 10
6.10. Maximum current (Page 11) ............................................................................................................... 10
6.11. Maximum capacity (Page 12) ............................................................................................................. 10
6.12. Minimum voltage socket 1 (Page 13) ................................................................................................. 10
6.13. Maximum voltage socket 1 (Page 14) .................................................................................................11
6.14. Minimum RPM (Page 15) ....................................................................................................................11
6.15. Maximum RPM (Page 16) ...................................................................................................................11
7.
Setup-Displays.................................................................................................................................. 12
7.1. Calibration of temperature sensors .................................................................................................... 12
7.2. Blade number ..................................................................................................................................... 12
7.3. Current control .................................................................................................................................... 13
8.
Summary signal tones ..................................................................................................................... 15
9.
Telemetry display ............................................................................................................................. 16
10.
Firmware-Update .............................................................................................................................. 17
11.
Specifications ................................................................................................................................... 19
12.
Warranty ............................................................................................................................................ 21
GRAUPNER GmbH & Co. KG - Postfach 1242 - 73230 Kirchheim/Teck - www.graupner.de
Manual

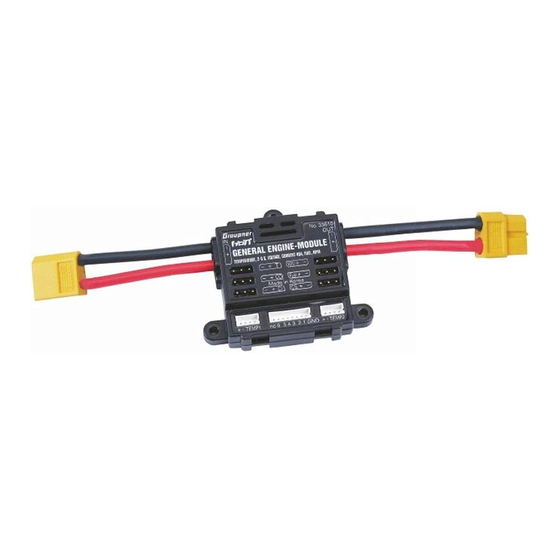

33610 General Engine-Module 2-6 S
Graupner HoTT 2.4
Advertisement
Table of Contents
Related Manuals for GRAUPNER HoTT General Engine-Module 2-6 S
Summary of Contents for GRAUPNER HoTT General Engine-Module 2-6 S
-
Page 1: Table Of Contents
7.2. Blade number ............................. 12 7.3. Current control ............................ 13 Summary signal tones ........................15 Telemetry display ..........................16 Firmware-Update ..........................17 Specifications ........................... 19 Warranty ............................21 GRAUPNER GmbH & Co. KG – Postfach 1242 – 73230 Kirchheim/Teck – www.graupner.de... -
Page 2: Description
THANK YOU for purchasing the General Engine-Module for the Graupner HoTT 2.4 system. If you do not have the Graupner HoTT 2.4 radio system this product will not work. This product is not com- patible with any other 2.4GHz radio system. -
Page 3: Starting Up
SMART-BOX. The connector system is polarised, look for the small camfer on the edges. Never use force - the plug should engage easily and fully. The sockets are labeled accordingly: black wire (-), red wire (+) and orange wire (S). 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 4: Operation
HoTT as an example in parentheses. Please note that the button layout for example of the HoTT mc-transmitters (order No. 4758, 4759) may differ. Read the manual of your remote control 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 5: Sensor 1/2 Voltage
Sensor 2 Current voltage of sensor 2 connected to socket 7 Min./Max. Minimum/Maximum voltage of sensor 2 connected to socket 7 since the start Current Current of the battery connected to socket 1 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 6: Sensor 1/2 Temperature
See point 7.2. for setup. Parameter Description Setup RPM (2 blade) Current motor speed in revolutions per minute and the preset blade number Max. Maximum RPM since the start Min. Minimum RPM since the start 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 7: Programming Warning Thresholds
fi rst row of the associated display, which then appears alternately with the display VARIO SENSOR and the selected Signal Tone A - Z sounds. You can stop the warning at any time by pressing one of the buttons on the top of the SMART- BOX. 33610 General Engine-Module - Graupner HoTT 2.4... - Page 8 For this reason always carry out programming on the ground, and check that only the receiver with con- nected sensors is powered on. 33610 General Engine-Module - Graupner HoTT 2.4...
-
Page 9: Minimum Cell Voltage
5 threshold set between -20 and 200° C (1° C steps). Temperature : 0°C Factory setting: 0° C, Signal Tone: F Warning Time : Repeat Time : Always Signal Tone Sensor 1 00°C 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 10: Maximum Temperature Sensor
-20 and 200° C (1° C steps). page 9 >Set Warning : Temperature : 0°C Factory setting: 0° C, Signal Tone: G Warning Time : Repeat Time : Always Signal Tone Sensor 2 00°C 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 11: Maximum Temperature Sensor
0 and 80.0 V (0.1 V steps). >Set Warning : page 13 Min Voltage 5.0V Factory setting: 5.0 V, Signal Tone: P Warning Time : Repeat Time : Always Signal Tone 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 12: Maximum Voltage Socket
The warning threshold is adjustable from 0 to 200.000 rpm (1 blade) Maximum rpm : Warning Time : with 10 rpm steps. Always Repeat Time : Factory setting: 7000 rpm, Signal Tone: Y Signal Tone RPM ( 2 ) 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 13: Setup-Displays
33516) the propeller / rotor has to get the correct rpm. In addition, you can set the minimum engine speed at which the alarm should be triggered. Blade Number: adjustable from 1 to 6 blades 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 14: Current Control
Current control can be activated and disabled from the transmitter: for this function you need one vacant swit- ched channel. Connect the associated receiver output to the socket CS on the General Engine-Module using a three-core lead. 33610 General Engine-Module - Graupner HoTT 2.4... - Page 15 STOP. Once the motor current is below 40 A again, the module raises the throttle setting again to the value set by the throttle stick (1900us). 33610 General Engine-Module - Graupner HoTT 2.4...
-
Page 16: Summary Signal Tones
8. SUMMARY SIGNAL TONES 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 17: Telemetry Display
2:0.00 0.0V 0.0V 3:0.00 POWER-V 4:0.00 T1 +20°C T1 +20°C 12.5V 5:0.00 25.3A BATT2 6:0.00 BATT2 0.0V T2 +20°C 80.0 0.0V T2 +20°C 12500 The right third of the display is shown alternately. 33610 General Engine-Module - Graupner HoTT 2.4... -
Page 18: Firmware-Update
XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, the adapter lead, Order No. 7168.6A and a Y-cable Order No. 3936.11 which are available separately. The programs and fi les required for this are available from www.graupner.de in the Download area for the corresponding products. - Page 19 The Status display and the Progress bar show the progress of the fi rmware update. The update is completed when the message “Complete…100%” or “Complete!!” appears. Switch off the power supply and disconnect all leads from the Y-cable. Connect the General Engine-Module with the receiver again. 33610 General Engine-Module - Graupner HoTT 2.4...
-
Page 20: Specifications
200.000 rpm resolution 10 rpm Fuel display 0 %, 25 %, 50 %, 75 %, 100 % The current version of this manual is available on the Graupner website www.graupner.de under Order No. 33610 33610 General Engine-Module - Graupner HoTT 2.4... - Page 21 If you don’t know the location of your nearest disposal centre, please enquire at your local council offi ce. 33610 General Engine-Module - Graupner HoTT 2.4...
-
Page 22: Warranty
Servicestellen / Service / Service après-vente Die Fa. Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230 Kirchheim/Teck gewährt ab dem Kaufdatum auf Graupner-Zentralservice Servicehotline dieses Produkt eine Garantie von 24 Monaten. Die Garan- Graupner GmbH & Co. KG (+49) 01805 47 28 76 tie gilt nur für die bereits beim Kauf des Produktes vorhan-... - Page 23 _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ 33610 General Engine-Module - Graupner HoTT 2.4...
- Page 24 Graupner GmbH & Co. KG Henriettenstraße 94 – 96 D-73230 Kirchheim/Teck Germany www.graupner.de Änderungen sowie Liefermöglichkeiten vorbehalten. Lieferung durch den Fachhandel. Bezugsquellen werden nachgewiesen. Für Druckfehler kann keine Haftung übernommen werden. Specifi cations and availability subject to change. Supplied through specialist model shops only.
