Summary of Contents for Philips CID3681/93

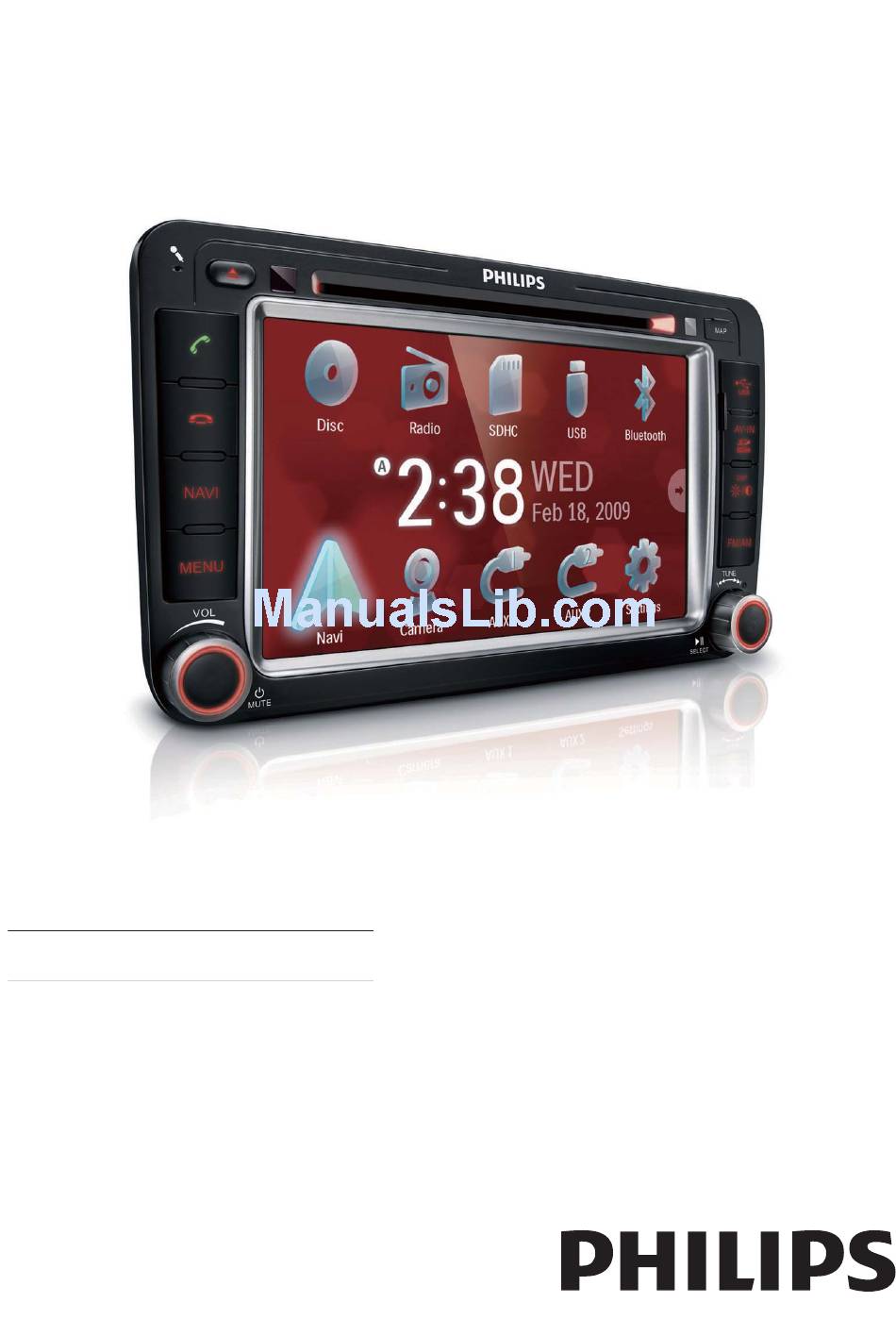

  • Page 1 Register your product and get support at www.philips.com/welcome EN User manual...

  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice Introduction What’s in the box Overview of the main unit 2 Get started Install the car audio Turn on Adjust screen Set date and time 3 Use map Upgrade the map 4 Listen to radio Tune to a radio station Store radio stations in memory Tune to a preset station...

  • Page 3: Important

    DivX, Inc. and are used under license. registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

  • Page 4: Introduction

    Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2008 © Koninklijke Philips Electronics N.V. All rights reserved.

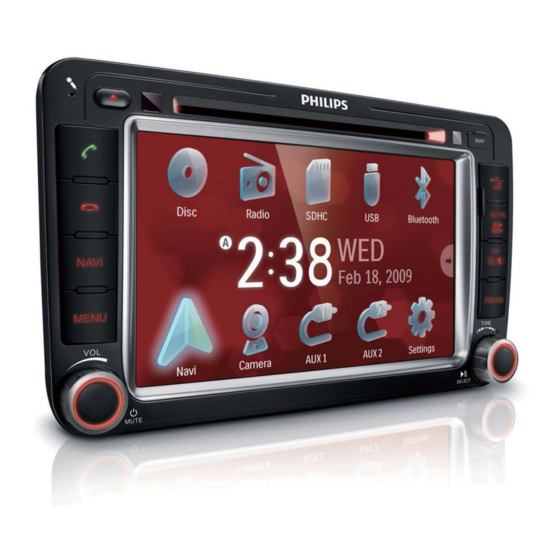

  • Page 5: Overview Of The Main Unit

    Overview of the main unit Built-in microphone for phone calls. Eject disc. c Disc slot d MAP Open the cover and insert/remove the GPS map card. e USB socket f SD/SDHC/MMC card slot g AV IN External equipment audio/video in socket.
  • Page 6 n MENU Return to the home menu. /MUTE/VOL Turn the unit on or off. Mute or unmute audio. Adjust volume.

  • Page 7: Get Started

    These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer. Caution This unit is designed for negative ground (earth) 12 V DC operation only.
  • Page 8 Connector Connect to Brown/black Connect to CAN box/L wire Brown wire Telephone mute Red wire The +12V power terminal which is live in the accessory (ACC) position of the ignition switch If there is no accessory position, connect to the +12V car battery terminal that is always live.
  • Page 9 If necessary, do the other connections: Yellow Green Connect GPS antenna To receive signal from satellites, connect the supplied GPS antenna to your car and the system. Connect the supplier GPS antenna to the Yellow White Amplifier...

  • Page 10: Mount Into The Dashboard

    Stick the other end of the GPS antenna to a surface for signal reception. Connect GPS antenna If your car has built-in radio antenna, connect it to the radio antenna of the system for better radio signal. Connect the radio antenna to the car antenna.

  • Page 11: Turn On

    Turn on Caution Risk of road accidents! Never watch video or adjust settings while you drive. Press and hold /MUTE/VOL to turn on the unit. » The available OSD (On-Screen Display) languages are displayed. Touch a language to select. » The OSD language is changed to the selected language immediately.
  • Page 12 Touch to set year, month and day. Set clock mode Touch [Clock mode]. Touch on [12Hr] or [24Hr] to select clock mode. Set time Touch [Time]. Touch on the displayed time. » A submenu is displayed. Touch to set hour and minute. When date/time is set, touch touch to return to main menu.

  • Page 13: Use Map

    3 Use map Note You may need to upgrade the map before using it (see “Upgrade the map” section) Touch the upper left corner to display home menu. Touch [Navigation]. » The navigation menu is displayed in a few seconds. Refer to the map manual (in Chinese) to operate the navigation tool.

  • Page 14: Listen To Radio

    4 Listen to radio Tune to a radio station Touch the upper left corner to display home menu. Touch [Radio]. » Band and frequency information is displayed. Touch on FM or AM to select band: FM band options: FM1, FM2, FM3 AM band options: AM1, AM2 to tune to a radio station by step.

  • Page 15: Store Radio Stations In Memory

    Store radio stations in memory You can store up to 6 stations in each band. Store stations manually Tune to the station. Touch Touch [Save]. Touch one of the channels 01 to 06 to save the select band. Store stations automatically You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

  • Page 16: Play

    5 Play Load discs You can play video, audio or images stored on the following discs: DVD video, DVD-R, DVD-RW Audio CD, CD-R, CD-RW Note Ensure that the disc contains playable content. Insert the disc into the disc slot with label side facing up.

  • Page 17: Play/Pause

    Insert the SD/MMC card into the SD/MMC card slot. » Play starts automatically. Remove the SD/MMC card Select another source. Press the card until you hear a click sound. » The card is now disengaged. Remove the SD or MMC card. Play/Pause Once a disc, USB or SD/MMC card is inserted, play starts automatically.

  • Page 18: Search Within A Title/Folder

    Touch to return to playlist menu. Touch to display all available picture folders. Touch a folder, then touch select a picture. Touch to view the picture. Search within a title/folder Search by step Touch anywhere except for the upper left corner to display menu on the screen, if necessary.

  • Page 19: Repeat A Section

    Touch anywhere except for the upper left corner to display menu on the screen, if necessary. Touch to select: [Repeat]: play the current track repeatedly. [Repeat folder]: play all the tracks in the current folder repeatedly. [Repeat off]: cancel repeat play. Repeat a section (repeat A-B).

  • Page 20: Rotate Pictures

    Rotate pictures When you view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary. Touch repeatedly to rotate the picture. Zoom You can zoom in pictures for a close view. During view pictures, touch anywhere except for the upper left corner to display menu on the screen, if necessary.

  • Page 21: Play With Bluetooth Device

    6 Play with Bluetooth device You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth- enabled device. Pair the Bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit.

  • Page 22: Receive Call

    Touch to search for phone number from the following list: [Missed calls] [Received calls] [Dialed calls] [Phone book] [Sim phone book] [Local phone book] Or touch to dial number directly, then touch to dial. Receive call By default, all incoming calls are received automatically.

  • Page 23: Adjust Bluetooth Settings

    Adjust Bluetooth settings You can change below Bluetooth settings: [Bluetooth]: to turn on or off “Bluetooth” function [Auto connect]: to turn on or off “Auto connect” function [Auto answer]: to turn on or off “Auto answer” function [Pairing code]: to set paring code [Phone Book Sync]: to synchronize phone book In Bluetooth menu, touch...

  • Page 24: Adjust Sound

    7 Adjust sound Adjust volume Turn /MUTE/VOL button clockwise to increase volume. Turn /MUTE/VOL button anti- clockwise to reduce volume. Mute During play, press /MUTE/VOL. To turn the sound back on, press /MUTE/VOL again. You can also turn off sound by touching the screen.

  • Page 25: Set Dynamic Bass Boost (Dbb)

    Touch to select subwoofer volume. [Sub] subwoofer volume: 0 to 24. Touch F, R, L, or R to adjust fader/balance value. [Fade]fader range: +24 to -24. (F = front speaker, R = rear speaker) [Balance] balance range: -24 to +24. (L = left speaker, R = right speaker) Touch to exit.

  • Page 26: Adjust Settings

    8 Adjust settings Display system setup menu Touch the upper left corner to display main menu. Touch in the middle right side of the screen. » The second main menu is displayed. Touch [Settings]. » The settings menu is displayed. When the setup adjustment is completed, touch main menu.

  • Page 27: Adjust Sound Settings

    [Beep] [On] [Off] [Calibration] Press to exit. Adjust sound settings Touch [Sound]. Touch an option repeatedly to select: Sound Options Description settings [Sub [On] Turn on the subwoofer. woofer] [Off] Turn off the subwoofer. [Sub [80Hz] woofer criteria. [120Hz] [160Hz] [DBB] [On] The Dynamic Bass Boost...

  • Page 28: Adjust Bluetooth Settings

    [Rear [Normal] When you drive in camera] reverse, the rear view is displayed normally. [Mirror] When you drive in reverse, the rear view is displayed in mirror. [Parking] [On] Disable video view during drive. [Off] Enable video view during drive. [DivX View code for DivX registration...

  • Page 29: Adjust Volume Settings

    Touch an option repeatedly to select: Language Options Description settings [OSD] [English] Select on-screen- display language. [DVD [English] Select DVD audio audio] language. Options available are depends on DVD disc. [DVD [English] Select DVD subtitle subtitle] language. Options available are depends on DVD disc.

  • Page 30: Adjust Dvd Rating

    Adjust DVD rating Touch [DVD rating]. Touch an option repeatedly to select: DVD rating Options Description [Set Set password to password] restrict the play of discs. The default password is 0000. [Rating [Kid safe] Acceptable for level] children. Acceptable for general viewers.

  • Page 31: Others

    9 Others Listen to other devices You can connect an external audio/video device to the unit. Connect the car audio to the device with the supplied AV cable. Touch the upper left corner to display the main menu. Touch [AV-IN1]. Operated the connected the device (see the instructions manual of the device).

  • Page 32: Replace Fuse

    Check the electric connection. Buy a fuse that matches the voltage of the damaged fuse (15A) Replace the fuse. If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.

  • Page 33: Product Information

    10 Product information Note Product information is subject to change without prior notice. General Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Suitable speaker 4 - 8 impedance Maximum power 50 W x 4 channels output Continuous power 24 W x 4 channels...
  • Page 34 Supported formats: FAT16, FAT32 MP3 bit rate (data rate): 32-320 Kbps and variable bit rate WMA v9 or earlier Directory nesting up to a maximum of 8 levels Number of albums/ folders: maximum 99 Number of tracks/titles: maximum 999 ID3 tag v2.0 or later File name in Unicode UTF8 (maximum length: 128 bytes) Unsupported formats:...

  • Page 35: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 36 The paired mobile phone connects and disconnects constantly. The Bluetooth reception is poor. Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system. Some mobile phones may connect and disconnect constantly when you make or end calls.

  • Page 37: Glossary

    12 Glossary Bite rate The max data transfer through the USB port. Bluetooth that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities. Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com. MultimediaCard.
  • Page 38 Name of the Parts Lead) Hazardous/toxic Substance M er cur y) cadm i um ) – –...
  • Page 39 © 2009 Koninklijke Philips Electronics N.V. All rights reserved. CID3681_93_UM_V1.0...
