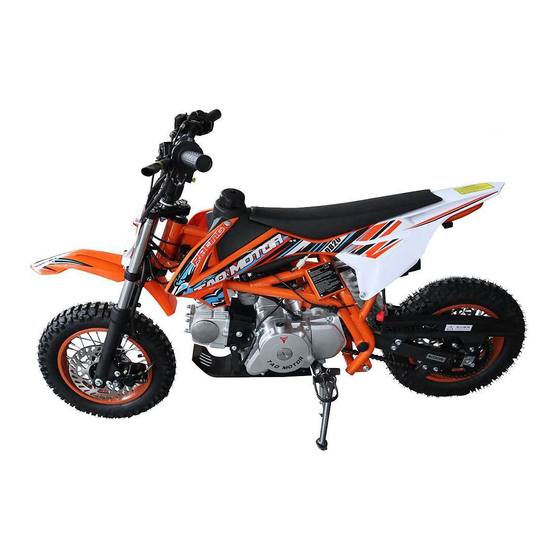

- Page 1 OWNERS MANUAL TAO MOTOR DIRT BIKE...
- Page 2 This unit should only be assembled and prepped by authorized Tao Motor Dealer or professional motorcycle mechanic. You should never to try to attempt assembly of this unit, it should be done by professionals. Death or serious injury could result from failure to follow these warnings and instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Index of Icons… ........... 2 Specification… ..........3 Safe Driving Tips… ........5 Added Load & Accessories… ....... 6 Parts Location… ........... 7 Vin Recording ..........8 Fueling ............9 User Guide… ..........10 Driving… ............. 11 Maintenance Chart…... -
Page 4: Index Of Icons
Since changes may have occurred or improvements, there may be differences between vehicles and this manual. Tao Motor Inc, reserves the right to make changes any time, without having to notify. It is important to know that the VIN (vehicle identification number) of chassis and engine, they are used to identify the vehicle and for future consultations such as the purchase of spare parts and warranty. -
Page 5: Specification

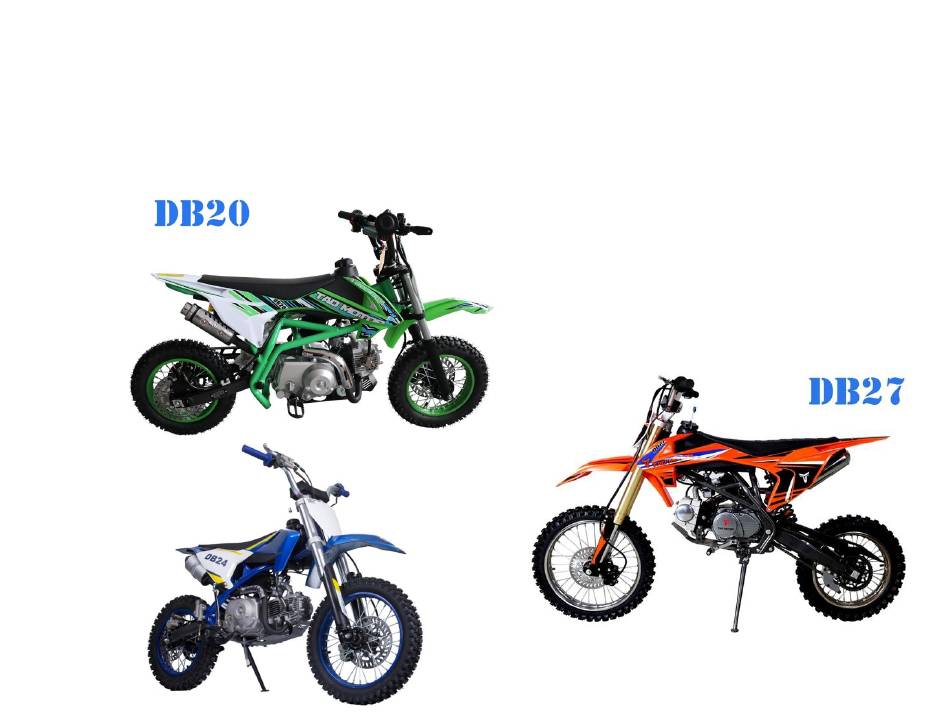

SPECIFICATION DB – 27 DB - 24 CAPACITIES Fuel Tank 5.67Liter CAPACITIES Engine Oil SAE 15-40 W Fuel Tank 4.00 Liter Climbing >16 degree Engine Oil SAE 15-40 W Acceleration Noise Level 80dB Climbing >16 degree Acceleration Noise Level 80dB CHASSIS CHASSIS Brake Front/Rear... - Page 6 DB - 20 CAPACITIES Fuel Tank 4.00 Liter Engine Oil SAE 15-40 W Climbing >16 degree Acceleration Noise Level 80dB CHASSIS Brake Front/Rear Disc - Drum (Dot 3/Dot4) Brake Foot Control, Hand Control Front Tire 2.75 x10 Rear Tire 2.75 x10 Front Tire Pressure 220.63 kpa 32 psi Rear Tire Pressure...
-
Page 7: Safe Driving Tips
Safe Driving Tips NEVER OPERATE AN DIRT BIKE ON ANY PUBLIC STREET, ROAD OR HIGHWAY, EVEN A DIRT OR GRAVEL ONE. Meet the requirements listed below: 1. SAFETY TIPS -Before driving: • Make sure you are trained for driving dirt bike and know all its control functions •... -
Page 8: Added Load & Accessories
- LOAD DO NOT LOAD OVER LOAD THIS UNIT -ACCESSORIES Tao Motor specifically selected genuine accessories for this dirt bike. You are responsible the choice, installation and use of accessories. • Always follow detailed guidelines recommend in loading •... -
Page 9: Parts Location
Parts location... - Page 10 VIN RECORD The VIN, are required to manage the warranty. • Write down the numbers for your reference when you need them. The VIN is stamped on the front of the chassis behind the number plate on the steering stem tube. The engine number is stamped on the left the underside of the dirt bike.
-
Page 11: Fueling
FUELING • Use premium gasoline only without content lead (91 octane minimum). Filling the tank: Place the dirt bike level on ground. Turn the fuel cap counterclockwise. Remove the fuel cap. Fill Fuel to desired level tighten fuel cap. Check for fuel leaks before starting engine. -
Page 12: User Guide
USER GUIDE 1)Pre-ride inspection • It is necessary for your safety, check: • Engine oil level • fuel, according to the route to go • Tire pressures • Operation of the throttle • Operation of lights and indicators • Proper operation of the brakes 2)Starting Engine Cold •... -
Page 13: Maintenance Chart
5)Braking • For normal braking: gradually apply both brakes (front and rear) while low speed. • For maximum deceleration: decelerate completely and apply both brakes the wheels firmly preventing locking. Maintenance Chart Check 4,000 8,000Km Before Km 6 Each Distance 300Km 1,000Km Months... -
Page 14: Checking, Adjustment And Maintenance
Checking, adjustment and maintenance 1. Motor oil - Check engine oil: • It is advisable to do so before riding the dirt bike. • Keep the dirt bike on firm and flat ground, on the support main stand • Remove the dipstick and then cleaning, reinsert again without screwing it to check the level. The engine oil level should be between the high and low. -
Page 15: Tires
2.Changing Engine Oil: Check the engine oil regularly and change oil as indicated in the periodic table maintenance. Steps to follow: i. Make sure the engine is off and cold . Remove drain plug underneath engine (17mm socket). ii. Once all engine oil is drained reinstall engine oil plug. iii. -
Page 16: Cleaning
Replace the spark plug cap. Whenever the spark plug must be properly tightened to prevent very hot and possibly damage the engine. Never use an improper heat range plug, because it could cause engine damage We recommend using spark plug A7RTC C7HSA Ningbo Newstar Spark Plug CO,Ltd NGK SPARK PLUG (SHANGHAI) CO.,LTD. - Page 17 10.Review and adjust valve clearance • • Check the pads are not worn to the limit as may be dangerous to drive in this condition. • This unit has disc brakes, making them bleed able. • The Valve may be damaged and the engine power decreased. Check brake lines for wear, leak and damage.
-
Page 18: Emission Control System Warranty
Federal and California emission standards over the full useful life of 10000km or 60 months which comes first. Tao Motor must warrant the emission control system on your vehicle for 5,000 km or for 30 months, whichever comes first, provided that there has been no abuse, neglect or improper maintenance of your vehicle. - Page 19 30 days. As the vehicle owner, you should be aware that Tao Motor may deny your warranty coverage if your vehicle or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
- Page 20 To find a local dealer or a service shop in your area, please call (972) 512 -8866 or E-mail service@taomotor.com. If no Tao Motor Inc dealers or contracted service shop is available in your area, repairs may be performed at any available service establishment, or by any individual, using any replacement part.
- Page 21 Tao Motor’s dealer at its place of business during customary business hours. This warranty does not cover inconvenience or loss of use ofthe vehicle or transportation of the vehicle to or from the Tao Motor’s dealer. Tao Motor shall not be liable for any other expenses, loss or damage, whether direct, incidental, consequential or exemplary arising in connection with the sale or use of or inability to use the vehicle for any purpose.
