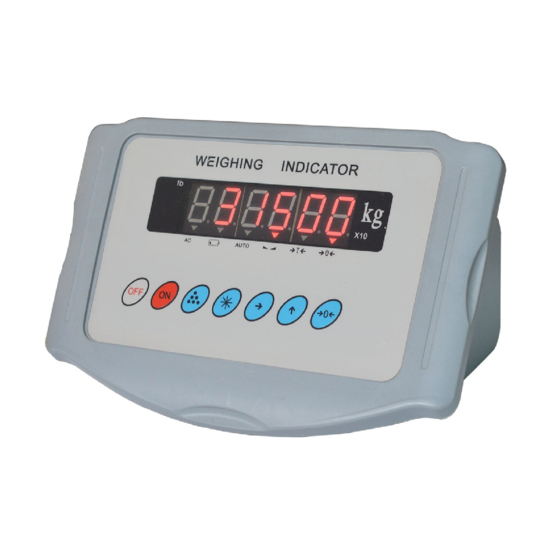

Summary of Contents for Caisun XK315A1 Series
-
Page 1: User Manual
User Manual XK315A1 series Weighing Indicators Applications: Electronic platform scale, weighing scale, etc. -
Page 2: Table Of Contents
Contents Introductions--------------------------------------------------------------------------- 2 Specifications ------------------------------------------------------------------------- 2 Front Panels--------------------------------------------------------------------------- 3 Basic functions----------------------------------------------------------------------- 4 Applications--------------------------------------------------------------------------- 5 External interfaces------------------------------------------------------------------- 6 Services-------------------------------------------------------------------------------- 7... -
Page 3: Introductions
1.1 Safety precautions WARNING! ▲ Don’t use XK315A1 series indicators in hazardous area or in dusty environments. ▲ Never flood the indicator, immerse it in liquid or pour liquids on it. ▲ Don’t expose indicator to either direct sun light or any heat sources. -
Page 4: Front Panels
Weighing modes Gross and net weight weighing Manual and automatic weight accumulation Serial interface RS232 interface with continuous ASCII data output Baud rate 1200, 2400, 4800, 9600 Optional RS485 interface External AC adapter 100-240VAC 50/60Hz Rechargeable internal battery ... -
Page 5: Basic Functions
A weight is tare and display net weight →T← -1/4 e < weight < 1/4 e →O← Unit of weighing is lb 0〗 〖- Display is temporarily set to high resolution 0.〗 〖 × 10 3.2 Keypad functions Keys Meaning Off function 【OFF】... -
Page 6: Applications
5. Press【→O←】to set the digital tare. 6. The tare status →T← is turned on. 7. The indicator switches to in net weight mode. 4.7.3 Remove tare 1. Check that the tare status →T← is displayed. 2. Press【→O←】to remove tare and switch to gross weight mode. 4.8 Simple weighing 1. -
Page 7: External Interfaces
(2) Counting operation: place object on scale, weight is displayed, press【↑】, 〖C 255〗is displayed, and the display changes over to the quantity of the object. When the display is stable, press【∴】, accumulate the weight and quantity. Accumulation can be done only at counting status. Step Operation Display... -
Page 8: Services
2 (RxD) 3 (TxD) 5(GND) 5 (GND) 6.2.5 Connecting to a printer (Adr=01-98, baud=2400) At weighing status, weighing data >20d and display is stable, press 【∴】 , weighing sheet is printed out. The second printing can be operated only when the weighing data is back to <20d. At weighing status, press【*】, then press【∴】, accumulated printing can be operated.
