Summary of Contents for Provision Creative Light CL586

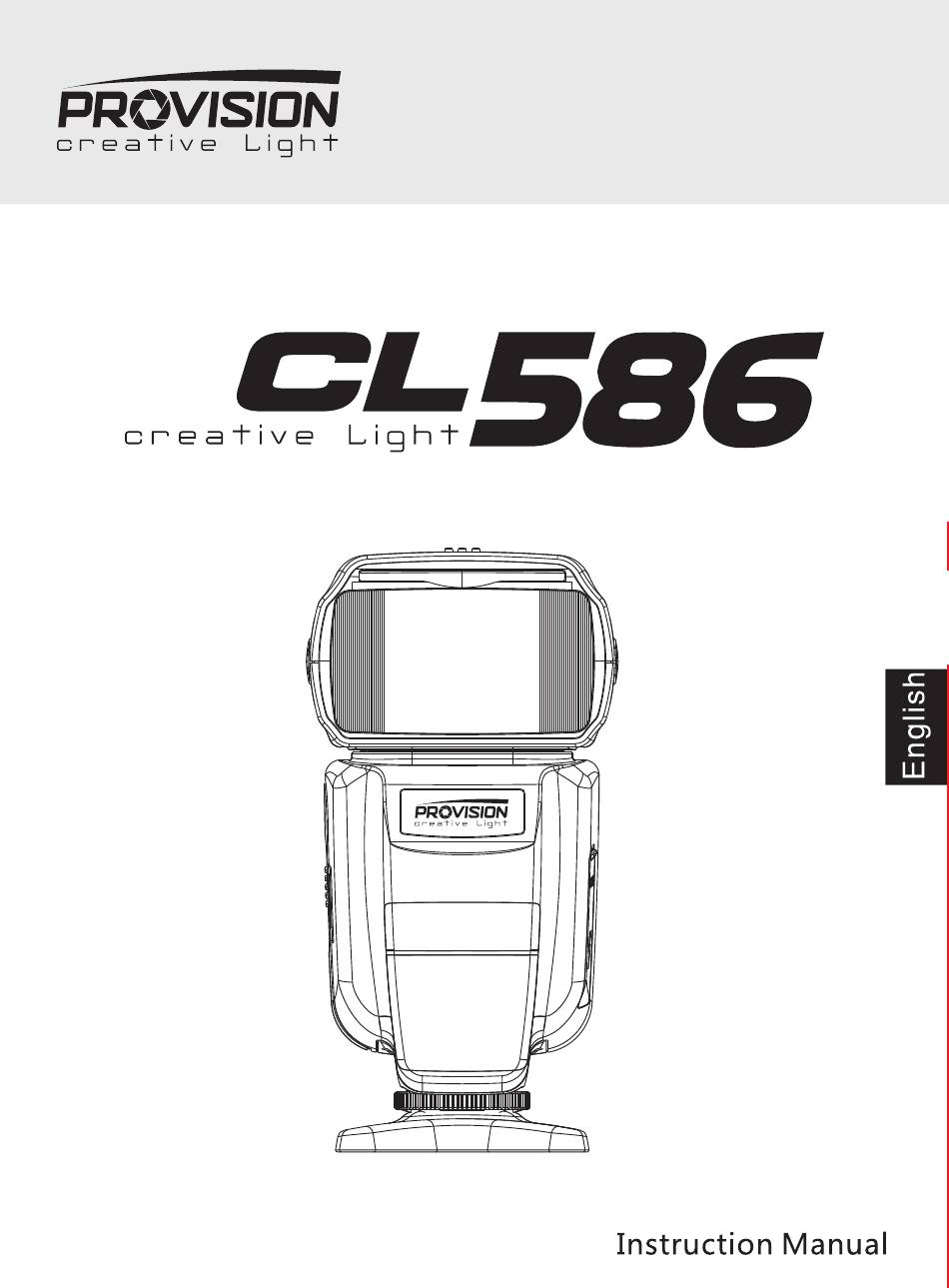

  • Page 1 SPEEDLITE 版使用说明书...
  • Page 2 The Speedlite Features 1.TTL flash 2.Manual flash 3.Multi flash 4.Wireless master function: C version support Canon wireless trigger, N version support Nikon wireless trigger. 5.Wireless slave unit function:Compatibility with the Canon and Nikon wireless flash system,realize TTL from machine,manual and frequency flash 6.S1.S2 Light flashing mode 7.Flash control by Camera (Only for the newest Canon Version) 8.High-Speed Sync 1/8000s...
  • Page 3 Thank you purchasing this speedlite.
  • Page 4 LCD screen Pressing two key restore factory settings Wireless select keys High Speedsync/ Rear-Certion/Normal flash cutover key (Canon version) External power interface button/Wireless Settings button Backlight switch/ Long press button set Switch button custom function Settings Select/Settings selection buttons button group Flash key/ Wake up key...
  • Page 6 Auto-focus anxiliary AF assist lamp When working under a darkness condition,the automatic AF which is in the right ahead of the flash light may temporary project red hard light to assist focusing. It may disturb the subject,you can turn to manual focusing. Set the Bounce Drecion...
  • Page 7 (S1/S2) Induction mode High Speedsync < > M/MULTI Manual flash/ Rear-Certain < > Multiple frequency flash Flash Exposure Bracketing < > Buzzer switch < > Canon TTL mode <E-TTL> <i-TTL> Nikon TTL mode Custom function icon < > Power regulation Overheating protection icon Power trimming/stroboscopic Aperture value...
  • Page 8 Lock...
  • Page 9 slide the...

  • Page 10: Ttl Flash

    TTL Flash Set the camera's shooting mode to <P>( Program automatic exposure) or < >( Auto),when fully automatic flash will make photography became as simple as <P> mode and < > mode under normal automatic exposure. Set the flash exposure compensation value 1.Select the flash mode 2.Press 【MODE】...

  • Page 11: Turn On The Power

    Turn on the power following: After automatically shut off power opened,When the speedlite do not working within 60 seconds,the CPU automatically into Sleep.In this case press any key to wake up the speedlite.When the speedlite does not work for more than 30 minutes,the CPU will shut down automatically. State of charge indicator Before shooting,confirmed that flash charging indicator light and camera viewfinder lights...
  • Page 12 Flash Sync Speeds and Apertures Used Aperture Setting Shutter Speed Setting Automatic Set automatically(1/60 sec.~1/Xsec.) Set manually(30 sec.~1/Xsec.) TV/S Automatic AV/A Set automatically(30 sec.~1/Xsec.) Manual Set manually(buLb,30 sec.~1/Xsec.) Manual 1/X sec.is the camera’s maximum flash sync speed.
  • Page 13 Using E- TTL and Autoflash in the shooting Modes Just set camera’s shooting mode to <AV/A>(aperture -priority AE), <TV/S>(shutter-priorityAE),or<M>(manual)and you can use E-TTL/ i-TTL autoflash. Select this mode when you want to set the shutter speed manually. The camera then automatically set aperture matching the shutter speed to obtain a standara exposure.If the aperture display blinks, TV/S it means that the background erposure will be underexposed or...

  • Page 14: Manual Flash Mode M

    Manual flash mode M When you need a manual exposure,according to own requirements to set the brightness of the flash output between 1/128 power to 1/1 full power. Adjust the flash output with 1/3 speed increment,press the zoom button 【ZOOM】 into the manual zoom. Select the flash mode Press 【MODE】...

  • Page 15: Fel:flash Exposure Lock

    FEB setting value(canon version) You can take three flash shots while automatically changing the flash output for each shot up to ± 3 stops in 1/3-stop increments (1/2-stops increments if the camera enables only 1/2-stop increments). This is called FEB(Flash Exposure Bracketing). For Feb,set the camera's drive mode to "single shot".Before shooting to ensure that flash ready.
  • Page 16 The number of flashes set Select the Settings button group 【MIDDLE】key to display flashing,Select the Settings button group 【LEFT】 【RIGHT】key to set the number of flashes,the available number of flashes for 1-40.After Values setted and then select the Settings button group 【MIDDLE】 key to confirm.

  • Page 17: Frequency Setting

    Stroboscopic flash mode(Multi) Using Multi mode,you can issue a series of quick flash,it can shoot multiple images of moving objects on a photo,you can set the flash frequency (number of flashes per second can use Hz to show),the number of flashes and flash output.During repeated Multi mode,Single exposure create a strobe effect of multiple exposures.This mode is often used when shooting moving objects.

  • Page 18: Wireless Setting

    Wireless setting Set master wireless channel: Press[wireless setting] key to channel number (number under CH icon) flicker.Press[left][right] key to set wirelss channel,the setable channels are 1 4. Set master unit flash on/off: Wireless channel You can disable the master control unit flash,so only the flash slave unit will flash.

  • Page 19: Wireless Flash Mode

    Wireless flash mode Wireless flash system is composed of multiple flash with wireless flash function complete the work.You can use as simple as ordinary TTL auto flash to create multiple flash effects. Press( Wireless select)key. The flash will be set wireless flash mode. LCD display Master.Press(wireless select) Key again.
  • Page 20 Manual wireless master mode(MASTER Canon) Under Master mode, press [MODE] key to set master flash as manual M mode. Meanwhile you can set different output of every slave unit,you can complete setup using the master unit slave made is same as master mode. 1.Press[MODE]key to set as M mode 2.Press[wireless setting] key to<...
  • Page 21 Automatic wireless master mode(MASTER Canon) Under master mode, press [MODE] key to set master flash as automatic E-TTL mode for automatic flash shooting. 1.Press [MODE] key to set E-TTL mode 2.Press [wireless setting] key to< >flicker. 3.Select flash light ratio. Press [left] [right] key to set flash light ratio which can be <RATIO>,<RAITO A: B>...
  • Page 22 Wireless master mode(MASTER NIKON) Pressing [wireless option] button until screen show as mode MASTER . " " Wireless setting Master slave wireless channel and master item flash switch set same as Canon setting. Note:Nikon flash as master,can set slave item mode slave group mode and power.
  • Page 23 Stroboscopic Wireless master control mode (MASTER CANON) When in master mode,press [MODE] key set master speedlight as Multi mode,then you can set slave speedlight,using master item to set all the function (slave item mode is same as master item). 1.press [MODE] button to send Multi mode. 2.Press [wireless set] button until<...
  • Page 24 Multi-flash wireless master mode(MASTER Nikon) When the master unit is Multi flash mode,the slave unit supports"wireless off and Multi fiash Mode" Settings. 1.Press [MODE] button to set the master lights Multi-flash mode. 2.Each slave unit group mode settings Group A: Press [Wireless Setup] button to <A> flash.
  • Page 25 Auto wireless/manual master mode (MASTER NIKON) MASTER item in TTL or M mode,slave item support wireless close、 " TTL mode and M mode" these three modes set. 1. Press [MODE] setting master light as auto I-TTL mode or manual M mode. Finsh slave speedlight group setting, open wireless flash mode group will show in screen,wireless close group number will not show.
  • Page 26 S1 S2 modes Rotating flash head,let inductor to focuse the master light in S1,S2 mode. Set up optical transmission flash mode S1, S2. 1.Press wireless select button until the LCD display S1, S2. (1)When you press the Settings button【RIGHT】keys,the compensation value in turn increases.
  • Page 27 SLAVE C indicate receiving wireless flash signals from the canon 7D /60D/600D camera flash and 580EX II,600EX,ST-E2.SLAVE N indicate received C instruction form Nikon camera as well as C instruction signal of SB-900/800/700, SU-800 .SLAVE C/N supports 4 channel, 3 different groups,TTL,manual and stroboscopic wireless flash.Using this mode by rotating flash lamp,It make the wireless trigger sensors toward the master speedlite.Before shooting,this speedlite and the Master speedlite should...
  • Page 28 “ ”High-speed sync “ ”Rear-curtain sync settings High-speed sync: It can make flash with the camera high shutter speed sync operation,in the use of flash photography outdoor portraits and other strong light source shall use a large aperture, this model is very useful. Rear-curtain sync:With a slow shutter speed,you can create a light trail following the subject, the flash fires right before the shutter closes.
  • Page 29 S2 mode: It is also called“pre-flash cancel mode”. This mode is similar with S1 mode.but it can neglect the pre-flsah given by Ttl flash. Therefore,it can support the master flash and sync with your internal flash. you can try to use S2 mdoe. If the auxiliary lamp selection S1/S2 mode can not properly synchronized with the master flash,make sure that the flash...
  • Page 30 2. Optical transmission wireless flash shooting The improved wireless triggering sensor trigger have higher sensor sensitivity, S1,S2 mode can work the outdoor environment,wireless trigger sensing have distance of 15 meters. sync before shooting.
  • Page 31 Muti-flash and wireless flash configuration 1.wireless radio instruction You can creat two or three slave groups to make better shooting efffect to meet your requiremetns. Master flash setting flash ratio of TTL auto flash shooting,manual flash output, muti-flash etc. (1)wireless flash of two slave units made up by speedlite.There is a slave C fucntion and a slave N function to choos.Setting channel: 1.2.3.4 Setting group:Two speedlites can be set up group A and group B.

  • Page 32: Backlight Display

    Sound prompts: Different sound ways will prompt the different working conditions of the speedlite so as to make you focus on shooting only. Long press the custom function setting button to custom settings the beep switch will be turned on or off. 1.A long beep: recycling done 2.

  • Page 33: Bounce Flash

    Bounce flash High-speed burst modle Set position and operating range: Outdoor Outdoor Indoor Indoor The camera menu access (only Canon newer models) It may be operated by a camera flash menu access in support of E-TTL (Canon) the newest camera.In the flash control menu “External flash function settings”and “External flash Custom settings”can set the flash parameters;such as switching E-TTL mode / manual flash mode and multiple flash mode (Multi),wirelessflash setting,exposure bracketing,...
  • Page 34 Reflection flash White celling from Fix the lambency shade on the speedlite.The reflect lighting slow...

  • Page 35: Custom Function Settings

    Custom function settings You can follow your shooting preferences custom flash function.Use a custom function to complete the set. Press the "custom function setting button” to the shown on the left. Choose the functionality they need,press【up】【down】key setting Custom Settings and Function Set ID Function No.
  • Page 36 Circuit design:Insulated Gate Bipolar Transistor(IGBT) Flash index:58(ISO100,180mm) Flash coverrage:18~180mm Manual,Automatie Zoom Swinging/Tilting flash head (bounce flash) Flash mode :TTL,M,FEB,Master、Slave,S1,S2,Multi The wirelss trigger: Wireless induction flash lighting The wireless cited flash distance:Indoor 20-30 meters, Outdoor 10-15 meters Up and down whirl angle degree:-7~90degree Left and right whirl angle degree:0~180degree Slave Group and Unit: 4 Slave lommunication channels (1,2,3,4) 3 Slave unit group(A,B,C)
  • Page 37 board board to bright 1.Rotating the head of 3.Pull-in wide angle flash light up to 90 spread board and degree. leave reflect card. board. 2.Pull-out wide angle spread board and reflect card. board. diffuse diffuse to diffuse...
  • Page 38 www.provision-creativelight.com...
