Installation Instructions
GPF825B, Black Trim Kit
GPF825C, Bisque Trim Kit
GPF825W, White Trim Kit
Before you begin – Read these instructions completely and carefully.
IMPORTANT: Save these instructions for local inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions with your Owner's Manual for future reference.
CAUTION
WARNING
To prevent electric shock, disconnect
electrical power supply to dishwasher
before changing panels. Do not operate
dishwasher while changing panel.
On new installations, do not remove wood base until you
are ready to install the dishwasher. The dishwasher will
tip over when the door is opened.

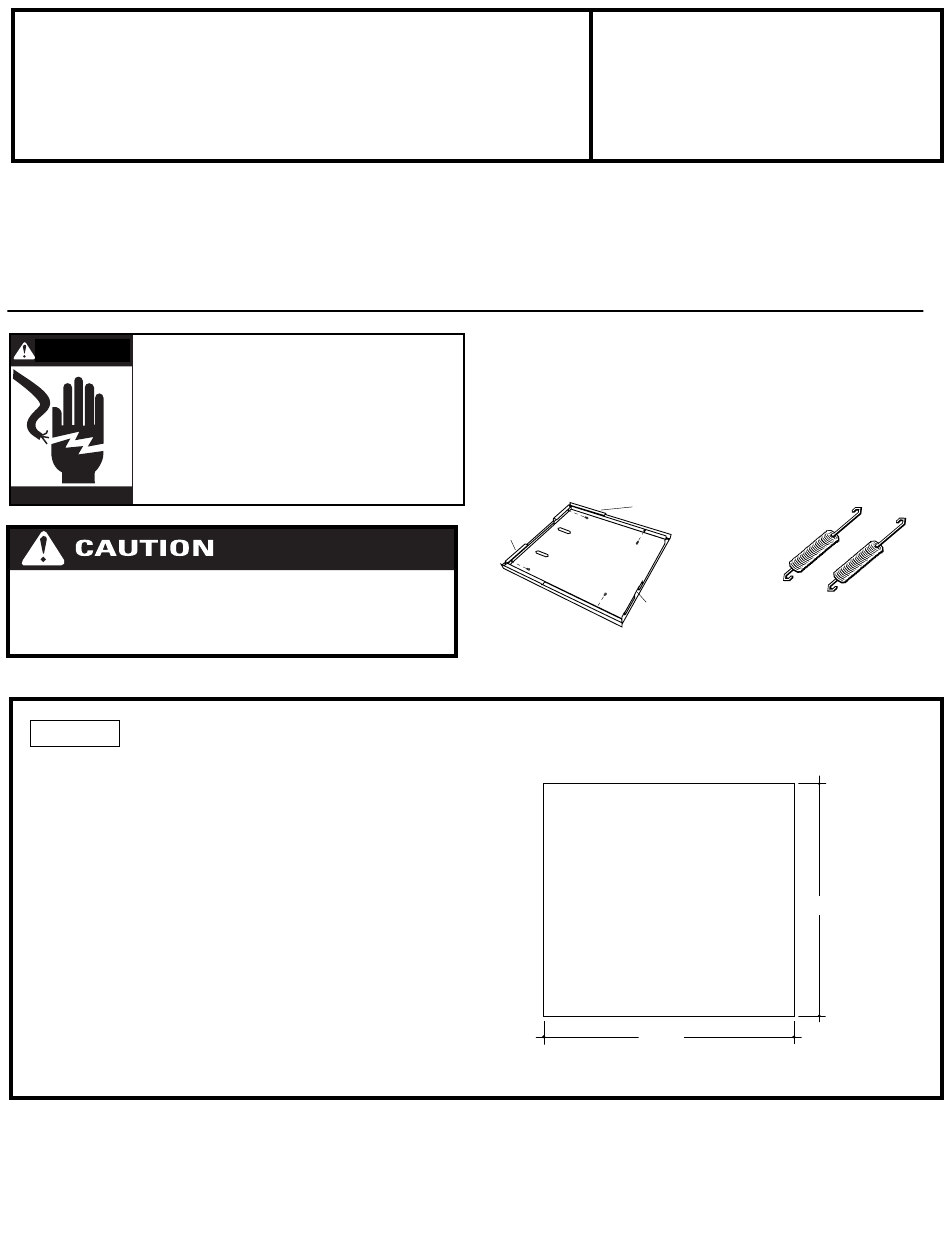

STEP 1 CUT 1/4" THICK CUSTOM PANEL TO SIZE
• Cut door panel to the dimensions shown in Figure 1.
NOTE: The trim provided will conceal the cut edges of
the panel.
Tools and Materials Required:
• Stubby Phillips screwdriver
• Gloves to protect against sharp edges
• Safety glasses
The GPF825 trim kits provide for the installation
of a 1/4" thick custom door panel.
This kit includes:
Side Trim
Top
Trim
Adjustable
Steel Panel
Bottom
Trim
Fully Assembled Door Panel Frame
1/4" Thick
Door Panel
23-1/2"
Figure 1
GPF825
Series Kits
2 Door Springs
To Be Used On All Models
Except PDW8500
25-1/16"
Advertisement
Related Manuals for GE GPF825 Series
Summary of Contents for GE GPF825 Series
-
Page 1: Installation Instructions
Installation Instructions GPF825 GPF825B, Black Trim Kit GPF825C, Bisque Trim Kit Series Kits GPF825W, White Trim Kit Before you begin – Read these instructions completely and carefully. IMPORTANT: Save these instructions for local inspector’s use. IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES. NOTE TO INSTALLER: Be sure to leave these instructions with the Consumer. - Page 2 STEP 2 REMOVE DOOR PANEL Bottom Figure 2 Phillips Screws Figure 3 • Open dishwasher door. • Remove the two screws on the bottom of the door panel • Remove the 6 Phillips head screws along the sides of (Figure 3). Retain screws. the door (Figure 2) holding the inner door to the •...
- Page 3 STEP 4 INSTALL THE ASSEMBLED PANEL Escutcheon Bottom Phillips Screws Figure 9 Figure 7 Figure 8 • Close the dishwasher door. • Open the dishwasher door and reinstall the original 6 • Slide the panel assembly into the escutcheon tab (Figure 7).
- Page 4 Note: To increase tension, use top STEP 5A TEST DOOR BALANCE hole. To decrease tension use lower hole. Adjust both springs to the same FOR MODEL PDW8500 ONLY tension setting to correct balance. INCREASE • Release door latch. Open and release the door. If the door tends to drop when released, spring tension needs to be increased.
