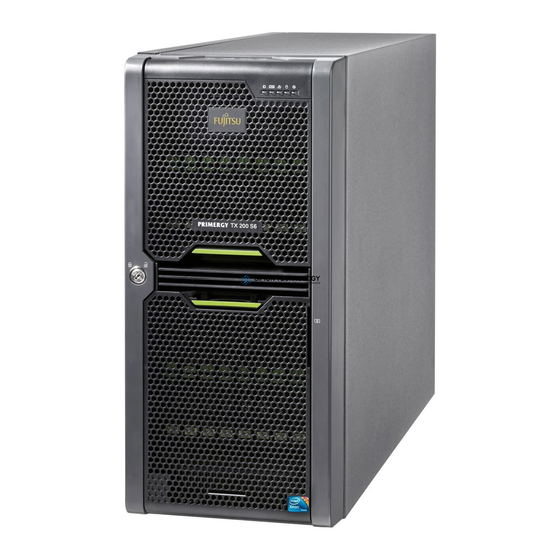

Fujitsu PRIMERGY TX200 S6 Service Supplement Manual

Hide thumbs Also See for PRIMERGY TX200 S6:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
Service Supplement - English
PRIMERGY TX200 S6
Server
Service Supplement
Edition July 2010

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY TX200 S6

Summary of Contents for Fujitsu PRIMERGY TX200 S6

  • Page 1 Service Supplement - English PRIMERGY TX200 S6 Server Service Supplement Edition July 2010...

  • Page 2: Copyright And Trademarks

    – The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual. – No part of this manual may be reproduced in any form without the prior written permission of Fujitsu.
  • Page 3 Before reading this manual For your safety This manual contains important information for safely and correctly using this product. Carefully read the manual before using this product. Pay particular attention to the accompanying manual "Safety notes and other important information" and ensure these safety notes are understood before using the product.
  • Page 4 (hereafter, "high safety use"). Customers should not use this product for high safety use unless measures are in place for ensuring the level of safety demanded of such use. Please consult the sales staff of Fujitsu if intending to use this product for high safety use.
  • Page 5 Only for the Japanese market: Although described in this manual, some sections do not apply to the Japanese market. These options and routines include: – USB Flash Module (UFM) – CSS (Customer Self Service) Service Supplement TX200 S6...
  • Page 6 Service Supplement TX200 S6...

  • Page 7: Table Of Contents

    Contents Introduction ......9 Concept and target groups ....9 Documentation overview .
  • Page 8 Contents 4.10 Replacing the UFM ..... . . 44 4.11 Replacing the system board ....46 Appendix .

  • Page 9: Introduction

    Introduction The PRIMERGY TX200 S6 Server is an Intel-based server for medium-sized and large networks. The server is suitable for use as a file server as well as an application, information, or Internet server. It is available as a floorstand or rack model.
  • Page 10 Documentation overview Information/procedure Manual Detailed safety notes "Safety notes and other important information" manual Features and technical data of the server Operating Manual Installation and operation, among other things: – External connectors – Operation – Configuration of the server – Installation of the rack mounting kit Troubleshooting Installation/removal or replacing of the CSS components:...
  • Page 11 Documentation overview Information/procedure Manual Extensions and upgrades: Options Guide For some components only the installation routine is described in the Options Guide. Removing these components proceed in reverse order. – Extending/replacing the main memory – Installing a second processor / replacing the processor / replacing the heat sink –...

  • Page 12: Notational Conventions

    Notational conventions Notational conventions The following notational conventions are used in this manual: Text in italics indicates commands or menu items. "Quotation marks" indicate names of chapters and terms that are being emphasized. Ê describes activities that must be performed in the order shown.

  • Page 13: Procedure

    Procedure CAUTION! The actions described in these instructions should only be performed by service personnel. Ê First of all please familiarize yourself with the safety instructions in the chapter "Safety instructions" on page Ê Ensure that all required manuals (see Service DVD) are available, print out the PDF files if necessary.
  • Page 14 Procedure Service Supplement TX200 S6...

  • Page 15: Safety Instructions

    Safety instructions The following safety instructions are also provided in the manual "Safety notes and other important information". This device complies with the relevant safety regulations for data processing equipment. CAUTION! The actions described in this manual should only be performed by service personnel.
  • Page 16 Safety instructions CAUTION! This device must only be connected to properly grounded power outlets or insulated sockets of the rack's internal power supply with tested and approved power cords. Ensure that the device is connected to a properly grounded power outlet close to the device.
  • Page 17 Safety instructions CAUTION! Proper operation of the system (in accordance with IEC 60950-1/2 resp. EN 60950-1/2) is only ensured if the casing is completely assembled and the rear covers for the installation slots have been fitted (electric shock, cooling, fire protection, interference suppression).
  • Page 18 Safety instructions CAUTION! Install the screw removed during installation/detaching Internal Options in former device/position. To use a screw of the different kind causes a breakdown of equipment. The installation indicated on this note is sometimes changed to the kind of possible options without notice. Batteries CAUTION! Incorrect replacement of batteries may lead to a risk of explosion.
  • Page 19 Safety instructions Working with CDs/DVDs/BDs and optical drives When working with devices with optical drives, these instructions must be followed. CAUTION! Only use CDs/DVDs/BDs that are in perfect condition, in order to prevent data loss, equipment damage and injury. Check each CD/DVD/BD for damage, cracks, breakages etc. before inserting it in the drive.
  • Page 20 Safety instructions Do not contaminate the CD/DVD/BD surface with fingerprints, oil, dust, etc. If dirty, clean with a soft, dry cloth, wiping from the center to the edge. Do not use benzene, thinners, water, record sprays, antistatic agents, or silicone-impregnated cloth. Be careful not to damage the CD/DVD/BD surface.
  • Page 21 Safety instructions Modules with Electrostatic-Sensitive Devices Modules with electrostatic-sensitive devices are identified by the following sticker: Figure 1: ESD label When you handle components fitted with ESDs, you must always observe the following points: Switch off the system and remove the power plugs from the power outlets before installing or removing components with ESDs.
  • Page 22 Safety instructions Service Supplement TX200 S6...

  • Page 23: Replacement Routines

    Replacement routines CAUTION! Follow the safety instructions in the chapter "Safety instructions" on page Preparation 4.1.1 Floorstand model You will find a detailed description of "Opening the server" and "Removing the front cover" in the Options Guide TX200 S6. 4.1.1.1 Opening the server Ê...

  • Page 24: Rack Model

    Preparation 4.1.2 Rack model You will find a detailed description of "Opening the server" and "Removing the rack front cover" in the Options Guide TX200 S6. 4.1.2.1 Opening the server Ê Terminate all applications and shut down the server correctly. Ê...

  • Page 25: Removing The Rack Front Cover

    Preparation 4.1.2.2 Removing the rack front cover The following replacement routines require removing the rack front cover: – Replacing the front panel module – Replacing the intrusion switches Ê Remove two knurled screws on either side of the rack front cover. Ê...
  • Page 26 Preparation Figure 3: Example: Removing system fan 2&4 Ê Disconnect the fan cable from the connector FAN2 (if there is a second fan cable, disconnect this from the connector FAN4) on the system board. Ê Press the two green locks of the air duct together (1). Ê...

  • Page 27: Removing The System Fan 1 (Or 1&3)

    Preparation 4.1.3.2 Removing the system fan 1 (or 1&3) Figure 4: System fan 1 and system fan 1&3 The standard system fan 1 is shorter and has just one fan cable; the redundant system fan 1&3 (dual fan, two fans are integrated internally) is taller and has two fan cables.

  • Page 28: Replacing The Front Panel Module

    Replacing the front panel module Ê Pull system fan1 (or 1&3) in the direction of the arrow (2) to disengage the four hooks. Ê Take system fan1 (or 1&3) out (3). Replacing the front panel module Ê Open the server and remove the front cover or the rack front cover as described in the section "Preparation"...
  • Page 29 Replacing the front panel module Figure 7: Removing cables Ê Remove the two cables. Thread the cables out of the cable guides. Ê Remove the defective front panel module. Ê Push the new front panel module halfway into the upper bay of the drive cage.

  • Page 30: Replacing The Standard Psu

    Replacing the standard PSU Replacing the standard PSU Ê Open the server as described in the section "Preparation" on page Ê Remove the system fan 2 and the system fan 1 as described in the section "System fans" on page Ê...
  • Page 31 Replacing the standard PSU Figure 9: Inserting centering tabs in fixing plate Ê Push the new power supply unit into the bay. Ensure that the centering tabs of the power supply unit engage in the fixing plate. Ensure that no cables are strained or trapped.

  • Page 32: Replacing The Power Backplane

    Replacing the Power backplane Replacing the Power backplane Ê Open the server as described in the section "Preparation" on page Ê Remove the system fan 2&4 and the system fan 1&3 as described in the section "System fans" on page Ê...
  • Page 33 Replacing the Power backplane Ê Insert the new Power backplane and push the Power backplane upward until it engages in the PS cage guides. Ê Fasten the Power backplane with one screw in the PS cage (see figure 10 on page 32).

  • Page 34: Replacing The 3.5" Hdd Backplane

    Replacing the 3.5“ HDD backplane Replacing the 3.5“ HDD backplane As spare part the 3.5“ HDD backplane is already mounted in the backplane holder. Ê Open the server as described in the section "Preparation" on page Ê Remove all the hot-plug hard disk drives (for a description see the Operating Manual).
  • Page 35 Replacing the 3.5“ HDD backplane Figure 13: Removing the backplane holder Ê Lift the backplane holder a little way and tilt it slightly away from the HDD cage (1). Ê Lift the backplane holder up and off (2). Ê Place the backplane holder with the new 3.5“ HDD backplane against the HDD cage at a slight angle.

  • Page 36: Replacing The 2.5" Hdd Backplane

    Replacing the 2.5“ HDD backplane Replacing the 2.5“ HDD backplane Two 2.5“ HDD backplanes are mounted on the HDD cage. Ê Open the server as described in the section "Preparation" on page Ê Remove all the hot-plug hard disk drives (for a description see the Operating Manual).
  • Page 37 Replacing the 2.5“ HDD backplane Figure 15: Removing the 2.5“ HDD backplane Ê Lift the 2.5“ HDD backplane a little way and pull it slightly away from the HDD cage. Ê Take the defective 2.5“ HDD backplane out. Ê Place the new 2.5“ HDD backplane against the HDD cage at a slight angle. Hook the backplane in the left cant and then push it inward.

  • Page 38: Replacing The Intrusion Switches

    Replacing the intrusion switches Replacing the intrusion switches In case of the floorstand model, two intrusion switches monitor the removing of the left side cover and the HDD cover. In case of the rack model, only one intrusion switch is active, this one monitors the removing of the top cover. One intrusion switch is situated at the side (floorstand model) or the top (rack model) of the HDD cage, the other intrusion switch at the front cover under or besides the HDD cage.
  • Page 39 Replacing the intrusion switches Figure 17: Removing the intrusion switch positioned front side Ê Remove the two screws (see circles). Ê Take out the intrusion switch inward. Ê Take the intrusion switch cable out of the cable clamp. CAUTION! Note the cable routing. Ê...

  • Page 40: Replacing The Idtemp Combo

    Replacing the IDTEMP combo Replacing the IDTEMP combo This board includes two important system components: – EEPROM for the chassis ID and ident number of the server – temperature sensor for monitoring the environment temperature The data for the EEPROM, and the current temperature values as well, are transmitted to the system board via the connected I C bus.
  • Page 41 Replacing the IDTEMP combo Figure 19: Removing the cable clamp Ê Remove the green cable clamp from the connector of the I C cable. Ê Remove the I C cable from the connector on the IDTEMP combo. Figure 20: Removing the IDTEMP combo from the holder Ê...

  • Page 42: Replacing The Tpm

    ID prom using the "ChassisIDProm Tool" after installing the new IDTEMP combo. The following information does not apply to the Japanese market: This tool is available for download from the following Fujitsu Technology Solutions support page: http://partners.ts.fujitsu.com/com/service/intelservers/tools Replacing the TPM TPM is the short form for Trusted Platform Module.
  • Page 43 Replacing the TPM Ê Remove the defective TPM on the upper side of the system board. CAUTION! Ensure to turn the screw clockwise in order to remove it! Otherwise the thin metal bar may break, rendering it impossible to unscrew the screw. Ê...

  • Page 44: Replacing The Ufm

    Replacing the UFM Ê Reinstall the system fan 2 (or 2&4) (for a detailed description see the Options Guide). Ê Close the server and connect all power plugs (for a detailed description see the Options Guide). 4.10 Replacing the UFM UFM is the short form for USB Flash Module.
  • Page 45 Replacing the UFM Figure 25: Preparing the UFM Ê Remove the nylon screw from the new UFM (1). Ê Remove the UFM spacer (2). Ê Connect the new UFM to the system board and the remaining UFM spacer (see figure 24 on page 44).

  • Page 46: Replacing The System Board

    Replacing the system board 4.11 Replacing the system board The system board can be equipped with an optional TPM (Trusted Platform Module). This module enables third party programs to store key information (e. g. drive encryption using Windows Bitlocker Drive Encryption).
  • Page 47 Replacing the system board Figure 26: Position of the screws Ê Remove the ten screws from the system board. Ê Lift the system board slightly using the socket of PCI slot 5, thereby you lift the system board out of the centre rings of the spacer bolts. Ê...
  • Page 48 Replacing the system board Ê Insert the system board by holding it at a slight angle. Slide the connectors into the connector panel. CAUTION! Do not lift or handle the system board by any of its heat sinks! Ensure not to damage the EMI springs to comply with applicable EMC regulations and satisfy cooling requirements and fire protection measures.
  • Page 49 Replacing the system board If the customer owns a license key for Advanced Video Redirection and Remote Storage (iRMC2 Advanced Pack), the license key has to be loaded onto the iRMC S2 via the iRMC S2 web interface after replacing the system board.
  • Page 50 Replacing the system board Service Supplement TX200 S6...

  • Page 51: Appendix

    Appendix Board layout The board layout of the system board is described in the Technical Manual of the system board D2799. 5.1.1 Front panel module Part number: C26361-K644-Z833 Connector front panel cable Connector USB cable Service Supplement TX200 S6...

  • Page 52: Hdd Backplane

    Board layout 5.1.2 3.5“ HDD backplane Part number: C26361-K990-Z417 Connector SAS/SATA cable Connector power cable Service Supplement TX200 S6...

  • Page 53: Hdd Backplane

    Board layout 5.1.3 2.5“ HDD backplane Part number: SNP:A3C40086493 Connector SAS/SATA cable Connector power cable Service Supplement TX200 S6...

  • Page 54: Power Backplane

    Board layout 5.1.4 Power backplane Part number: SNP:A3C40100500 No. Xn connector Connector for cable T26139-Y3997-V1/A3C40101525 T26139-Y3952-V451/A3C40101318 T26139-Y3986-V401/A3C40101635 T26139-Y3758-V8/A3C40057456 Service Supplement TX200 S6...

  • Page 55: Index
