Samsung ML3560 Remanufacturing Instructions
Hide thumbs
Also See for ML3560:
- Manuel d'utilisation (128 pages) ,
- User manual (124 pages) ,
- Service manual (156 pages)
Advertisement
Quick Links
Remanufacturing Instructions
Samsung ML3560

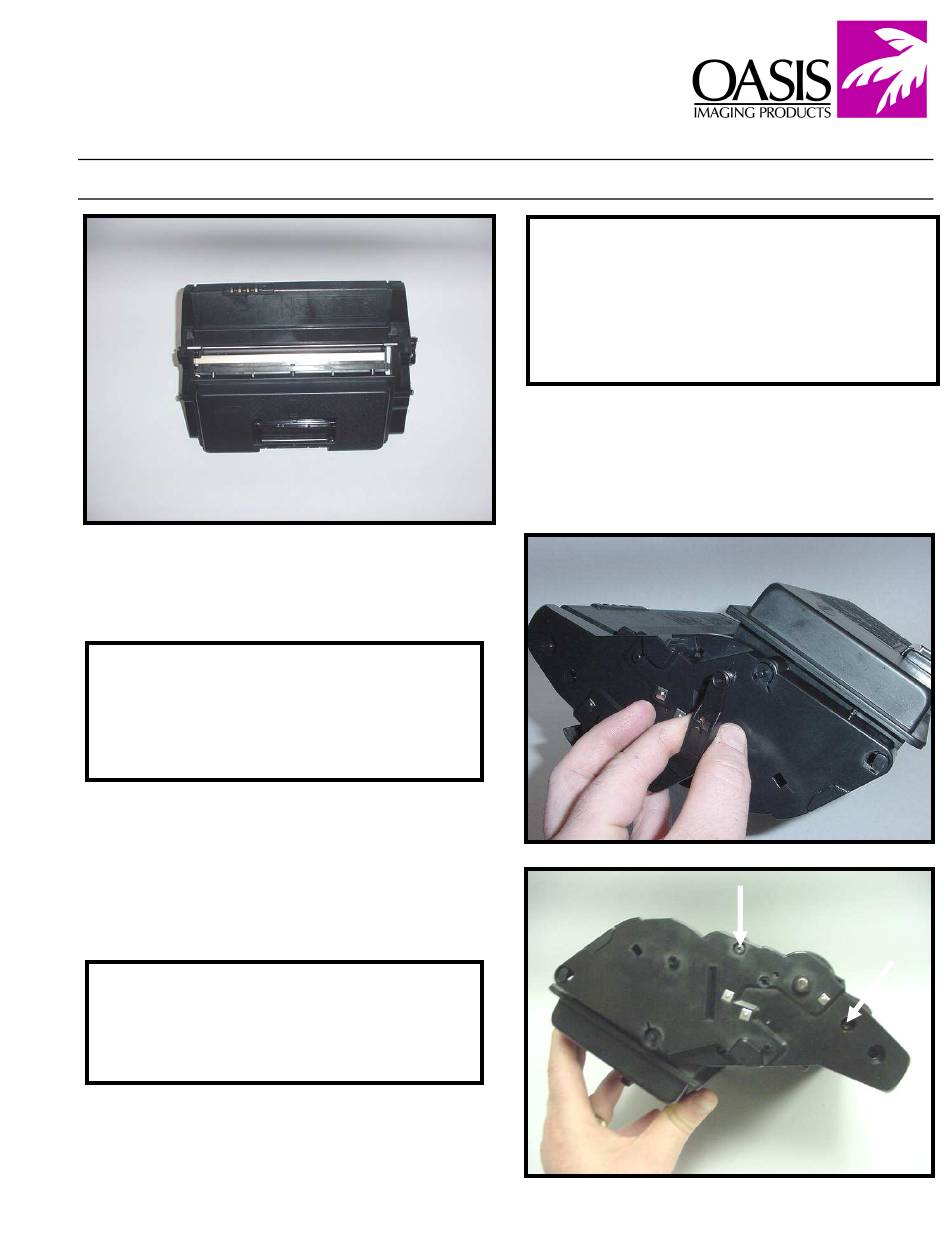

1. Remove the drum shutter arms from both
ends of the cartridge to remove the drum
shutter (Fig.1).
2. Remove two screws from the contact side
end cap (Fig. 2). Do not remove end cap at
this time.
For Technical Support, please call (800) 322 8992 ext 110
OEM Reference Information:
Part #
ML 3560D6
ML 3560DB
Fig. 1
Fig. 2
Yield @ 5%
6000
12000
Page 1
Advertisement
Related Manuals for Samsung ML3560
Summary of Contents for Samsung ML3560
- Page 1 Remanufacturing Instructions Samsung ML3560 For Technical Support, please call (800) 322 8992 ext 110 OEM Reference Information: Part # Yield @ 5% ML 3560D6 6000 ML 3560DB 12000 1. Remove the drum shutter arms from both ends of the cartridge to remove the drum shutter (Fig.1).
-
Page 2: 2007 Oasis Imaging Products, Inc
3. Remove two screws from the gear side end cap (Fig. 3). Fig. 3 4. Remove two screws from the gear plate (Fig. 4). Fig. 4 5. Remove the gear and plate from the end cap (Fig. 5). Fig. 5 Spring location 6. - Page 3 7. The contact side end cap has a locking tab that secures the end cap to the frame of the cartridge (Fig. 7). Fig. 7 8. Gently pry the end cap from the top of the cartridge body and rotate clock wise to release the end cap from the tab on the cartridge frame (Fig.
- Page 4 11. Remove the toner hopper (Fig. 11). Fig. 11 12. Remove the screw that secures the drum axle to the end cap (Fig. 12). Fig. 12 13. Remove the drum unit (Fig. 13). Fig. 13 14. On the toner hopper section, make a note of the gear orientation.
- Page 5 15. Remove the screwfrom the gear in the center (Fig. 15). Remove the remaining four gears. Screw Fig. 15 16. Remove the white bearing from the developer roller shaft (Fig. 16). Fig. 16 Fig. 17 17. On the opposite side of the hopper, release the locking tab that holds the black spring housing in place (Fig.
- Page 6 Fig. 19 19. Remove the developer roller bearing and the screw that secures the end plate (Fig. 19). 20. Pry up on the metal plate on each end of the toner hopper to release the locking tabs (Fig. 20). Fig. 20 21.
- Page 7 23. Use a small flat head screw driver to pry of the developer roller end plate (Fig. 23). Fig. 23 24. Remove the developer roller end plates from each side of the toner hopper (Fig. 24). Fig. 24 25. Remove the developer roller from the toner hopper (Fig.
-
Page 8: 2007 Oasis Imaging Products, Inc
27. NOTE: The next two steps are only needed if you are sealing the cartridge. Remove the screw that secures the developer roller housing (Fig. 27). Fig. 27 28. Remove the developer roller housing (Fig. 28). Clean the toner hopper thoroughly. Apply seal and secure developer roller housing with one screw. - Page 9 31. Remove the two screws that secure the PCR housing to the waste bin (Fig. 31). Remove the housing for cleaning. Fig. 31 32. Remove the plastic end plates from the PCR and foam roller (Fig. 32). Clean the PCR, use compressed air to clean the foam roller and set aside for reassembly.
