Summary of Contents for BAFANG C965

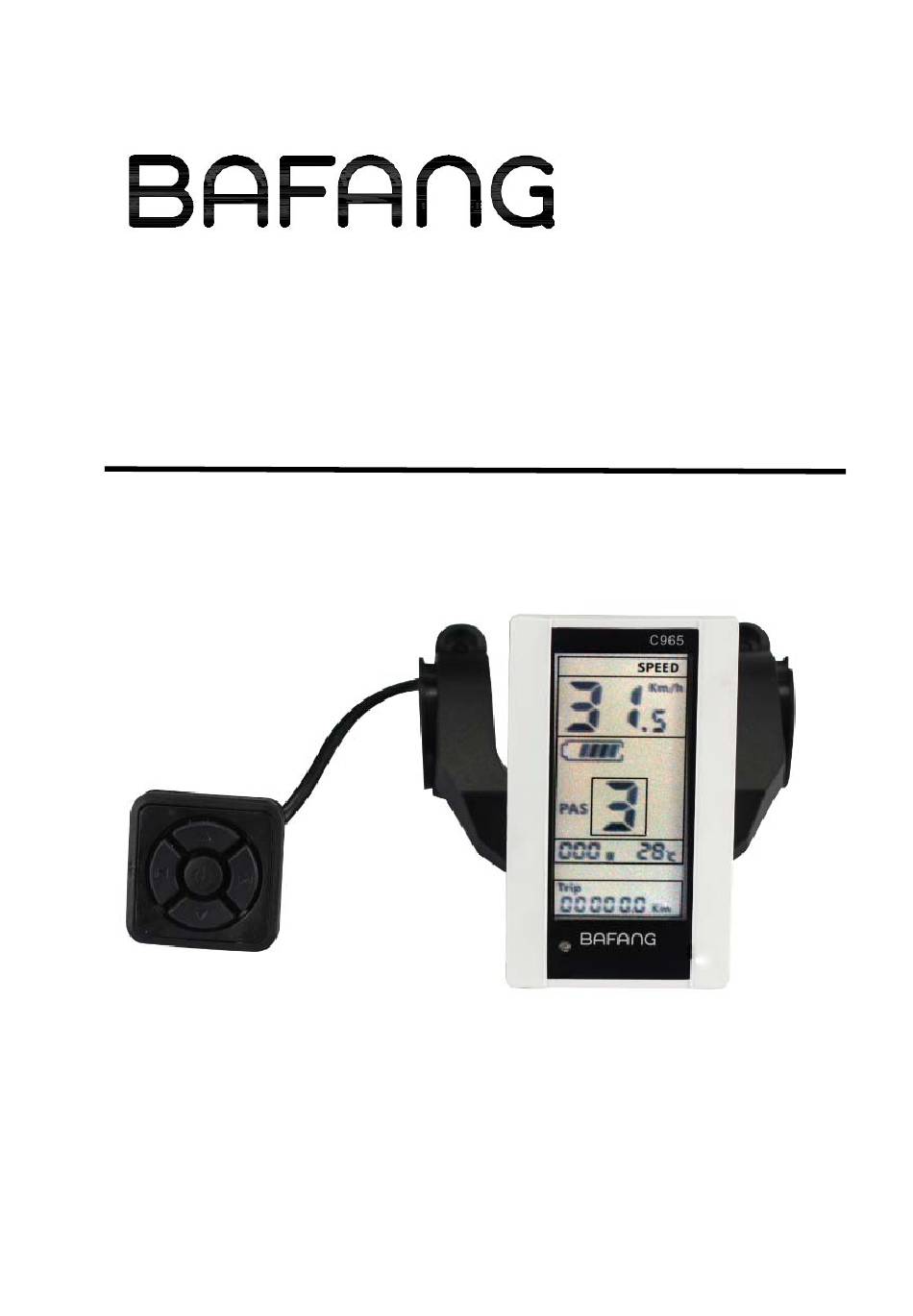

- Page 1 Manual C965...
- Page 2 Functions & feature Functions Speed meter （0~99.9Km/h/MPH） Trip （0~99999.9Km/Mile） （reset from 0） ODO （0~99999.9Km/Mile） （restart from 0） AVG SPEED （0~99.9Km/h/MPH） （reset from 0） MAX SPEED （0~99.9Km/h/MPH） （reset from 0） Time （0~99:59:59） （restart from 0 or reset from 0） Temperature indicate Power indicate PAS level 0~3 6Km walk...
- Page 3 The riding speed SPEED: Average speed, 0~99.9Km/h (MPH) AVG: Maximum speed , 0~99.9Km/h (MPH) MAX: Trip distance（0~99999.9Km/Mile） Trip: Total distance（0~99999.9Km/Mile） ODO: : The riding time Time Battery indicator; it will not fluctuate with the motor on/off. Show when the temperature is below freezing. eadlamps &...
-
Page 4: Operation
Operation: Power On/Off : Press and hold Power button for 2 seconds can turn on/off the Meter. Speed mode switch : Short press LEFT button can change the speed mode, Speed->AVG Speed->MAX Speed. Note: If there is no operation for 5 seconds, the meter will return Speed (Real-Time) display automatically. Mileage mode switch : Short press RIGHT button can change the mileage mode, Trip->ODO->Time. - Page 5 8.2 ℃/℉ : Get into parameter setting state, the location of speed icon display symbol CF, press the UP/DOWN button rotate display the symbol ℃ / ℉. 8.3 Light sensitive : Get into parameter setting state, the location of speed icon display symbol bL0, press UP/DOWN button display symbol 0~5.
-
Page 6: Troubleshooting
Note: The meter will automatically exit the parameter setting state when there is no operation for 10 seconds. 9. Maintain reminded (this function is optional) The meter can remind maintain information，according to mileage（ ODO）and battery cycle times. Meter will display symbol MAINTAIN when the ODO accumulated more than setting mileage (this parameter can be set by dealers), the mileage symbol will flash for 4 seconds when the meter power on, the buzzer beep for 2 seconds at the same time. - Page 7 Operating temperature : -18～60℃ Storage temperature : -30～70℃ Precaution This meter can be used in the rain but should not be started or used under water. Don’t leave the main unit exposed to direct sunlight when not riding the bike. Check the communication of the meter the button periodically.
