5. Main Unit Settings
Click the System Settings button to display the tree. The Unit name and Unit ID of the connected device
are displayed in the tree, for example, as "[10]MFR-5000(MU)".
Clicking the Unit name or the + icon expands the tree, and display the main unit setting pages in the
tree. Clicking the unit name or the - icon again collapses the tree.

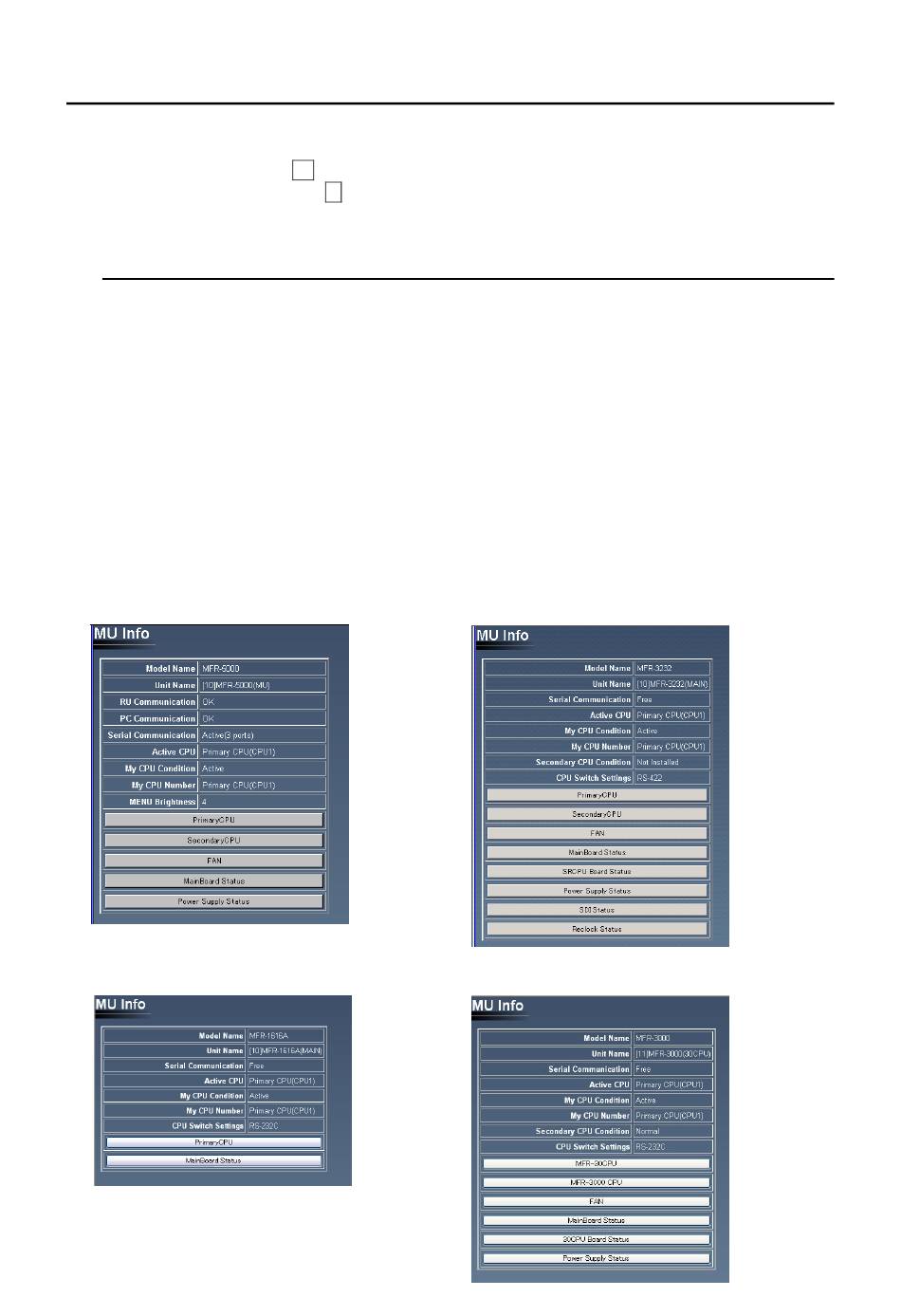

5-1. MU Info
The MU Info page allows you to set the main unit network settings and check the power monitoring
status. Clicking the following buttons will show detailed information. Click the button again to hide
the information.
[PrimaryCPU] ([MFR-30CPU] for MFR-3000)
[SecondaryCPU] (MFR-3000CPU] for MFR-3000)
[FAN]
[MainBoard Status]
[SRCPU Board Status] (MFR-1616/1616R/3216/3216RPS/3232/3232RPS)
[30CPU Board Status] (MFR-3000)
[Power Supply Status]
[SDI Status] (MFR-1616/1616R/3216/3216RPS/3232/3232RPS)
[Reclock Status] (MFR-1616/1616R/3216/3216RPS/3232/3232RPS)
MFR-5000/8000
MFR-1616A
MFR-3232
MFR-3000
