Polaris 2879799 Owner's Manual

Owner's Manual
Polaris Model: 2879799 (5302207)
(60 Gallon Lawn & Garden Utility Sprayer w/ "Boomless" Boom)
Technical Specifications
• 60 Gallon Corrosion-Resistant Polyethylene Tank
• Deluxe Pistol-Grip Handgun w/25 Ft. Hand Gun Hose
• 3-Nozzle Boomless Nozzle Assembly w/30 Ft. Spray
Coverage
• Adjustable Boom Height
• 12 Volt, 3.8 GPM Diaphragm Pump
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your utility
cart sprayer. Please read it carefully, as it furnishes information
which will help you achieve years of trouble-free operation.
Warranty/Parts/Service
For home usage, products are warranted for one year from date
of purchase against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
To obtain prompt, efficient service, call 1-800-831-0027. Always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
- Retain your sales receipt for proof of purchase
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Tools Needed
A ½" wrench and socket, a 9/16" wrench and socket, pliers,
Phillips screw driver and pipe sealant for the gauge.
Parts in Carton
(1) Unit assembly, (1) boom, (2) boom brackets (5277933),
(2) boom mounts (5095332), (1) parts box with parts bag.

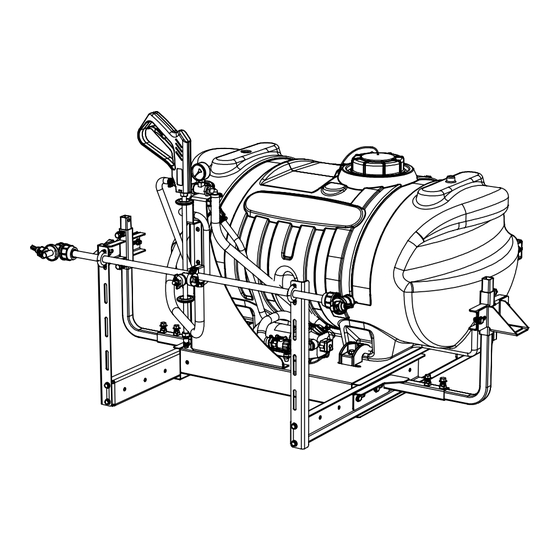

Assembly Instructions
Remove all parts from the box. Open the parts box and parts
bag. Find the two horizontal mounts (5277930 and
5277931). Position the boom brackets and fasten the
horizontal mounts (weld nuts facing up) and boom brackets
(5277933) to the sides of the frame using four 3/8" x ¾"
screws (5034660). Attach the boom mounts (5095332) to
the boom brackets with four 5/16" x ¾" screws (5117323)
and 5/16" nuts (5006307). Mount the boom using the U-bolts
and remaining 5/16" nuts. Position the nozzles on the boom
and attach the boom feeder hose with the hose clamp. Using
four more 3/8" screws, attach the upright tubes (5277927 and
5277928) to the sides of the frame. Start four more 3/8"
screws into the horizontal mounts, position the 90 degree
upright tubes (5100775) and tighten the screws. Start two
3/8" screws into the weld nuts on each of the slide tubes and
slip the slide tubes over the upright tubes. Attach each of the
lock and ride plunger mounts to the four slide tubes using
3/8" screws and nuts. Using the lock and ride plugs
(5102133) and anchor plates (5027426), secure the sprayer
to the ATV. Check that all screws are tightened. Screw the
gauge into the gauge tee on top of the valve mount using a
9/16" wrench. Check that the drain plug cap is screwed on
securely. Plug the lead wire (5274443) into the plug off the
pump and hook to a 12 volt battery source. Note: there is a
switch on the pump and a switch on the lead wire.
[Manual No. 5008377 (09/13)] Printed in the U.S.A.
