Stack-On E-30-MB-E-S Instructions Manual

Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

Enlarged version

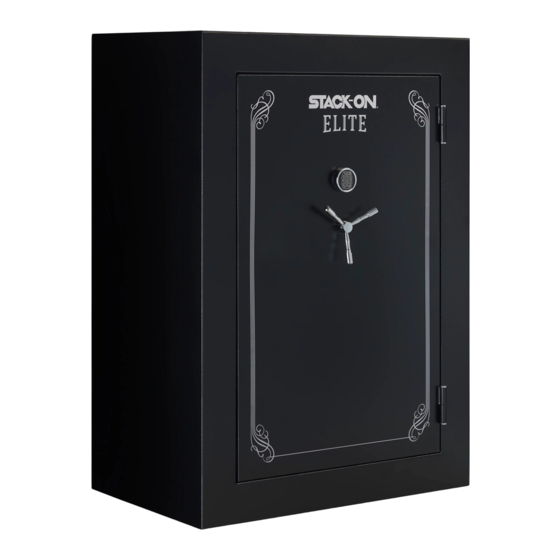

E-30-MB-E-S
E-40-MB-E-S
E-69-MB-E-S
E-90-MB-E-S
E-90-MB-E-S-72
WARNING
A child or adult can tip the safe and be
killed or seriously injured.
Failure to secure the safe as shown in
these instructions can result in death or
serious injury to children and adults.
Children should not play with or around
the safe at any time.
Serial #
Combination #
Hardware Included:
(2) M10x70 Lag screws
(2) washers
(2) plastic anchors
E-30-MB-E-S
(12) Shelf Clips
E-40-MB-E-S
(20) Shelf Clips
E-69-MB-E-S
E-90-MB-E-S
(24) Shelf Clips
E-90-MB-E-S-72
(32) Shelf Clips
®
Instructions
Tip Over Hazard
Tools required:
drill
7/16" drill bit
3/8" drill bit
17mm socket wrench
Phillips screwdriver.
IMPORTANT
•
Record the serial number from the tag on the
back of the safe or from the tag on the front
bottom corner of the safe.
•
Keep keys and combination in a secure place
away from children.
•
Do not store the back up key, your combination
or this document in the safe.
•
Warning: Keep your safe closed and locked at
all times when not in use. Children could
accidentally be locked inside the safe.
•
Do not move this safe using its handle. The
handle should only be used for opening and
closing the door of the safe.
•
Do not store electronic media, computer disks,
audio-visual media or photographic negatives in
this safe. This material will not survive the rated
internal temperature of the safe. This material
may be damaged or destroyed.
HANDLE ASSEMBLY
Screw the 3 handle spokes into the hub and hand
tighten.
ese spokes are located in the front foam
packaging.
NOTE: Do not use this handle to move the safe.
1
16
40660-1608

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-30-MB-E-S and is the answer not in the manual?

Questions and answers

Related Manuals for Stack-On E-30-MB-E-S

Summary of Contents for Stack-On E-30-MB-E-S

  • Page 1 ® • Record the serial number from the tag on the back of the safe or from the tag on the front bottom corner of the safe. E-30-MB-E-S E-40-MB-E-S • Keep keys and combination in a secure place E-69-MB-E-S E-90-MB-E-S away from children.

  • Page 2: Battery Installation

    BATTERY INSTALLATION IMPORTANT: You must rst install the ba ery which is located in the ont protective styrofoam. NOTE: When changing the ba ery, always hold Your safe is delivered with a Safety the ba ery connecting cap while disconnecting or Interlock Screw which must be removed in order for you to lock your a aching the ba ery.

  • Page 3: Electronic Lock

    Customer Service. If you write down your combination you must keep this information in a secure place, away from children, not inside the safe.

  • Page 4: Locking The Safe

    LOCKING THE SAFE SECURING THE SAFE NOTE: e safe must be secured to the oor. To lock the safe, close the door and rotate the Use the hardware provided or consult your handle counter clockwise until it stops. If the hardware retailer for fastening hardware for your handle is not turned until it stops, the locking particular mounting surface.

  • Page 5: Back Up Key

    BACK UP KEY GUN REST INSTALLATION A "Back Up Key" has been provided in case you have Adjustable gun rests are pre-installed with 4 "L" forgo en or lost your security code. To open the brackets using 2 screws for each bracket. To adjust safe using the back up key follow the steps below: the barrel rest height, remove the screws, reposition the barrel rest to your desired height and tighten the...
  • Page 6 Keep this record of your serial number and combination in a secure place separate from your safe. To order a replacement key set, follow the instructions on the attached form. STACK-ON PRODUCTS CO. P.O. BOX 489, WAUCONDA, IL 60084 40660-1608...
  • Page 7 Verification of ownership is required in order to receive replacement key for your security product. In order to receive a replacement key: Complete the following form and send to Stack-On Products. Send a copy of your valid driver’s license along with the form.
  • Page 8 Stack-On may require the safe be returned to the factory for repair. If the safe is so returned, Stack-On will pay the freight to the factory as well as the return freight. If the safe is replaced, Stack-On will pay the freight. This guarantee does not cover labor costs for removal or installation of the safe and its contents.
  • Page 9 • Anote el número de serie en la parte posterior de la caja fuerte o de la etiqueta en la parte inferior delantera esquina de la caja fuerte . E-30-MB-E-S E-40-MB-E-S • Mantenga las llaves y la combinación en un E-69-MB-E-S lugar seguro lejos de los niños.
  • Page 10 INSTALACIÒN DE LA BATERÍA IMPORTANTE: Primero debe instalar la batería que se encuentra en la espuma de poliestireno de protección delantera. Su caja fuerte se entrega con un tornillo de bloqueo de seguridad que NOTA : Al cambiar la batería , sujete siempre la debe ser eliminado para que te batería conectando el casquillo mientras se permite bloquear su caja fuerte.
  • Page 11 De no hacerlo, en stack-on.com bajo Servicio al Cliente . Si usted pondrá en peligro la seguridad y la seguridad escribe su combinación debe mantener esta información de la caja fuerte.
  • Page 12 CIERRE DEL CAJA FUERTE ASEGURAR LA CAJA FUERTE NOTA : La caja fuerte debe jarse al suelo. Utilice el Para bloquear la caja de seguridad , cerrar la puerta hardware proporcionado o consulte a su distribuidor y girar el mango hacia la izquierda hasta que se de hardware para la jación de hardware para su detenga.
  • Page 13 COPIA DE SEGURIDAD DE CLAVE INSTALAR EL RESTO ARMA Restos de armas ajustables están pre-instalado con 4 Un "copia de seguridad de clave " se ha "L" soportes con 2 tornillos para cada soporte. Para proporcionado en caso de que haya olvidado o ajustar la altura del respaldo barril, quitar los perdido su código de seguridad .
  • Page 14 Para pedir un juego de llaves de repuesto, siga las instrucciones en el formulario adjunto. STACK-ON PRODUCTS CO. P.O. BOX 489, WAUCONDA, IL 60084 40660-1608...
  • Page 15 Para poder recibir su llave de reemplazo de su gabinete de seguridad: Llene y envíe esta solicitud a Stack-On Products. Envíe copia de su licencia de conducir junto con la solicitud. Envíe copia del recibo mostrando la fecha original de compra.
  • Page 16 Stack-On. Dependiendo de la magnitud de los daños, Stack-On puede exigir la devolución de la seguridad a la fábrica para su reparación. Si es así que regresó la caja fuerte, Stack-On pagará el flete a la fábrica, así como la carga de vuelta.

This manual is also suitable for:

E-69-mb-e-sE-40-mb-e-sE-90-mb-e-sE-90-mb-e-s-72
