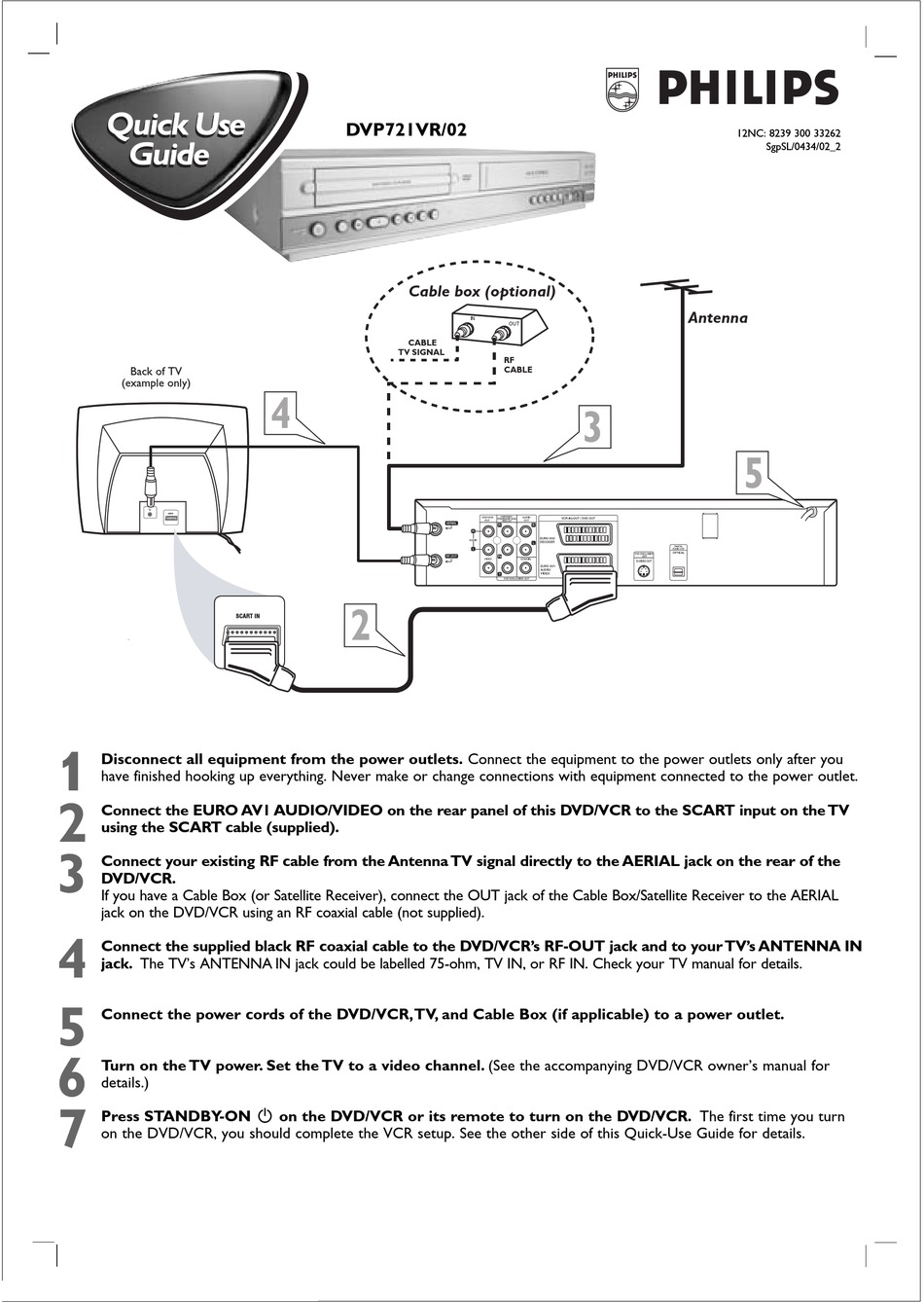

Philips DVP721VR/02 Quick Use Manual

SCART IN
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2
Connect the EURO AV1 AUDIO/VIDEO on the rear panel of this DVD/VCR to the SCART input on the TV
using the SCART cable (supplied).
3
Connect your existing RF cable from the Antenna TV signal directly to the AERIAL jack on the rear of the
DVD/VCR.
If you have a Cable Box (or Satellite Receiver), connect the OUT jack of the Cable Box/Satellite Receiver to the AERIAL
jack on the DVD/VCR using an RF coaxial cable (not supplied).
4
Connect the supplied black RF coaxial cable to the DVD/VCR's RF-OUT jack and to your TV's ANTENNA IN
jack. The TV's ANTENNA IN jack could be labelled 75-ohm, TV IN, or RF IN. Check your TV manual for details.
5
Connect the power cords of the DVD/VCR,TV, and Cable Box (if applicable) to a power outlet.
6
Turn on the TV power. Set the TV to a video channel. (See the accompanying DVD/VCR owner's manual for
details.)
7 Press STANDBY-ON 2 on the DVD/VCR or its remote to turn on the DVD/VCR. The first time you turn
on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-Use Guide for details.
DVP721VR/02
Cable box (optional)
CABLE
TV SIGNAL
4
2
SCART IN
IN
OUT
RF
CABLE
3
12NC: 8239 300 33262
SgpSL/0434/02_2
Antenna
5
