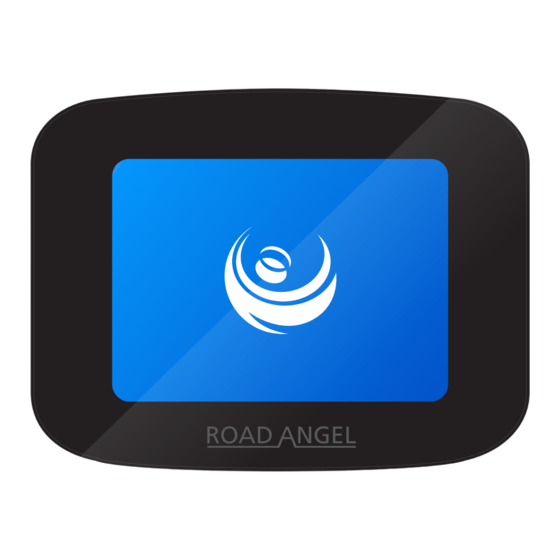

Road Angel PURE User Manual
  1. Manuals
  2. Brands
  3. Road Angel Manuals
  4. GPS
  5. Pure
  6. User manual

Road Angel PURE User Manual

Hide thumbs Also See for PURE:
Table of Contents

Advertisement

Quick Links

See also: User Manual
USER GUIDE
Version V.1.8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURE and is the answer not in the manual?

Questions and answers

Related Manuals for Road Angel PURE

Summary of Contents for Road Angel PURE

  • Page 1 USER GUIDE Version V.1.8...

  • Page 2: Table Of Contents

    Mac – full instructions..........42 1. Update the ROAD ANGEL PURE ...... 42 2. The ROAD ANGEL PURE is updated ....46 3. Now you can configure your ROAD ANGEL PURE with the blue button..........47 Sounds Menu............... 49 Unit Data ..............50 Finally, Remember to SAVE your new settings ....

  • Page 3: Introduction

    With over 250,000 miles of road around the UK, knowing the speed limit is often guesswork, that’s why ROAD ANGEL PURE also has an onboard database of road speed limits. Provided by Here™, the road speed information is presented in a circular road speed sign at...
  • Page 4 INTRODUCTION By using mobile phone technology, ROAD ANGEL PURE also allows you to both share the LIVE locations of mobile safety camera vans. CameraShare™ and is a unique feature to ROAD ANGEL , and empowers you to keep yourself, and other ROAD ANGEL users, safe on the roads.

  • Page 5: Overview

    OVERVIEW The ROAD ANGEL PURE has two buttons, thus simplifying its operation and helping to avoid the temptation to adjust the equipment while driving. All configuration is done by connecting via your smartphone, PC or Mac, making the menus easier to navigate.

  • Page 6: Before You Begin

    A smartphone via a Wi-Fi link with the ROAD ANGEL PURE or can be controlled using a PC by downloading the update software from our website at www.RoadAngelGroup.com...

  • Page 7: Button Functions

    BUTTON FUNCTIONS (Press & Hold) Power On/Off Wifi On/Off Use WIFI to connect via your smartphone or tablet using the ROAD ANGEL App. (available from your app store)

  • Page 8: Power On/Off

    POWER ON/OFF Press & Hold PRESS BUTTON AGAIN TO SHUTDOWN SHUTTING DOWN Live camera share For Mobile Safety Camera Vans, if the user is receiving a Camera Van alert and there is a Camera Van there, pressing either button on the top of the device twice will flag the location as 'Live' to all other 'connected' users.

  • Page 9: Wifi On/Off

    WI-FI ON/OFF Press & Hold WIFI ROADANGEL 25200080 PRESS BUTTON AGAIN TO START WIFI HOTSPOT WIFI ROADANGEL 25200080 STARTING HOTSPOT PLEASE WAIT WIFI ROADANGEL 25200080 HOTSPOT READY...

  • Page 10: Mode Varieties

    POWER BUTTONS – CYCLE THROUGH 5 MODES SCREEN 1 In this mode the compass is offset to the top left. Current speed is shown at the top. When the unit picks up the local speed limit this is shown at the bottom. 14:59 SCREEN 2 This mode has your current speed in the middle.
  • Page 11 POWER BUTTONS – CYCLE THROUGH 5 MODES 14:59 SCREEN 3 This mode is similar to the last, but with bolder characters and numbers for improved visibility. SCREEN 4 This is for users who enjoy a clean and simple display. It removes all icons except the Road Speed Limit, your current speed and the compass.
  • Page 12 POWER BUTTONS – CYCLE THROUGH 5 MODES Serial ID 25903444 Firmware 2.6.0.0591 Last Connect 15/3/2018 Subscription 16/5/2019 Smart Motorway Free Trial Database 4DAF72FB Power 3.9132c IMEI 359207060349535 ICCID 8944303352433722156 SCREEN 5 Is a quick and easy way to have a look at your Device’s Unit Data.

  • Page 13: Speaker Button Cycle Modes

    SPEAKER BUTTON CYCLE MODES By Tapping the Speaker button on the top right of the Pure, this allows you to cycle through each of the Mute Features: This will mute all alert types. NONE This will not mute any alerts.

  • Page 14: Charging The Unit

    CHARGING THE UNIT With the unit switched off, connect the device to the mains charger to charge the internal battery. CHARGING PLEASE WAIT...

  • Page 15: Registration

    REGISTRATION 1. Go to www.roadangelgroup.com 2. Click on the Registration link. 3. Follow the on-screen instructions. As part of this registration process, you will be prompted to purchase subscriptions for the Safety Camera, Blackspot and Road Speed limit updates. 4. If you already have a pre-paid subscription, please call us to activate.

  • Page 16: Tm Pure Display Elements

    DISPLAY ELEMENTS 1. Road Speed 2. Compass 3. Communicate with Server 4. Alert and Proximity Meter 5. Speed Limit 6. Battery 7. GPS Signal 8. SIM Signal Level 9. USB (See Note) 10. Speaker Auto/Mute/Limit The USB symbol will show if your device needs an update of firmware/RSL...
  • Page 17 DISPLAY ELEMENTS Amber means in alert zone but under speed (subject to parameter _10, 0, +5 or +10%) Red means over the speed limit...

  • Page 18: What The Icons Mean

    WHAT THE ICONS MEAN Blackspot Camera Mobile Average Hazard Camera Speed Camera Railway Red Light School Congestion Light Dual zone LI VE Camera Live Van Laser Gun Bus Lane Speed Monitor Cameras Live Mobile Safety Camera Van - A Live Mobile Safety Camera Van will alert the user to the fact that Mobile Speed Enforcement is being or has been used recently at a location.

  • Page 19: Configuring With Smartphone - Full Instructions

    CONFIGURATION WITH SMARTPHONE – FULL 1. Download the ROAD ANGEL App from your smartphone’s App source. (e.g. iTunes or Google Play).
  • Page 20 WIFI ROADANGEL 25200080 PRESS BUTTON AGAIN TO START WIFI HOTSPOT Press and hold the speaker button on the top of the ROAD ANGEL PURE. The unit will then go through the process of going into Wifi mode (See next page).
  • Page 21 CONFIGURATION WITH SMARTPHONE – FULL WIFI ROADANGEL 25200080 STARTING HOTSPOT PLEASE WAIT WIFI ROADANGEL 25200080 HOTSPOT READY 3. The ROAD ANGEL PURE is now ready to connect.
  • Page 22 CONFIGURATION WITH SMARTPHONE – FULL 4. On your Smartphone, go to the Settings menu.
  • Page 23 CONFIGURATION WITH SMARTPHONE – FULL 5. On your Smartphone, select. Wifi and make sure it’s enabled.
  • Page 24 CONFIGURATION WITH SMARTPHONE – FULL 6. Look for the ROAD ANGEL and select it to connect to it.
  • Page 25 CONFIGURATION WITH SMARTPHONE – FULL 7. Once connected it will state that there is no internet connection.
  • Page 26 CONFIGURATION WITH SMARTPHONE – FULL 8. Open the ROAD ANGEL app on your Smartphone or Tablet.
  • Page 27 CONFIGURATION WITH SMARTPHONE – FULL Road Angel 9. This will take you to the Connect Menu of the app.
  • Page 28 CONFIGURATION WITH SMARTPHONE – FULL 10. Once connected to the device you will be taken to the Main Menu of the app.
  • Page 29 Now you can see the initial configuration menu where you can read and customise the ROAD ANGEL PURE settings. Remember to save these changes by updating the device at the end. More on the options changes in the coming pages.
  • Page 30 CONFIGURATION WITH SMARTPHONE – FULL 11. An alert will be sent to your Smartphone once the ROAD ANGEL has been read.
  • Page 31 CONFIGURATION WITH SMARTPHONE – FULL 13. Then run through and amend the available options to your preference.
  • Page 32 CONFIGURATION WITH SMARTPHONE – FULL 14. Finally update the device settings to ensure your changes are saved. The new settings will be written to the device once the ROAD ANGEL PURE'S WiFi is switched off.
  • Page 33 CONFIGURATION WITH SMARTPHONE – FULL A closer look into the 4 options available via the Mobile app. 1. On the Main Menu screen in the ROAD ANGEL app you will see the 4 custom viewing options.

  • Page 34: Audio Options

    CONFIGURATION WITH SMARTPHONE – FULL AUDIO OPTIONS Here you can select the voice type and volume settings, as well as the alert tone associated with each events. You can also listen to the tones by using the ‘play’ option. 2. Audio options.
  • Page 35 CONFIGURATION WITH SMARTPHONE – FULL 3. Run through the audio settings and adjust accordingly to your preferences.

  • Page 36: Alert Options

    CONFIGURATION WITH SMARTPHONE – FULL ALERT OPTIONS 1. Alert options.
  • Page 37 CONFIGURATION WITH SMARTPHONE – FULL 2. Run through the alert options and adjust accordingly to your preferences.

  • Page 38: Display Options

    CONFIGURATION WITH SMARTPHONE – FULL DISPLAY OPTIONS 1. Display options.
  • Page 39 Hardwired Mode: Most users will be usually run the ROAD ANGEL PURE from the supplied cable to their cigarette lighter or any USB port your vehicle may have, but it is, of course, possible to arrange to have the device “hardwired”...
  • Page 40 CONFIGURATION WITH SMARTPHONE – FULL UNIT DATA Displays the following information about your device, including the subscription date. (which would normally show the expiry date). 1. Unit Data...
  • Page 41 CONFIGURATION WITH SMARTPHONE – FULL 2. the ROAD ANGEL PURE'S WiFi is switched off.

  • Page 42: Mac - Full Instructions

    CONFIGURATION FROM MAC OR PC – FULL Download and install the ROAD ANGEL PURE Update Software from our website www.roadangelgroup.com Tech Support page. www.roadangelgroup.com 1. Click on the Tech Support page www.roadangelgroup.com 2. Download and install the software.
  • Page 43 MAC OR PC – FULL 3. Install the software on your PC by running the .exe file and on a mac by opening the zip file and click on the ROAD ANGEL Updater icon. 4. Select your preferred installation location and then click Next or simply click Next if you are happy with the location automatically selected.
  • Page 44 CONFIGURATION FROM MAC OR PC – FULL Don’t forget to have your ROAD ANGEL PURE connected to your computer by the supplied USB cable.
  • Page 45 CONFIGURATION FROM MAC OR PC – FULL 5. Click on the Next button to proceed with the installation. 6. Once the installation has completed, click on Finish.

  • Page 46: Tm Pure Is Updated

    CONFIGURATION FROM MAC OR PC – FULL 7. Activate the software from the quicklaunch taskbar and update the ROAD ANGEL PURE if required. (Usually needed the first time). Note: The ROAD ANGEL PURE is showing as ‘connected’ and needs updating.

  • Page 47: With The Blue Button

    CONFIGURATION FROM MAC OR PC – FULL 9. Once the ROAD ANGEL PURE is up to date, this will be highlighted in the ‘Device Update Status:’ Note: The ‘update’ button is no longer highlighted. 10. Click the blue Configure button to update the settings in the ROAD ANGEL PURE device.
  • Page 48 The options are the same as one can configure from the smartphone app and allow users to customise the ROAD ANGEL PURE to suit their own preferences for Audio, Display & Alerts, as well as show current device information. Remember to SAVE the new settings.

  • Page 49: Sounds Menu

    CONFIGURATION FROM MAC OR PC – FULL SOUND MENU Here you can select a sound and associate it with an alert. In this screen you are also able to amend the volume and listen to the sound before you apply it.

  • Page 50: Unit Data

    CONFIGURATION FROM MAC OR PC – FULL UNIT DATA This shows the information about the ROAD ANGEL PURE. Note that you can see the Subscription expiry date on this screen. Finally, remember to save your new settings.

  • Page 51: Firmware Update

    FIRMWARE UPDATE ROAD ANGEL PURE is specially designed to be a simple-to-use addition to any vehicle, to alert and warn you in advance of known danger areas. In the comprehensive ROAD ANGEL database, which is automatically updated whilst you drive, including Police, Local Authority and...
  • Page 52 Please Note; Road Angel Releases Quarterly Road Speed Library updates and several Firmware updates a year, it is essential for The ROAD ANGEL PURE’s continued...

  • Page 53: Features

    FEATURES • 2.4” clear sunlight readable TFT screen • 240 x 320 pixel resolution • High-Brightness white LED backlight • Wide viewing angle • Auto-dimming based on ambient light • GUI with higher resolution graphics • Wide temperature (-20c to +65c - At +45c charging stops) •...

  • Page 54: Terms & Conditions

    TERMS & CONDITIONS TERMS AND CONDITIONS Please visit this link for full up-to-date information; https://www.roadangelgroup.com/legal-terms https://www.roadangelgroup.com/termsandconditions MORE INFORMATION We cordially invite you to check out our other information online at these links; Instagram – Roadangelgroup Facebook – Roadangelgroup Our website is www.roadangelgroup.com (none other) Contact Telephone No.

  • Page 55: Mot And Safety

    Please remember direct and excessive heat exposure can damage electronics, be mindful of this and remove the ROAD ANGEL PURE while out of use during hot weather. MOT AND SAFETY When your vehicle undergoes a MOT Examination the ROAD ANGEL...

  • Page 56: Disclaimer

    ROAD ANGEL PURE to ensure its desired performance. Spare accessories are available and can be purchased directly from ROAD ANGEL. Use of 3rd party or non-genuine accessories may cause performance issues; unfortunately we are unable to cover this in our warranty.

  • Page 57: Faq's

    FAQ’S Q. How long will it take for my ROAD ANGEL PURE to be ready to use? A. The very first time you turn on your new ROAD ANGEL PURE it will take approximately 15 minutes to get a lock on to GPS and our servers, but don’t worry, it will only take this long the very first time.
  • Page 58 FAQ’S Q. How do I mount my ROAD ANGEL PURE into my car? A. Your ROAD ANGEL PURE comes with a Wireless Charging Dash Mount, and the bottom of the mount contains an adhesive pad. Peel back the film on the pad and affix to a suitable place on your dashboard.
  • Page 59 A. Please call us directly 0330 320 3030 to organise a mobile installer who will come to you! Q. How do I purchase a subscription to go with my ROAD ANGEL PURE? A. To purchase a subscription, please call our offices on 0330 320 3030 where one of our Angels will be happy to help.
  • Page 60 Alternatively you can view this information on your ROAD ANGEL PURE, Screen 5. To do this press the power button and cycle through the screens until you see the one shown below.
  • Page 61 FAQ’S Q. How long will the battery last? A. The ROAD ANGEL PURE battery will last an average of 4/5 hours. Q. How long should I charge the unit? A. Charge the unit for the first time for at least 8 hours...
