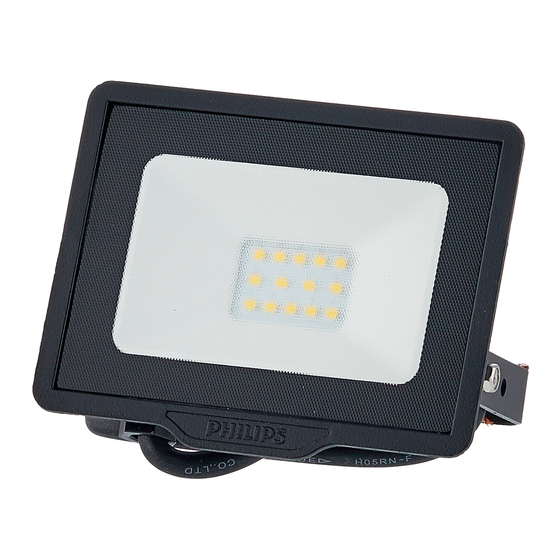

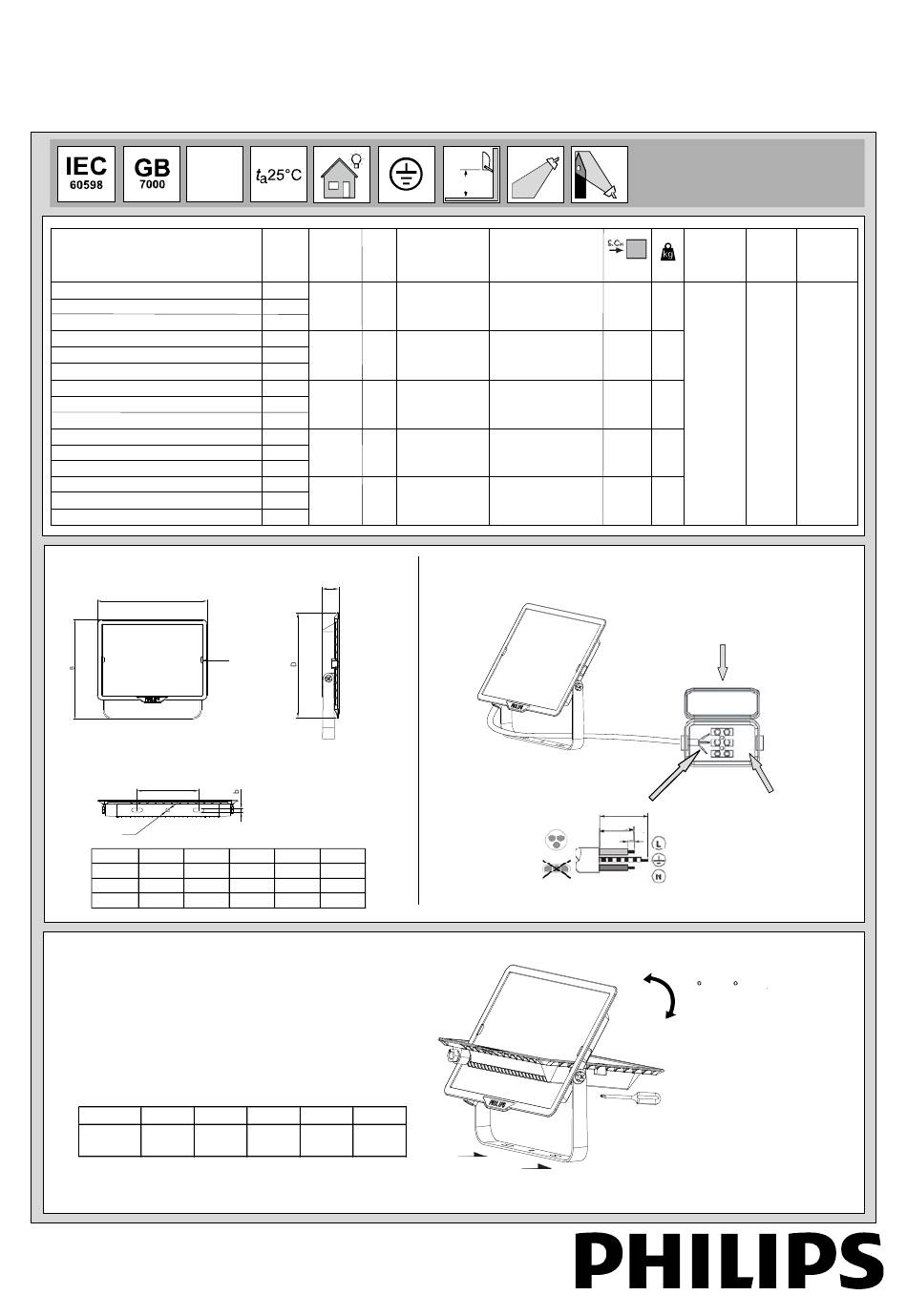

Philips BVP150 Mounting Instructions

LED Floodlight / LED 投光灯
BVP150
Mounting Instructions / 安装说明书
IP65
Product Type
/产品型号
BVP150 LED8/WW 220-240V 10W SWB CQC
BVP150 LED8/NW 220-240V 10W SWB CQC
BVP150 LED8/CW 220-240V 10W SWB CQC
BVP150 LED17/WW 220-240V 20W SWB CQC
BVP150 LED17/NW 220-240V 20W SWB CQC
BVP150 LED17/CW 220-240V 20W SWB CQC
BVP150 LED25/WW 220-240V 30W SWB CQC
BVP150 LED25/NW 220-240V 30W SWB CQC
BVP150 LED25/CW 220-240V 30W SWB CQC
BVP150 LED42/WW 220-240V 50W SWB CQC
BVP150 LED42/NW 220-240V 50W SWB CQC
BVP150 LED42/CW 220-240V 50W SWB CQC
BVP150 LED59/WW 220-240V 70W SWB CQC
BVP150 LED59/NW 220-240V 70W SWB CQC
BVP150 LED59/CW 220-240V 70W SWB CQC
A
a
c
Type 10W 20W
a (mm) 68 70
b (mm) 4.4 4.4
c (mm) Ø4.4 Ø4.4
10W 20W
Torque(Nm)
1.8
扭矩 (Nm)
Signify Luminaires (Shanghai) Co., Ltd.
Address: 2F, Building 6, No. 1805, Huyi Highway, Malu Town, Jiading District, Shanghai, P.R. China
Postal code: 201801
昕诺飞灯具（上海）有限公司
地址：上海市嘉定区马陆镇沪宜公路1805号6幢二层
邮编：201801
CCT (K)
Power(W)
LEDs
/色温
/功率
3000
4000
10
14
6500
3000
4000
20
28
6500
3000
4000
30
42
6500
3000
4000
50
70
6500
3000
4000
70
98
6500
C
10W/20W/30W without buckle
50W/70W with buckle
30W 50W 70W
100 97 137
5.5 6.5 8.5
Ø5.5 Ø6.5 Ø8.5
Fasten the bolt
/锁紧两侧紧固螺钉
Torque : Nm
扭矩：Nm
30W 50W 70W
1.8 8 8 8
0m<X<5m 0.0m
Lumen Output (lm)
Dimension(mm) / 尺寸
/流明输出 (lm) AxBxCxD(mm)
850 115x116.5x28x92
1700 140x132.5x28x110
2550 170x167.5x28x130
4250 200x181x33.2x145
5950 245x220x35.5x185
H05RN-F 3x1.0 mm²
60245IEC57
N: Blue/蓝色
L : Brown/棕色
GND:Yellow-Green/黄色-绿色
Voltage Frequency
/电压 /频率
(m² )
0.011
0.24
0.015
0.32
0.022
0.50 50/60Hz
220-240V
~
0.029
0.71
0.045
1.13
IP65 Junction Box IP65
/ 接线盒
* not supplied with product
/ 此灯具不提供接线盒
The terminal block should be complying
50
with EN60998-2-1/EN60998-2-2
36
/接线端子符合标准：
10
EN60998-2-1/EN60998-2-2
0º~160º
Install the luminaire according to the national regulation
and make sure it will not fall off.
按照国家标准安装固定好灯具，确保其不会掉落。
V1.1
Surge rating
/浪涌
1KV/2KV
