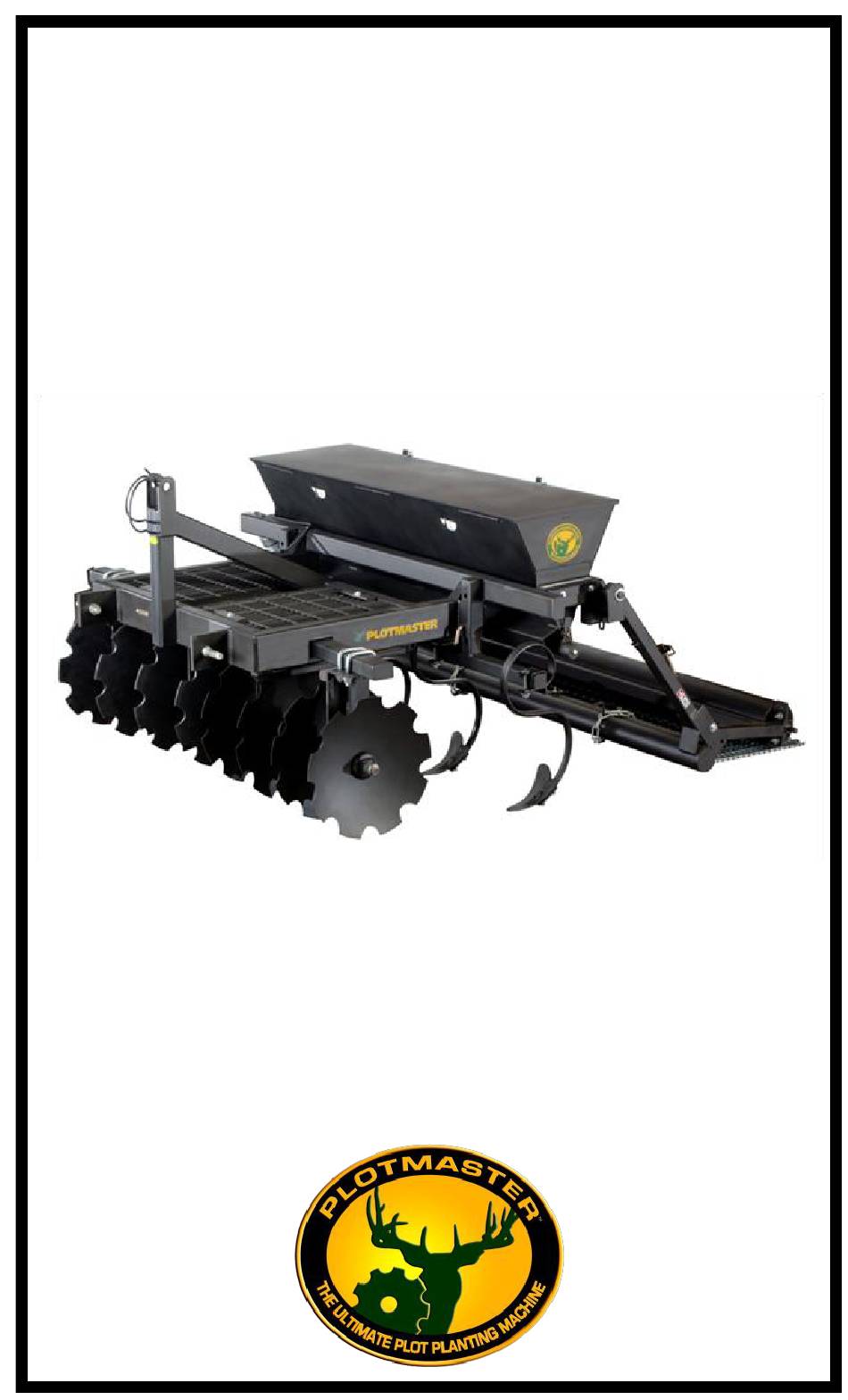

- Page 1 The Plotmaster 600™ Users Manual Safety Instructions & Planting Tips Plotmaster Systems, Llc. 478-864-9108 or 1-888-629-4263 www.theplotmaster.com...
- Page 2 Plotmaster 600™ ! The information in this booklet is designed to Provide you with a better understanding of Your Plotmaster 600™, as well as to provide You with safety instructions and tips for planting your food plots. If at anytime you have questions about your unit, Please call us at 478-864-9108 We’ll be glad to answer any questions that may arise!
-
Page 3: Read First
PLOTMASTER 600™ at anytime. DO NOT Keep your feet and hands clear of the PLOTMASTER 600™ when raising or lowering the unit and when Raising snd/or lowering the cultipacker and drag. DO NOT put hands in Seeder attachment while in use or while seeder motor is on. - Page 4 Hard soil or heavy vegetation cover may require several passes with PLOTMASTER 600™ to achieve best results. Best results will be achieved when using the chisel plow on hard or grassy soils in lieu of the sweep plow or cultivator points.
- Page 5 Details About Your Plotmaster 600™... A. The PLOTMASTER 600™ consists of a sturdy MAIN FRAME with various components and attachments that may be added or removed. Each PLOTMASTER 600™ is equipped for use with a 3-point hitch only. This model uses the 3-point hitch draft to set depth of tillage and cultivation.
- Page 6 1. Five (5) narrow, reversible CHISEL POINTS for hard, rough soils. 2. Five (5) medium-sized CULTIVATOR POINTS for cultivating prepared soils 3. Five (5) 9-inch SWEEP PLOW POINTS for plowing cultivated soils with little or no vegetation. (HINT: If plow points load up with vegetation, discing and plowing are reduced.
- Page 7 For proper seed gate adjustment, loosen the nut on the end of the seed gate handle. Put the seed gate handle in the “0” position, making certain the seed gate is fully closed. Retighten. (NOTE: DO NOT put more than 150 lbs. of seed in the seeder at one time.
- Page 8 F. Each unit comes with a DRAG and CULTIPACKER. The DRAG and CULTIPACKER can be used independently or in combination. The DRAG is used to level soil and to cover larger seed such as wheat, rye, Lab Lab, beans, peas and oats.
- Page 9 The CULTIPACKER and DRAG can be used in combination by removing the hitch pins with handles as shown below and allowing the cultipacker to follow the drag. See illustration below. The CULTIPACKER can be used only by using the hitch pins with handles that maintain the cultipacker In the stowed position to pin the cultipacker hinge point in a straight position as shown below.
- Page 10 IMPORTANT MAINTENANCE: Grease the fittings on the cultipacker and tighten all nuts and bolts every 6 hours of operation Plotmaster Systems, Llc. Provides a one-year warranty against any manufacturer’s defects. Please be sure to fill out and return your warranty card.
- Page 11 More Helpful hints For Using Your Plotmaster™… Soil Preparation Once the location of your foodplot is determined, you are ready to begin preparing the soil for planting. You should always burn, mow and spray with herbicide, or use other techniques to remove unwanted grasses and vegetation prior to discing or plowing the soil.
- Page 12 Planting Once the ground has been prepared for planting, the PLOTMASTER™ unit is designed to make planting a “one- pass” operation. The unit should be level. This will make all parts work together and plant properly. The disc should be in the second setting.
- Page 13 3-pt. hitch. Adjust the seed flow control lever to the proper setting and turn on seeder motor. You are now ready to begin planting! Congratulations and have fun! PLOTMASTER™ inventor, Blaine Burley, with HUGE 14-point buck harvested in small plot.
- Page 14 SAFETY and PRPOER USE of the PLOTMASTER™ should ensure many years of quality service. We know that the PLOTMASTER™ will be used in a variety of ways. We would like to hear your innovative ideas and how well it has performed for you.
- Page 15 Only $14.95 + Shipping and Handling Mastercard, Visa, American Express and Discover Accepted Orders may be placed by calling Plotmaster Systems, Llc. at 1-478-864-9108 or by sending a check or money order to: Plotmaster Systems, Llc. P O Box 111...
