- Page 1 Assembly Instructions & User’s Manual Single Sack Crawfish Boiler FSOGBG4300 Please keep this instruction manual for future reference Customer Service: (888) 922-2336 7:00 am to 12:00 am Central Standard Time (daily) Live Chat at: www.academy.com Email: customerservice@academy.com (Made in China)
-
Page 2: Table Of Contents
Table of Contents Warnings…………………………………………………………………………...2-8 Tools and Parts…………………………………………………………………..9-10 Exploded View……………………………………………………………………...11 Hardware……………………………………………………………………………12 Assembly Instructions……………………………………………………….…13-16 Operating/Cooking Instructions....……………………………………..…17 Care and Maintenance…………………………………………………………..18 Frequently asked questions………………………………………………………19 Warranty Information………………………………………...…………....19 Note: Before beginning assembly of product, make sure all parts are present. Compare parts with package content list and hardware contents. If any part is missing or damaged do not attempt to assemble the unit. -
Page 3: Warnings
WARNINGS THIS APPLIANCE IS NOT FOR FRYING TURKEYS. DO NOT USE WITH OIL. THIS COOKER IS FOR OUTDOOR USE ONLY SAFETY SYMBOLS: When using this appliance, basic safety precautions should always be observed. Read and understand the meaning of these symbols before assembling and using this appliance. - Page 4 If you continue to smell gas, immediately contact the fire department (e.g. 911) and do not go near the appliance. Model No. FSOGBG4300 Main Max. Input Rating: 135,000 BTU/H Equipped for use on: Propane Certified under ANSI 21.89 - CSA 1.18 -2013...
- Page 5 WARNINGS appliance until the cooking liquid has cooled to less than 115˚F (46˚C). DO NOT move the appliance when in use. Allow the cooking vessel to cool to 115˚F (46˚C) before moving or storing. Use insulated oven mitts or gloves to protect from hot surfaces or splatter from cooking liquids. Closed toed shoes should always be worn during operation of this appliance.
- Page 6 WARNINGS • NEVER attempt to attach this appliance to the self-contained LP gas system of a camper, trailer or motor home. The pressure regulator and hose assembly supplied with the appliance MUST BE THE ONE USED. Replacement pressure regulator and hose assemblies must be those supplied by the manufacturer.
- Page 7 WARNINGS: LP tank DANGER Indicates a hazardous situation, which if not avoided, will result in death or serious injury. • The safety release valve on the LP tank could activate the leaking of gas and cause a severe fire and increase the risk of serious injury or death. If the steps below are not followed exactly, a fire causing personal injury or death can occur.
- Page 8 WARNINGS: LP tank CONNECTING REGULATOR TO LP TANK: •Place LP tank on a secure, level and stable surface. •Turn control knob to the “OFF” position. •Turn LP tank OFF by turning hand wheel clockwise to a full stop. •Remove the protective cap from the LP tank valve. HINT: Always use cap and strap supplied with valve.
- Page 9 WARNINGS: LP tank REGULATOR HOSE ASSEMBLY CHECK: WARNING Before each use, check to see if there is evidence of abrasion, wear, cuts or leaks on the hose. If damage is evident, the hose must be replaced prior to appliance use. DISCONNECTING REGULATOR FROM THE LP TANK: •Turn control knob to the OFF position.
-
Page 10: Tools And Parts
Tools Required Adjustable wrench (not included) Screw driver (not included) Hex wrench Page 9 of 19... - Page 11 Parts List paddle side handle wheel axle ① ② ③ wheel 2pcs Basket handles lid handles 2pcs ④ ⑤ ⑥ 2pcs body 1pc ⑦ back handle 1pc ⑧ Page 10 of 19...
-
Page 12: Exploded View
Exploded View Page 11 of 19... -
Page 13: Hardware
Hardware (B) Spacer 2pcs (C) Bolt M6 X 15 4pcs (D) Acorn nut M6 4pcs (E) Cotter pins 2pcs (F) Hex Nuts 2pcs Page 12 of 19... -
Page 14: Assembly Instructions
Assembly Instructions Step 1: Slide wheel axle(#3)- 1pc through body as shown on image.Slide the spacer (B)-1pc prior to installing wheel.Secure wheel by inserting cotter pin (E)- 1pc on axle. Repeat step on the other position slide wheel. Step 2: Insert the back handle (#8)-1pc to the body (#7). - Page 15 Assembly Instructions Step 3: Install the lid handle (#6)-1pc to the lid using bolt (C)-2 pcs and acorn nut (D)-2 pcs. Repeat step for other handle. Step 4: Install the basket handles (# 5) -1 pc to the basket using hex nut (F) -1 pc and Hex Wrench (A).
- Page 16 Assembly Instructions Step 5: Open lid, lift basket,insert side handle (#2)-1 pc into side holes. Step 6: Slide the stainless steel paddle (#1)-1 pc into the bottom slot for storage. Page 15 of 19...
- Page 17 Fully Assembled Page 16 of 19...
-
Page 18: Operating/Cooking Instructions
Operating / Cooking Instructions WARNING When using the Crawfish Cooker please keep in mind that it is important to never fill the Cooker over the marked “Max Fill” line. Doing so could result in the unit becoming top heavy and creating an unsafe condition. -
Page 19: Care And Maintenance
Care and Maintenance CAUTION Allow unit to fully cool (115˚F or 46˚C) before performing any cleaning. Proper care and appliance maintenance will keep your product operating smoothly. CLEAN THOROUGHLY AFTER EVERY USE. SUGGESTED CLEANING MATERIALS: •Warm water •Mild dishwashing liquid detergent •Soft, nylon cleaning pad HOW TO CLEAN: •... -
Page 20: Frequently Asked Questions
Frequently Asked Questions and Answers Q: What is the problem if the boiler takes too long or will not heat water？My cookers' flame appearance is very weak. A: If the hose assembly has Type1 Connection(black/green knob),it is equipped with a flow limiting device.
Need help?
Do you have a question about the FSOGBG4300 and is the answer not in the manual?
Questions and answers
How do you use the lighting rod and what does it do
Looking to get replacement burners
Replacement parts
The available replacement parts for the Outdoor Gourmet FSOGBG4300 are:
1. Paddle - 1 piece
2. Side handle - 1 piece
3. Wheel axle - 1 piece
4. Wheel - 2 pieces
5. Basket handles - 2 pieces
6. Lid handles - 2 pieces
7. Body - 1 piece
8. Back handle - 1 piece
Hardware components include:
- Spacer - 2 pieces
- Bolt M6 x 15 - 4 pieces
- Acorn nut M6 - 4 pieces
- Cotter pins - 2 pieces
- Hex nuts - 2 pieces
This answer is automatically generated

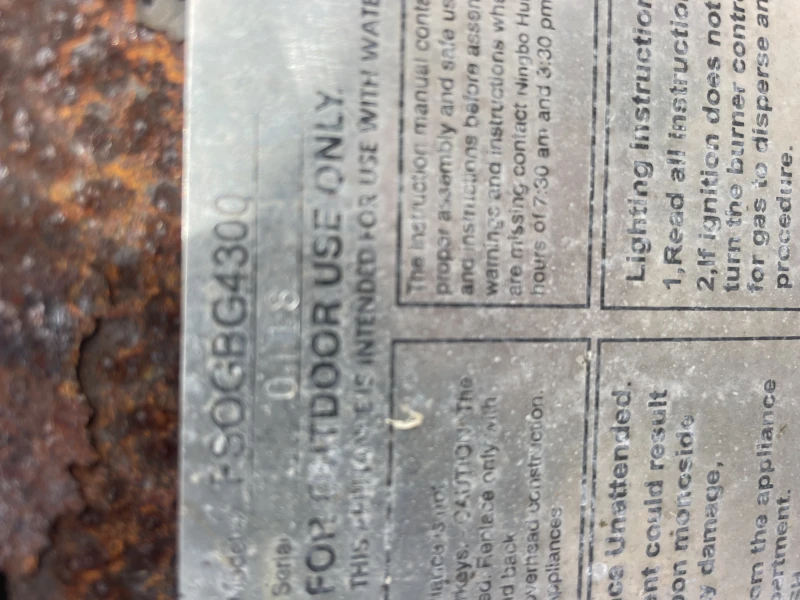

can you buy the single sack **** basket and lid. Putting on the base i burned two holes in mine
