- Page 1 MF927U Quick Start Guide ZTE CORPORATION NO. 55, Hi-tech Road South, Shenzhen, P.R.China Postcode: 518057...
-
Page 2: Getting To Know Your Device
Getting to Know Your Device Appearance The following figure is for your reference only. - Page 3 1. micro-SIM card tray 2. Charging/micro-USB jack 3. WPS key Press and hold for 2 seconds to activate the WPS function. 4. Power key Press and hold for about 2 seconds to power on/off your device. Press and hold for about 10 seconds to power off your device, if it is in abnormal status.
-
Page 4: Indicator Lights
Getting to Know Your Device Indicator lights Indicator Status Description Red solid / The battery is low. Please blinking charge the battery. Green The battery is being charged. Battery blinking Green solid The battery level is middle or high. Light off Your device is powered off and not being charged. - Page 5 The device is in error status. Network l The device is not registered to the mobile network. l There is no micro-SIM card inserted. l There is no network service available. Green solid The device is registered to the 2G/3G mobile network. Green The device is connected to blinking...
-
Page 6: Connection Scenarios
Getting to Know Your Device Connection Scenarios The device uses your micro-SIM card to access the Internet. It allows multiple clients to surf on the Internet at the same time. The following figure is for your reference only. -
Page 7: Installing The Micro-Sim Card
Installing the micro-SIM Card 1. Insert the tip of the tray eject tool into the hole. 2. Pull out the card tray and place the micro-SIM card on the tray, as shown. Carefully slide the tray back into place. -
Page 8: Connecting To Your Device
Connecting to Your Device Using Wi-Fi 1. Power on your device. 2. Ensure that your computer or other client devices have enabled Wi-Fi, and search for available wireless networks. NOTE: Refer to your Wi-Fi-enabled client device manual for further details on how to search for wireless networks. If you use a computer, you need to set your computer to obtain an IP address automatically. - Page 9 NOTE: If the system does not automatically launch installation, you can double-click the device installation icon in My Computer > ZTEMODEM to install the software. 3. Wait until the computer is connected to your device successfully.
- Page 10 Getting to Know the Wi-Fi SSID and Password You can view the label on the device to get the default Wi-Fi SSID and password.
- Page 11 Logging in to the 4G Mobile Hotspot Configuration Page 1. Ensure that the connection between your device and the client device is correct. 2. Launch the Internet browser and enter http://192.168.0.1 or http://ufi.ztedevice.com in the address bar. 3. Enter the password to log in to the 4G Mobile Hotspot configuration page.
-
Page 12: Changing The Password
Changing Wi-Fi SSID Password 1. Log in to the 4G Mobile Hotspot configuration page. 2. Select Wi-Fi Settings. 3. Change the Network Name (SSID) or the Password in the Main SSID area. 4. Click Apply. -
Page 13: Accessing The Internet
Accessing the Internet After a client device is successfully connected to your device, you can access the Internet in Automatic or Manual mode. The default mode is Automatic. Mode Operation Automatic Your device is automatically connected to the Internet, and you can surf on the Internet through the client. -
Page 14: Configuring Your Pc
Configuring Your PC The following describes how to configure the Internet Protocol in Windows for your Wi-Fi connection. 1. Right-click Network and select Properties. 2. Select Change adapter settings. 3. Right-click Wireless Network Connection and select Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4), and click Properties. -
Page 15: Warning And Notice
Warning and Notice To the User • If inadequately shielded, some electronic devices, for example, the electronic system of vehicles, may be affected by the electromagnetic interference caused by the device. Consult the manufacturers of such devices before using the device if necessary. - Page 16 • When the device is operating, do not touch the metallic parts. Failing to do so may cause burns. • Use original accessories or accessories that are authorized. Using any unauthorized accessories may affect the performance of the device and violate the related national regulations about telecom terminals.
-
Page 17: Battery Safety
• If the battery damages or shows signs of swelling or leakage, please stop use immediately and contact ZTE or ZTE authorized service provider for replacement. -
Page 18: Limited Warranty
Limitation of Liability ZTE shall not be liable for any loss of profits or indirect, special,... - Page 19 ZTE had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.
-
Page 20: Legal Information
ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. -
Page 21: Troubleshooting
Troubleshooting Problem Recommended Action Install the software manually. Please connection run the installation program in the between your path Computer > device and a ZTEMODEM. PC through a If the driver of your device is cable abnormal, reinstall the software. You cannot need to uninstall the software first. - Page 22 Troubleshooting Problem Recommended Action client Ensure that your micro-SIM card is connected to available. device Change the location and find a place cannot access with good signal. the Internet. Check the settings of the WAN connection mode. Contact your service provider and confirm your APN settings.
-
Page 23: Getting More Help
Getting More Help You can get help by: • Sending an email to mobile@zte.com.cn • Visiting www.ztedevices.com... -
Page 24: Specific Absorption Rate (Sar)
Specific Absorption Rate (SAR) Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. -
Page 25: Specification
This radio equipment operates with the following frequency bands and maximum radio-frequency power. NOTE: All ZTE products are compliant with these power limits required by the European Union. Frequency bands supported by the product vary by model. GSM 900: 32.5 dBm GSM 1800: 29.5 dBm... - Page 26 CE Caution Battery Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. USB Port This product shall only be connected to a USB interface of version USB 2.0. Proper Use As described in this guide, your device can be used only in right location.
- Page 27 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. For this product’s recycling information based on WEEE directive, please send an e-mail to weee@zte.com.cn...
- Page 28 EU DECLARATION OF CONFORMITY Hereby, ZTE Corporation declares that the radio equipment type MF927U is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: http://certification.ztedevices.com...
Need help?
Do you have a question about the MF927U and is the answer not in the manual?
Questions and answers
I loose my router steaker i don't know password please help
To reset the password for the ZTE MF927U router, perform a factory reset using one of these methods:
Method 1 (Using a Pin):
1. Turn ON the ZTE MF927U router.
2. Use a pin to press and hold the RESET button.
3. The router will restart automatically and reset to factory settings.
Method 2 (Without a Pin):
1. Turn ON the ZTE MF927U router.
2. Press and hold the WPS and Power buttons simultaneously.
3. The router will restart automatically and reset to factory settings.
After the reset, you can log in using the default username and password.
This answer is automatically generated
Does any LTE mtn Sim card work with this modem, is it compatible? I'm struggling to connect.
Yes, the ZTE MF927U modem is compatible with any LTE MTN SIM card as it supports all Nigerian 4G networks and has been unlocked to work with any SIM card.
This answer is automatically generated
is there an app/zte solution to reach remotely a zte mf927u device knowing the sim phone number?

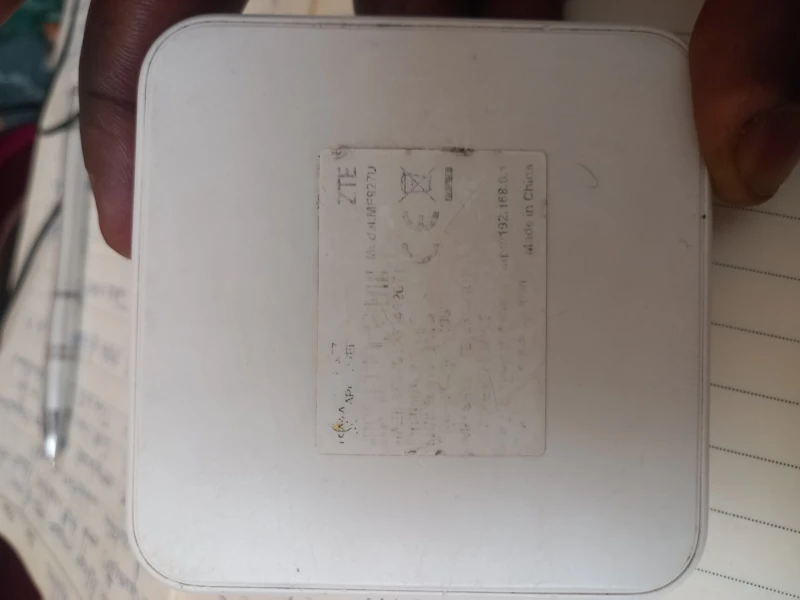

My default password is erased from the back of my mifi and I can’t login even after resetting
