Rack Mounting Kit
PowerValue 11 RT 1-3 kVA
User Manual
Introduction
This Rack Mounting Kit is used to install ABB PowerValue 11 RT units into 19 inches racks. This product
is compatible with ABB PowerValue 11 RT 1kVA, 2kVA and 3kVA.
Unpacking
This Racking Kit for PowerValue 11 RT 1-3kVA includes:
- 1 x 'L' metal slide
- 1 x 'R' metal slide
- 10 x M6 round screw
- 10 x M6 clip nut
- 2 x 90º metal support ("ears")
- 8 x M4 flat screws (black)
- 6 x M4 round screws
- 1 x User manual
Installation

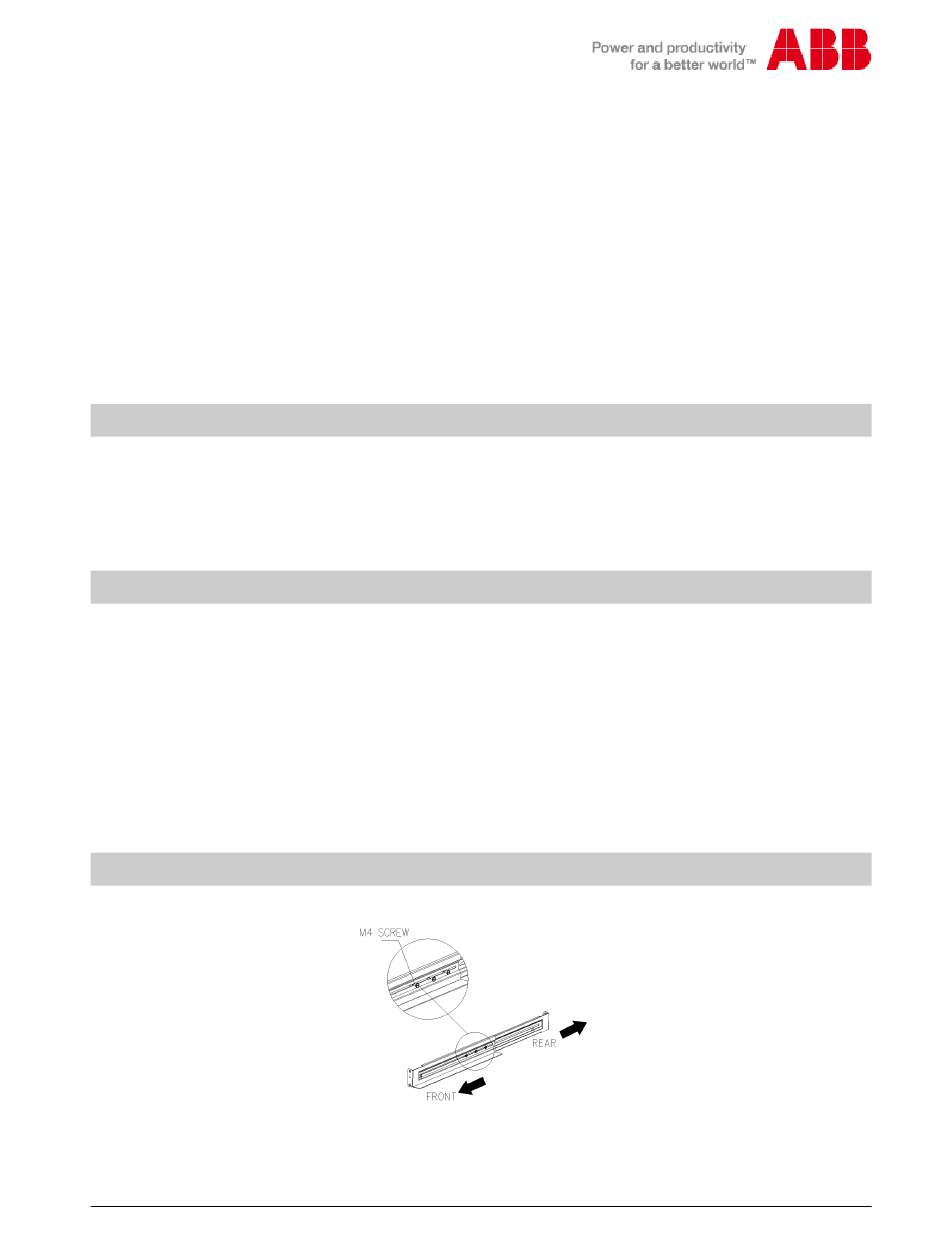

1) Fix the rails with M4 round screws and adjust the distances to the rack size.
04-3847_ABB_OPM_RackMountingKit_ PVA11 RT1-3kVA_EN_131129
Page 1/2 ABB
Modifications reserved
