USER GUIDE
SCB-100A
100-Pin Shielded Screw Terminal DAQ Accessory
The NI SCB-100A is a shielded I/O connector block with 100 screw terminals for easy signal
connection to National Instruments Digital I/O products (PCI-DIO-96, NI 6508, NI 6509,
NI 6511, NI 6512, NI 6513, NI 6514, NI 6515, NI 6528, and NI 6529), Counter/Timer
products (NI 6624), or other products with a 100-pin 0.050 series shielded D-type I/O
connector. This document describes how to connect and use the SCB-100A with 100-pin data
acquisition (DAQ) products, and lists specifications.
5

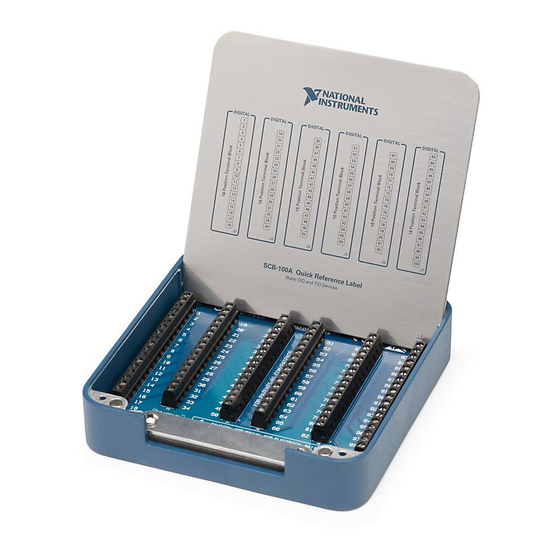

1. Top Cover (Required)
2. Quick Reference Label
3. Enclosure Base
Caution
avoid injury, data loss, or a system crash. When this symbol is marked on a product,
refer to the
Figure 1. SCB-100A Parts Locator Diagram
6
5
This icon denotes a caution, which advises you of precautions to take to
Safety Guidelines
section for information about precautions to take.
4. SCB-100A Board Assembly
5. Strain-Relief Screw
6. Strain-Relief Bar
1
2
3
4
Advertisement
Table of Contents
Related Manuals for National Instruments SCB-100A
Summary of Contents for National Instruments SCB-100A
- Page 1 SCB-100A 100-Pin Shielded Screw Terminal DAQ Accessory The NI SCB-100A is a shielded I/O connector block with 100 screw terminals for easy signal connection to National Instruments Digital I/O products (PCI-DIO-96, NI 6508, NI 6509, NI 6511, NI 6512, NI 6513, NI 6514, NI 6515, NI 6528, and NI 6529), Counter/Timer products (NI 6624), or other products with a 100-pin 0.050 series shielded D-type I/O...
-
Page 2: Safety Guidelines
Caution Install cover prior to use. To avoid electrical shock, do not remove SCB-100A covers unless you are qualified to do so. Before removing the cover, disconnect any live circuit from the connector block. Replace cover for use. Caution... -
Page 3: What You Need To Get Started
What You Need to Get Started To set up and use your SCB-100A, you need the items shown in the following figure. You can find quick reference labels, which specify accessory pinout information for many compatible products, by going to ni.com/info... - Page 4 Do not use the chassis ground lug as a safety earth ground. To get started with the SCB-100A, complete the following steps while referring to the previous figures. If you have not already installed your DAQ device or module, refer to the...
- Page 5 Remove all cables from the SCB-100A before getting started. (Optional) Mount the SCB-100A to a panel or DIN rail, as described in the Mounting the SCB-100A section. Remove the cover.
-
Page 6: Panel Mounting
SCB-100A before you power off your computer. Mounting the SCB-100A You can use the SCB-100A on a desktop, or mount it to a panel or a standard DIN rail. For two-dimensional drawings and three-dimensional models of the SCB-100A, visit ni.com/... - Page 7 3. DIN Rail Securing the Cover on the SCB-100A In most cases, attaching the cover with the integrated magnets is sufficient. To permanently secure the cover to the SCB-100A base, you will need two M3 × 6 (#4-40 × 5/16") ® ®...
-
Page 8: Specifications
Removing the SCB-100A PCB from the Base Complete the following steps to remove the SCB-100A from the base. Disconnect the cable from the SCB-100A, if connected, and remove the top cover. Loosen the strain-relief screws, shown in Figure 1, with a #2 Phillips screwdriver. -
Page 9: Power Requirements
Terminals 49-50, 99-100 Caution Maximum current allowed at screw terminals may be less than specified depending on the DAQ device or module connected to the SCB-100A. Refer to the device specifications for maximum ratings of your device or module. Physical Characteristics Dimensions (including feet) 14.7 cm ×... -
Page 10: Electromagnetic Compatibility
Group 1 equipment (per CISPR 11) is any industrial, scientific, or medical equipment that does not intentionally generate radio frequency energy for the treatment of material or inspection/analysis purposes. Note For EMC declarations and certifications, and additional information, refer to Online Product Certification section. 10 | ni.com | SCB-100A User Guide... -
Page 11: Environmental Management
/CVI , Measurement Studio, Visual Basic, and ANSI C examples at ni.com/info (enter the Info Code daqmxexp • Measurement & Automation Explorer Help • NI-DAQmx Help • NI KnowledgeBase at ni.com/kb SCB-100A User Guide | © National Instruments | 11... -
Page 12: Worldwide Support And Services
CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2016 National Instruments. All rights reserved. 371804A-01 Dec16...
