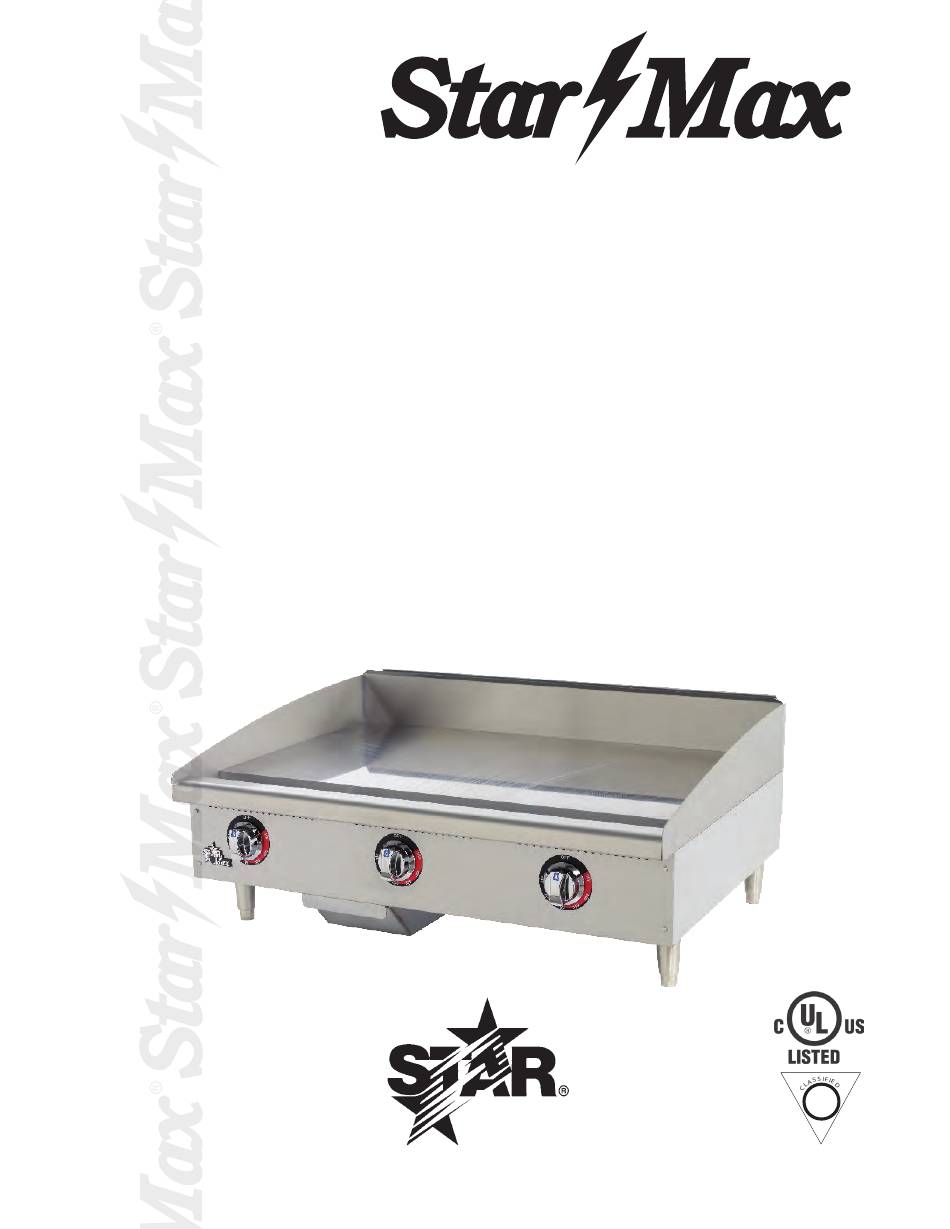

- Page 1 ® ELECTRIC GRIDDLES MODEL 515TGF, 524TGF, 536TGF, 536TGF-PE, 548TGF CHROME-MAX MODEL 524CHSF, 536CHSF, 548CHSF Installation and Operation Instructions 2M-Z16009 Rev. E 06/2019 536TGF ® ANSI/NSF 4...
-
Page 2: Maintenance And Repairs
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. - Page 3 (4) feet which have an adjustment of 1-3/4” (43.75mm) for accurate leveling and perfect line-up with other Star-Max series units. After the griddle is in its final position, adjust the legs to create 1/8 inch slant from back to front on the griddle plate. This will allow grease to run into the grease gutter and provide the proper air flow.
- Page 4 The temperature controls are combination “ON/OFF” switches and thermostats. Turning the dial knob automatically maintains the selected heat range. The Star-Max/Chrome-Max electric griddle line has one thermostat for every 12” (30cm) section of griddle that operates independently of one another. Each thermostat controls the section of the griddle above it and may be set at different temperatures as desired.
- Page 5 Max griddle surfaces are warranted for a period of 5 years against manufacturing defects to the original owner from the date of installation. This limited warranty is void if it is determined by Star Manufacturing International Incorporated or one of its authorized representatives that the chrome surface has been misused or abused or subjected to the following situations: 1.
- Page 6 Star and limitations defined in this warranty, will at Star’s is not liable for any unit which has discretion have the parts replaced or repaired by Star or been mishandled, abused, misapplied, subjected to a Star-authorized service agency.
- Page 7 REVISIONS DATE DESCRIPTION OF CHANGE TOLERANCES UNLESS OTHERWISE NOTED THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. FRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1° NOTE: NOMINAL AMPS PER LINE WIRE...
- Page 8 2-20-03 REVISIONS DATE DESCRIPTION OF CHANGE TOLERANCES UNLESS OTHERWISE NOTED THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. ADDED SINGLE PHASE INFORMATION NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. 4-5-13 FRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1°...
- Page 9 6-9-06 REVISIONS DATE DESCRIPTION OF CHANGE TOLERANCES UNLESS OTHERWISE NOTED THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. FRACTIONS ±1/64 DECIMALS ±.005 ANGLES ±1° HEATING ELEMENT THERMOSTAT PILOT LIGHT...
- Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 524TGF, 524CHSF SK2597 REV. B 9/01/15...
-
Page 11: Parts List
PARTS LIST September 1, 2015, Rev. D Model: 515TGD, 524TGF, 536TGF and 548TGF Star-Max/Chrome-Max Electric Griddles Fig No Part No. Description Application G3-515311 GRIDDLE PLATE STUDDED 515TGF G3-524313 GRIDDLE PLATE STUDDED 524CHSF G3-524314 GRIDDLE PLATE STUDDED 524TGF G3-524315 DIVIDED PLATE ASSEMBLY... - Page 12 PARTS LIST September 1, 2015, Rev. D Model: 515TGD, 524TGF, 536TGF and 548TGF Star-Max/Chrome-Max Electric Griddles Fig No Part No. Description Application G3-624303 SIDE LINER ASSEMBLY RIGHT 2A-Z5942 FOOT G3-Z5905 G3-Z5915 CENTER WALL G3-Z5925 G3-Z5935 G3-Z5997 G3-Z5998 FRONT BOTTOM PANEL...
