Summary of Contents for ZALMAN ZM-MFC3

  • Page 2: Safety Precautions

    ▶ Must be installed on an easily reachable location. grounding prior to use of this instrument. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to extemal causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alternation, repair, improper installation, or improper testing.
  • Page 3 100 - 240V~, 50 / 60Hz, 10A Bypass Output 100 - 240V~, 50 / 60Hz, 10A Output 5V~, 0.03A Components Component Part Name Included ZM-MFC3 (Ampere/Voltage Sensor) CVS Extension Bracket Temperature Sensor C3 Cable Y Cable 4-Pin Cable 3-Pin Cable Bracket Screw (UNC #6-32×6)

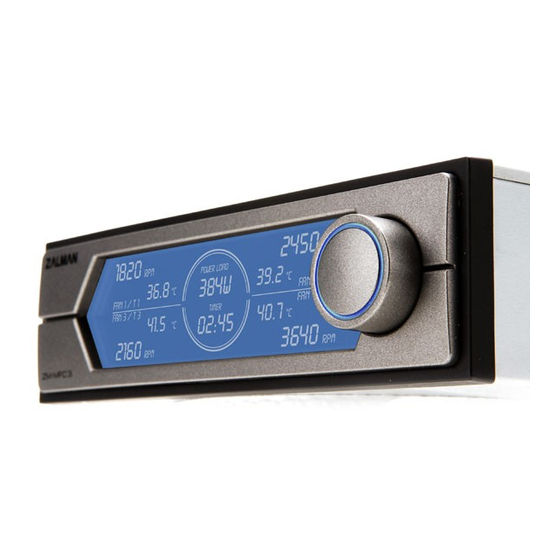

  • Page 4: Front Panel

    Front Panel ① Power Load Meter : Displays Power Load between 10 ~ 999W. Readings of 1 ~ 9W are shown as “Lo” and readings of 1000W+ are shown as “Hi.” ② Timer : Timer shows Computer usage time and resets when Computer is turned OFF. ③...

  • Page 5: Installation

    Installation ZM MFC3 Installation Screw(PWH M3X5) Install the ZM-MFC3 into a 5.25" ODD bay as Turn the computer’ s power OFF and unplug the shown in the diagram. Main Power Cord before installing ZM-MFC3. Connect the components as shown above and use adhesive tape to connect the temperature sensors to...
  • Page 6 C3 Cable Connection The C3 Cable sends the CPU fan's RPM signal to the motherboard to prevent malfunction during booting. 4-Pin CPU Fan Connector Connection to a 4-Pin CPU Fan Header T T i i p p Connection to a 3-Pin ※...

  • Page 7: Y Cable Installation

    4. If a faulty fan is used, noise will interfere with the RPM clock waves and disrupt accurate RPM control. 5. Fans with a specified minimum RPM may repeatedly stop and restart, but this is not a defect of the ZM-MFC3.
  • Page 8 Zalman’s CNPS (Computer Noise Prevention System) Products For a stable and noiseless system of the highest quality, use Zalman’s Ultra Quiet CPU Coolers, Ultra Quiet VGA Coolers, Ultra Quiet Power Supplies, Heatpipe HDD Cooler, Fanless Northbridge Coolers, and Noiseless Case Fans.
